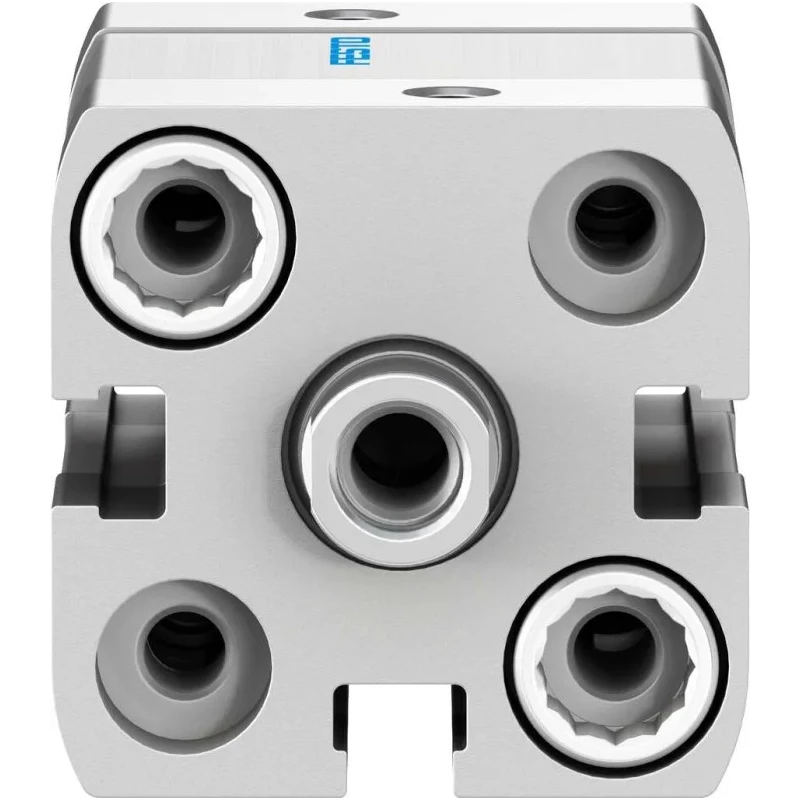

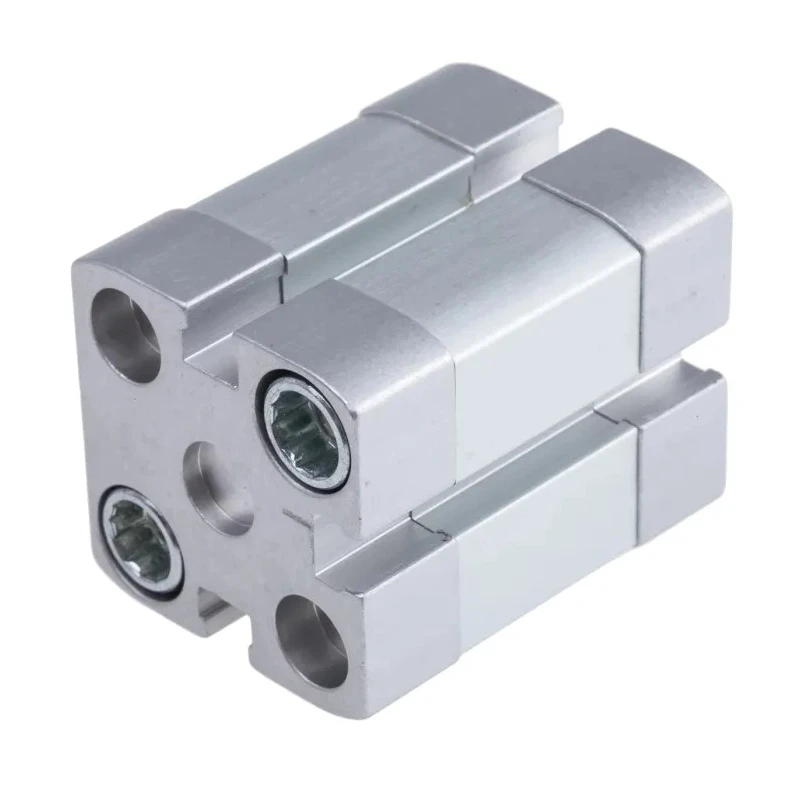

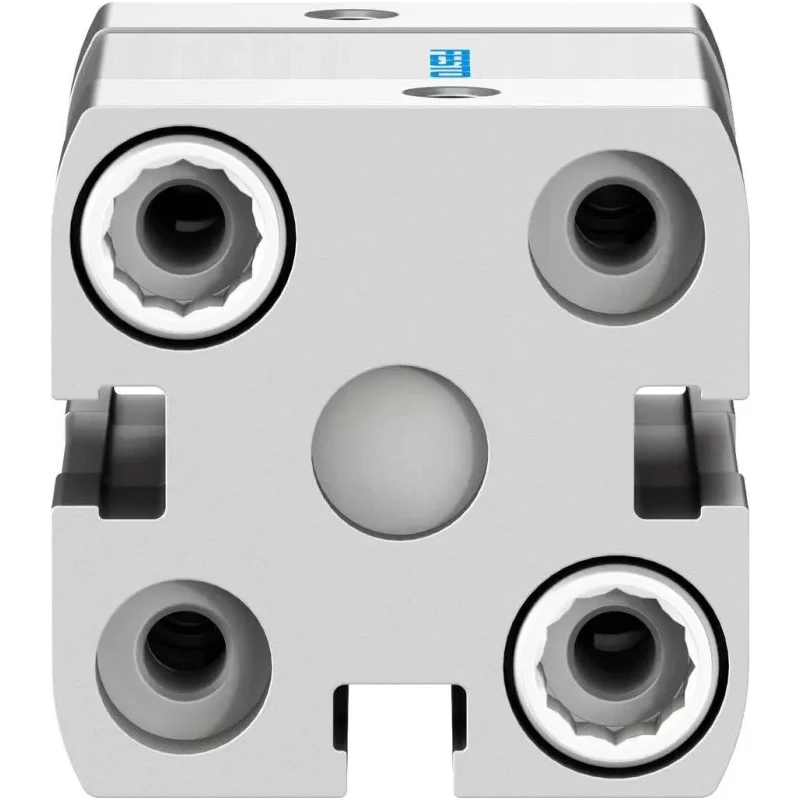

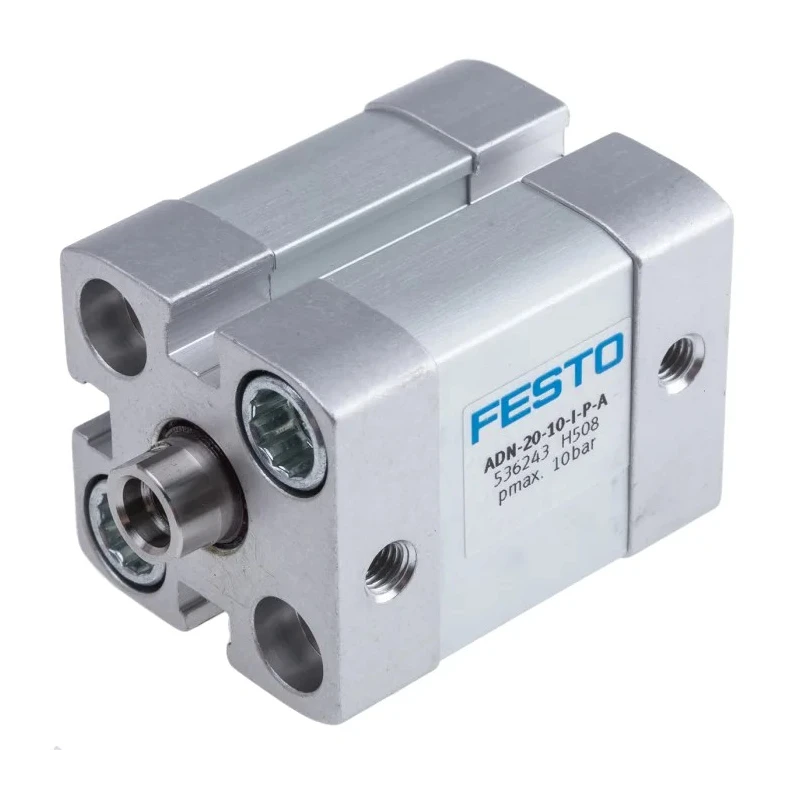

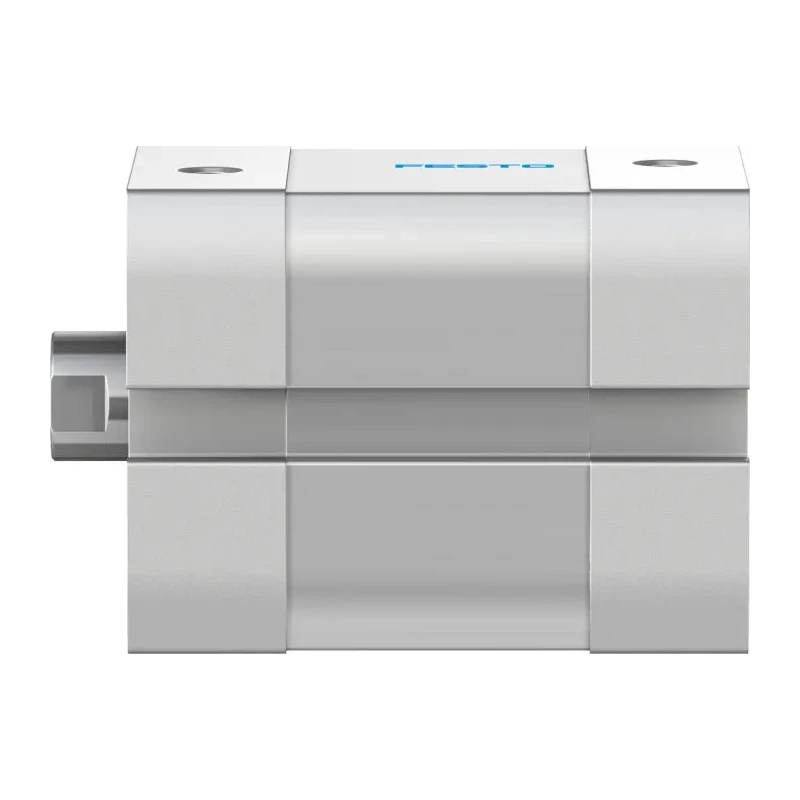

Festo Pneumatic Cylinder Double Acting 20mm Bore, 10mm Stroke, Aluminium Body, Elastic Cushioning ADN-20-10-I-P-A

Festo ADN-20-10-I-P-A pneumatic cylinder is a precision-engineered double acting device designed for linear motion applications requiring reliable and compact actuation. Featuring a 20mm bore diameter and 10mm stroke length, this cylinder is constructed from corrosion-resistant aluminium alloy, ensuring durability even in humid or damp industrial environments. The elastic cushioning integrated into the design reduces stress and wear by softly absorbing impact forces during piston strokes.

The cylinder's dimensions - 35.5mm width, 35.5mm height, and 52.5mm length - make it ideal for installation in compact pneumatic setups. It accepts a female M5 piston rod thread for secure and straightforward mounting. Its single rod type design and double acting operation provide power in both outward and return strokes, making it suitable for a variety of pneumatic control systems.

Designed to operate under a maximum pressure of 10 bar, the cylinder withstands temperatures ranging from -20°C to 80°C, accommodating diverse environmental conditions. The PUR O-rings ensure airtight sealing, maintaining system pressure stability with both clean and lubricated air sources, thus enhancing the versatility of use.

This pneumatic cylinder fulfills stringent industry standards including ISO 21287 and RoHS, affirming its quality and compliance with environmental regulations. Applications include material handling, food production, and automated assembly lines where precise and dependable linear actuation is crucial.

Installation is simplified by the use of the M5 piston rod thread, allowing quick and hassle-free attachment to equipment. Its lightweight design, approximately 131 grams, ensures minimal load impact on machinery and can be integrated easily within automated systems.

Festo's ADN series Pneumatic Cylinders are synonymous with reliability and performance, suitable for industrial, manufacturing, HVAC, and laboratory applications requiring efficient fluid power solutions.

The cylinder operates with a maximum pressure of 10 bar and withstands temperatures ranging from -20°C to 80°C. Compact dimensions of 35.5mm width and height, with a length of 52.5mm, allow integration in tight spaces. Equipped with a single rod type piston, female M5 piston rod thread size for secure mounting.

Elastic cushioning minimizes impact damage for extended service life. Suitable for applications such as material handling, food production, and automated assembly lines. Corrosion-resistant aluminium alloy body ensures longevity in damp environments.

Industry-standard M5 thread pneumatic connection enables easy compatibility with existing pneumatic systems. Compliant with ISO 21287 and RoHS standards for quality assurance. Explore more pneumatic components and accessories at EnvMart for comprehensive fluid power solutions.
