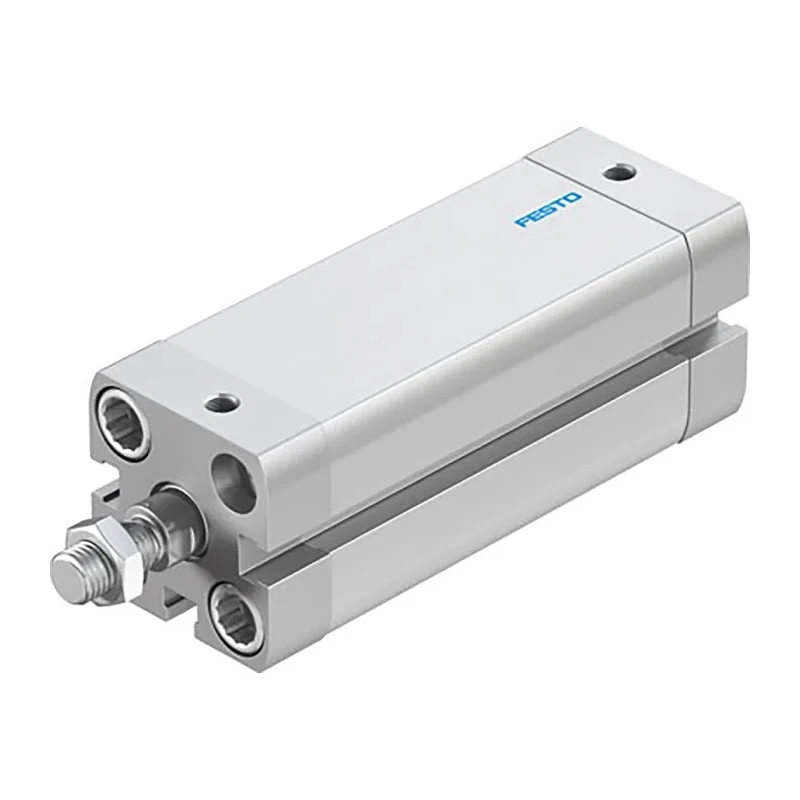

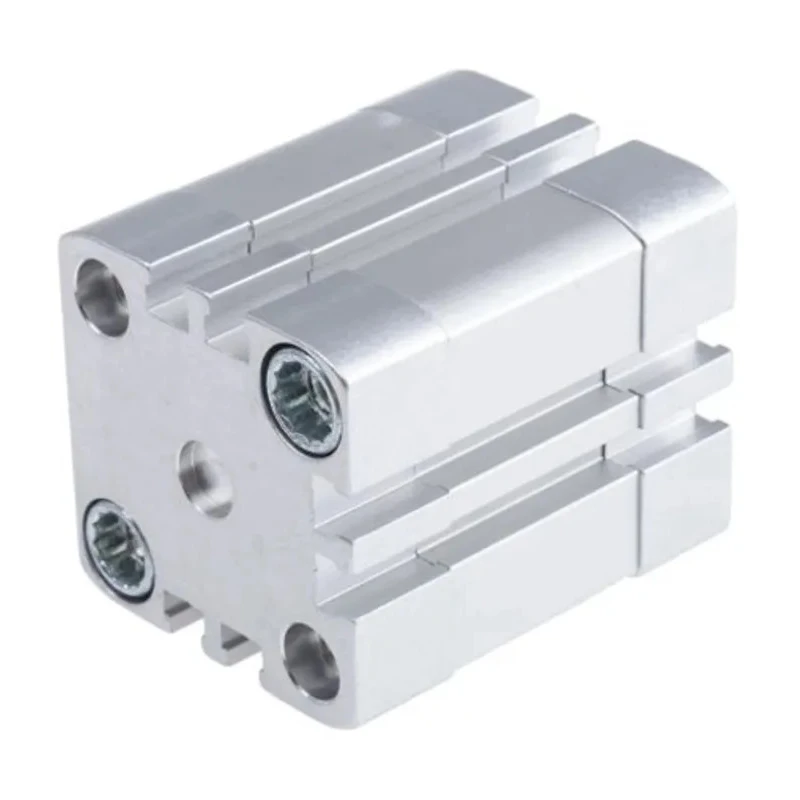

Festo Pneumatic Cylinder Double Acting ADN Series 32mm Bore 20mm Stroke Aluminium Body Through Hole Mount ADN-32-20-A-P-A
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Festo |
| Body Material | Aluminium |
| Maximum Operating Pressure | 10 bar |
| Height | 47mm |
| Length | 70mm |
| Model | ADN-32-20-A-P-A |
| Width | 47mm |
| Mount Type | Through Hole |
| Series | ADN |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -20°C |
| Stroke Length | 20mm |
| Bore Diameter | 32mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Standards/Approvals | ISO 21287, RoHS |
| Cushioning Type | Air Cushioning, Cushioning Rings |
| Piston Rod Gender | Male |
| Piston Rod Thread Size | 1/8 in G |
Key Features
- Complies with ISO 21287 standard for quality and reliability.
- Features air cushioning and cushioning rings for reduced noise and vibration.
- Flexible polymer end cushioning extends service life and improves productivity.
- Equipped with dual connection ports for precise control of piston movement.
- Suitable for industrial automation requiring compact, space-saving pneumatic actuators.
- Operating temperature range from -20°C to 80°C for diverse environments.
- Magnetic piston rod allows contactless position detection with proximity sensors.
- Aluminium body material ensures lightweight durability and corrosion resistance.
Product Description
Festo ADN-32-20-A-P-A pneumatic cylinder is a high-performance double acting actuator featuring a 32mm bore diameter and a 20mm stroke length. Constructed with a durable aluminium body and designed for through hole mounting, this compact cylinder is ideal for applications requiring efficient use of limited space while maintaining robust operation.
Compliant with ISO 21287 standards, the ADN series cylinders incorporate flexible polymer end cushioning and air cushioning rings to reduce operational noise and vibration, thereby extending the cylinder's service life. The dual connection ports enable precise control for advancing and retracting the piston, facilitating smooth linear motion necessary for automated industrial machinery.
The piston rod is magnetic, enabling contactless position detection through proximity sensors mounted in cylinder body slots, allowing for enhanced process control in manufacturing environments. This cylinder operates reliably within a temperature range of -20°C to 80°C, making it suitable for various industrial, construction, and automation applications.
With its lightweight aluminium construction, the cylinder offers excellent durability and corrosion resistance, ideal for both horizontal and vertical mounting setups. Additional mounting accessories such as swivel brackets and foot mounts enhance installation flexibility and adaptability to application demands.
Complies with ISO 21287 standard for quality and reliability. Air cushioning and cushioning rings minimize noise and impact. Magnetic piston rod supports contactless position detection. Aluminium body material provides a lightweight yet durable structure.
Dual ports allow controlled piston movement in both directions. Operates efficiently between -20°C and 80°C temperature range. Suitable for industrial automation, manufacturing, and pneumatic applications. Mountable with various accessories for diverse configurations.
Compact design saves installation space without compromising performance. Single rod type with male thread 1/8 in G supports standard fittings.
Festo ADN Pneumatic Cylinders are designed to boost productivity in confined spaces with reliable and maintenance-free operation. They find broad usage across industrial automation, automotive assembly lines, laboratory equipment, HVAC systems, and fluid power machinery. For comprehensive industrial pneumatic solutions, explore EnvMart's extensive catalogue of Festo pneumatic components and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The bore diameter of this pneumatic cylinder is 32mm.
The stroke length of this model is 20mm.
The maximum operating pressure for this cylinder is 10 bar.
The dimensions of this pneumatic cylinder are 70mm in length, 47mm in height, and 47mm in width.
This model operates efficiently within a temperature range of -20°C to 80°C.
It features air cushioning and cushioning rings to minimize noise and vibration during operation.
The mounting type for this pneumatic cylinder is through hole.
The body material of this cylinder is aluminium, providing lightweight durability and corrosion resistance.
This cylinder uses a double acting action type.
This model complies with ISO 21287 and RoHS standards.
The magnetic piston rod allows for contactless position detection with proximity sensors.
It is suitable for industrial automation, manufacturing, and pneumatic applications, particularly where space is limited.
