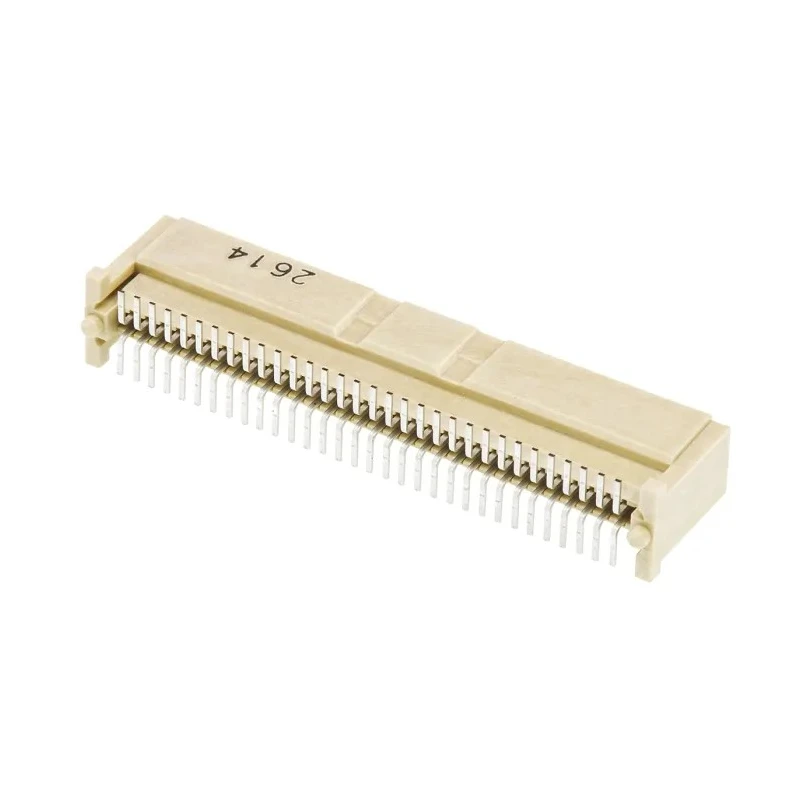

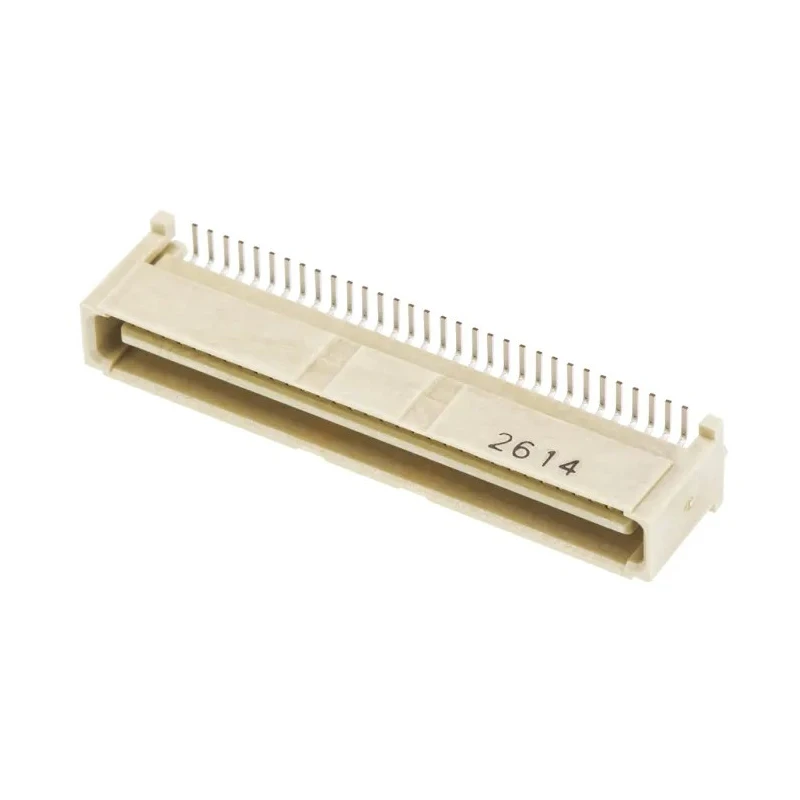

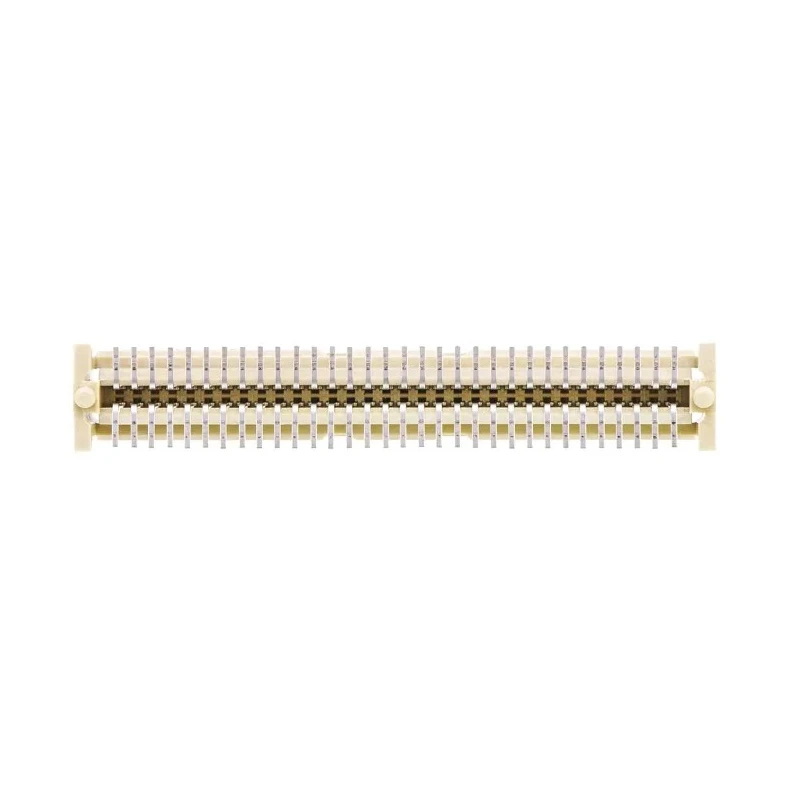

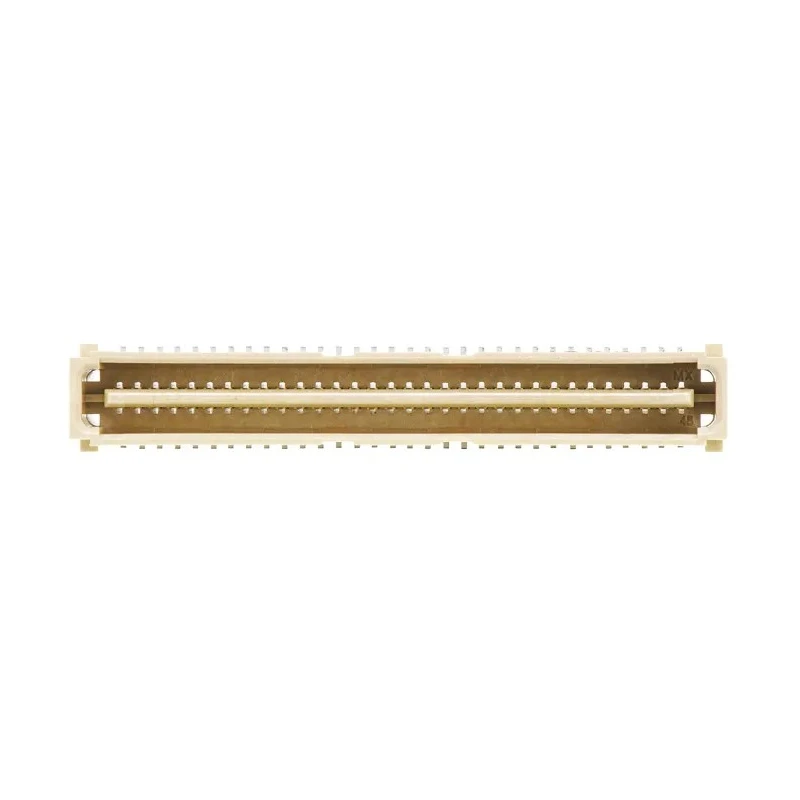

Molex PMC Mezzanine Series Straight Surface PCB Header, 64 Contacts, 1 mm Pitch, 2 Row, Shrouded 71436-2164
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 100V |
| Brand | Molex |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Surface |
| Housing Material | Thermoplastic |
| Contact Material | Phosphor Bronze |
| Series | PMC Mezzanine |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -55°C |
| Interfaces | LAN, WAN, telecommunication, PC and workstation applications |
| Number of Rows | 2 |
| Pitch | 1mm |
| Contact Plating | Gold |
| Number of Contacts | 64 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
| Mated heights | 8 → 15mm (see combination guide) |
Key Features
- Features a durable thermoplastic housing for enhanced heat resistance.
- Contact material is phosphor bronze with gold plating for optimal conductivity.
- Designed for surface mount onto PCBs supporting vertical stacking applications.
- Rated for 1A current and 100V operating voltage.
- Suitable for LAN, WAN, telecommunication, PC, and workstation use.
- Shrouded leaf design helps protect contacts and reduces insertion force.
- Supports mated heights ranging from 8 to 15 mm according to combination guides.
- Operates reliably between -55°C and 85°C ambient temperatures.
Product Description
Molex 71436-2164 PMC Mezzanine Series Straight Surface PCB Header is an advanced, 64-contact, dual row connector designed for vertical stacking surface mount technology applications. Its 1 mm pitch and shrouded profile ensure reliable and secure board-to-board mating in high-density electronic systems.
The header assembly features a robust thermoplastic housing capable of withstanding reflow soldering processes, combined with phosphor bronze contacts plated in gold to guarantee excellent electrical performance and corrosion resistance. Rated at 1 ampere current and a maximum of 100 volts, this header is engineered for a wide range of industrial and commercial electronics.
Its shrouded leaf design minimizes potential damage to delicate contacts and lowers insertion force, contributing to system robustness and ease of maintenance. This product supports vertical stacking PCI and S-bus mezzanine cards compliant with IEEE 1386 standards, making it suitable for critical applications in LAN, WAN, telecommunications, personal computing, and workstation environments.
Designed to operate reliably across a broad temperature range from -55°C to 85°C, the header ensures dependable performance in demanding thermal conditions. It complies as an UL recognized component, meeting stringent safety and quality protocols. Typical mated heights supported range between 8 and 15 mm, guided by combinations outlined in official documentation.
Durable thermoplastic housing compatible with high-temperature solder reflow. Phosphor bronze contacts with gold plating for conductivity and durability. Supports vertical stacking for IEEE 1386 mezzanine cards. Rated for 1 ampere current and 100 volt voltage operation.
Low insertion force due to shrouded leaf design. Wide operating temperature range of -55°C to 85°C. UL recognized component certification. Ideal for LAN, WAN, telecommunication, PC, and workstation applications. Mated heights from 8 to 15 mm as per combination guides.
This Molex PMC Mezzanine Series PCB header is a reliable and essential component for advanced electronic assembly and industrial applications. Explore our extensive Electronics & Electricals category at EnvMart for compatible connectors and electronic components.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header is rated for a current of 1 ampere.
The maximum operating voltage for this model is 100 volts.
The contacts in this PCB header have a pitch of 1 mm.
The housing is made from thermoplastic, while the contacts are made of phosphor bronze with gold plating.
This connector supports mated heights ranging from 8 mm to 15 mm, according to combination guides.
It operates reliably between -55°C and 85°C.
This PCB header is designed for surface mounting.
It is suitable for LAN, WAN, telecommunication, PC, and workstation applications.
The orientation of this PCB header is straight.
This PCB header features 64 contacts.
The shrouded leaf design helps protect contacts and reduces the insertion force.
Yes, this PCB header is a UL recognized component, meeting stringent safety and quality protocols.
