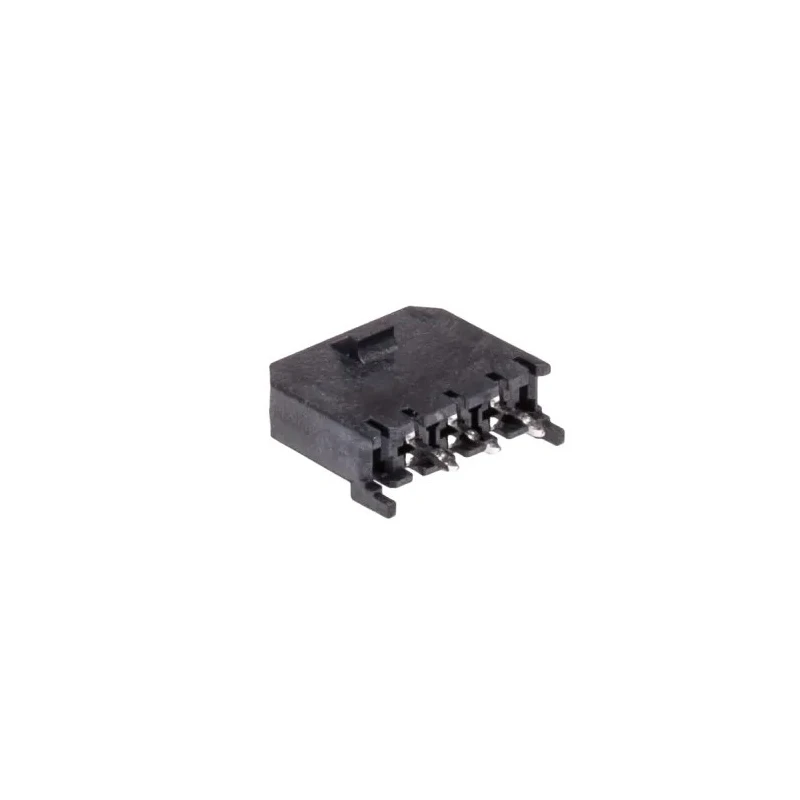

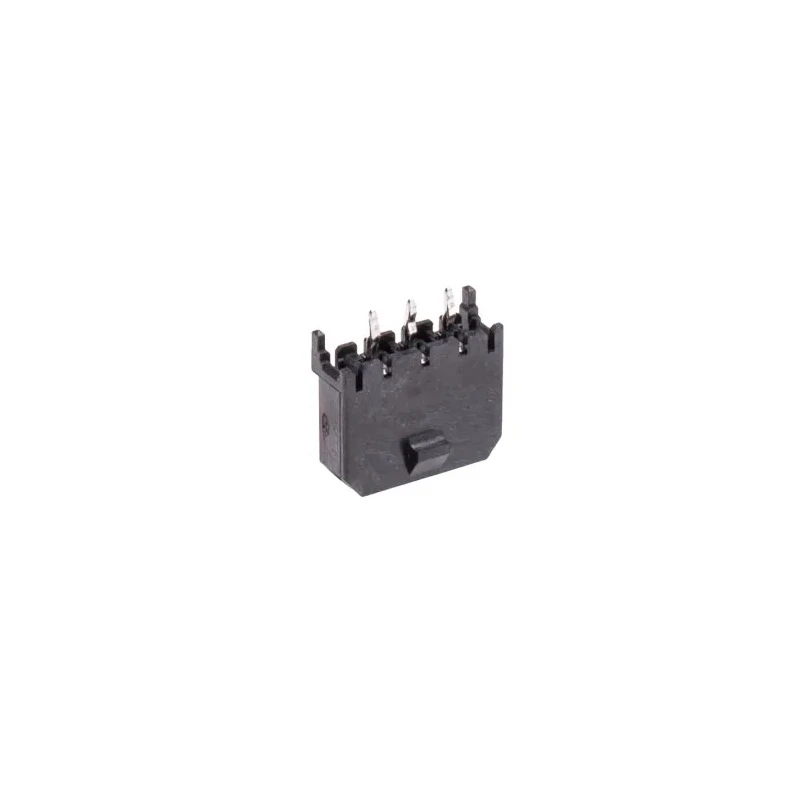

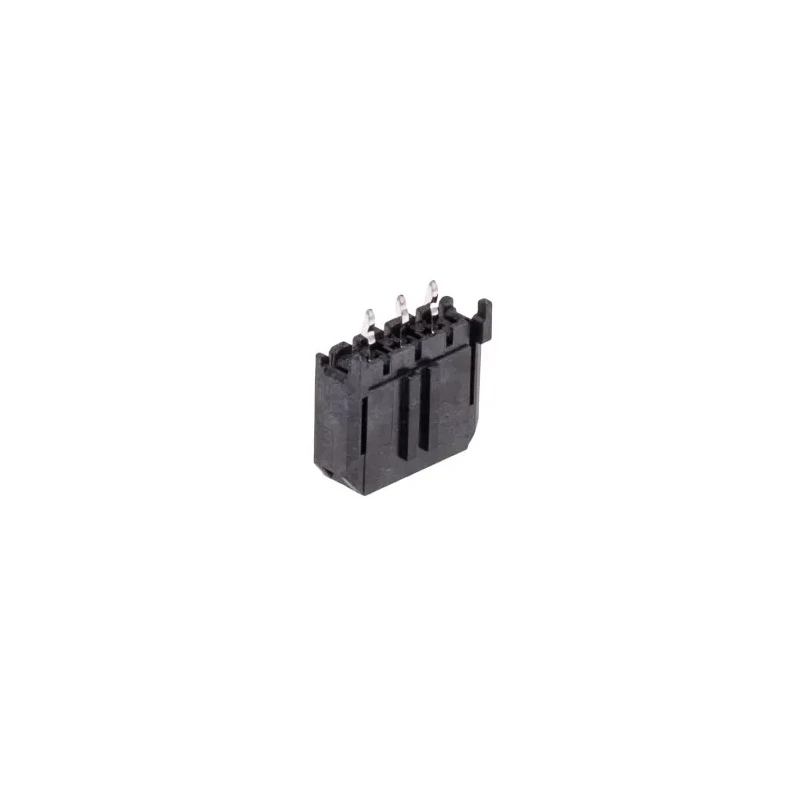

Molex Micro-Fit 3.0 Series Vertical Through Hole PCB Header, 3 Contact(s), 3 mm Pitch, 1 Row, Shrouded 43650-0315

Molex 43650-0315 Micro-Fit 3.0 Series Vertical Through Hole PCB Header is a high-quality wire-to-board connector designed for industrial and electronic applications requiring dependable performance and high current capacity. The 3-contact header features a 3 mm pitch and a shrouded, vertical orientation that offers secure mating and excellent space utilization on PCBs.

This connector supports current ratings up to 8.5A and voltages up to 600V, making it suitable for power distribution boards and various consumer electronic devices. The housing material is high temperature thermoplastic, resistant to thermal stress within the -40°C to 105°C operating range. Tin-plated brass contacts provide reliable electrical connections, enhanced conductivity, and corrosion resistance, ensuring longevity and operational safety.

The through hole mount type allows stable mechanical fixing and simple soldering on printed circuit boards, ideal for automated assembly lines. Rated for up to 30 mating cycles, the connector offers robustness in applications where connections may be frequently engaged and disengaged.

Applications include power distribution in electronic assemblies, automation hardware with limited space, and signal integrity in data communications equipment. The shrouded design adds protective insulation and prevents misalignment during mating.

This PCB header is designed for high current of up to 8.5A to support power distribution. Housing material is high temperature thermoplastic, capable of operating from -40°C to 105°C. Features a shrouded, vertical orientation for secure and compact installation.

Manufactured with tin-plated brass contacts providing durability and corrosion resistance. Through hole mounting provides a robust and reliable solder connection. Rated for 30 mating cycles ensuring long-term mechanical and electrical reliability.

Supports a maximum voltage of 600V for diverse electronic applications. Suitable for consumer electronics, automation systems, and data communication devices.

This Molex Micro-Fit 3.0 Series PCB header represents a comprehensive solution for designers seeking dependable, high-performance connectors for demanding electronic environments. Discover the full range of PCB Headers and connectors available at EnvMart to complement your industrial and manufacturing projects.
