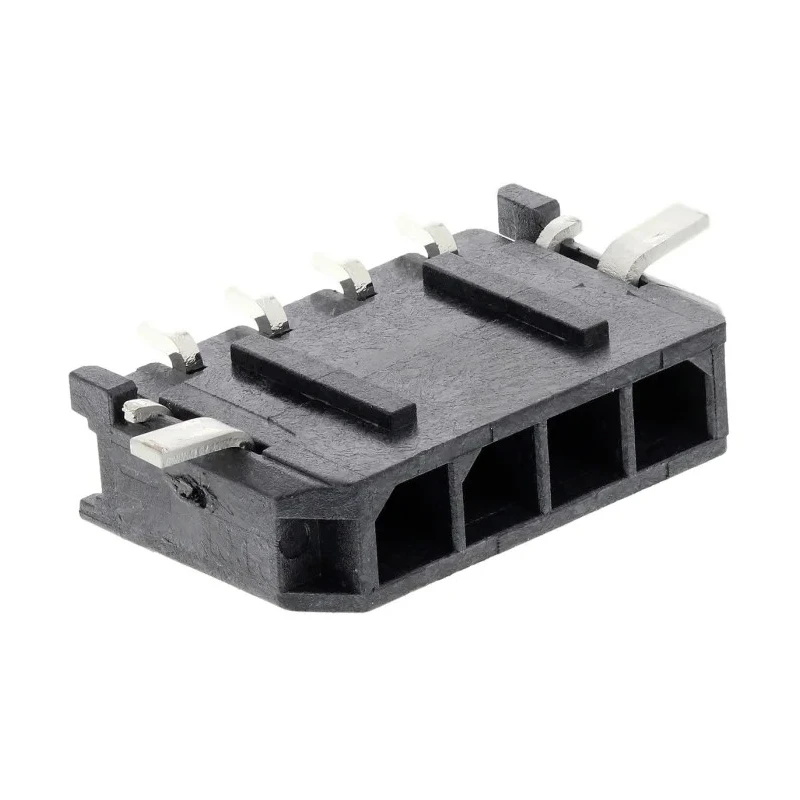

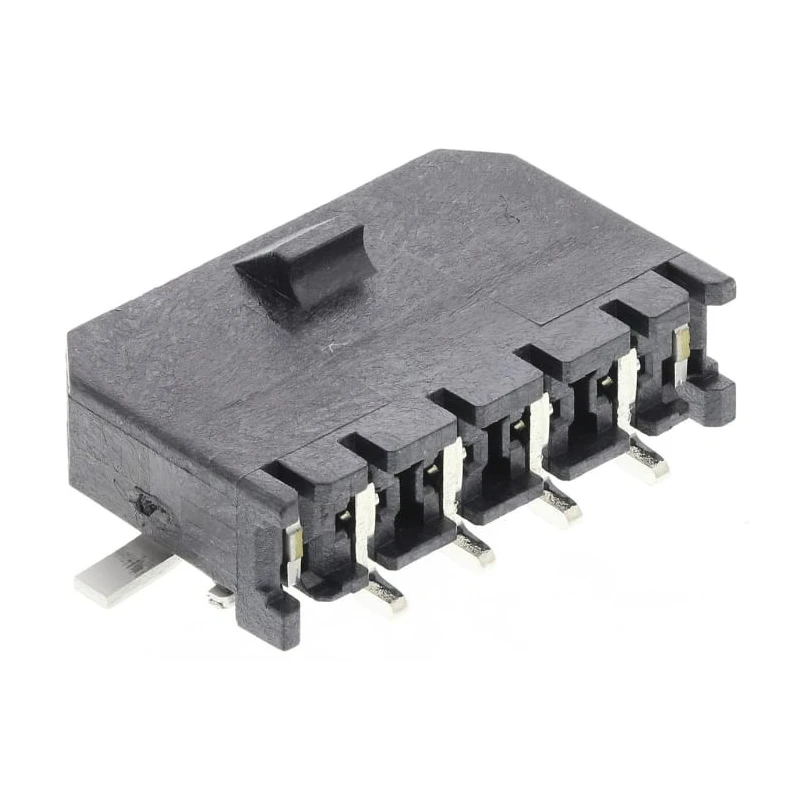

Molex Micro-Fit 3.0 Series Right Angle Surface PCB Header 4 Contacts 3 mm Pitch 1 Row Shrouded 43650-0412

Molex 43650-0412 Micro-Fit 3.0 Series right angle surface PCB header is a high-performance PCB connector designed for low to mid power applications requiring reliable wire-to-board connectivity. This PCB header features 4 male contacts arranged in a single row with a 3 mm pitch. The shrouded thermoplastic housing ensures secure mating, incorporating a locking ramp to prevent accidental disconnection and withstands temperatures up to 265°C during IR reflow soldering.

The brass contacts are tin-plated, providing excellent electrical conductivity and corrosion resistance. This connector supports up to 5 A current at 250 V voltage, making it suitable for compact power distribution tasks while maintaining a small footprint.

Solder tabs integrated into the design ensure robust mounting to the PCB, enhancing the mechanical and electrical connection reliability. The connector operates efficiently over a wide temperature range from -40°C to 105°C, making it adaptable for diverse industrial, telecommunications, consumer electronics, medical, solar power, and military COTS applications.

Molex Micro-Fit 3.0 connectors are recognized for their positive latching mechanism, high current capacity, and compact form factor. This series is Glow Wire compliant and designed to meet demanding environments, supporting applications such as data communication routers, servers, gaming terminals, and various consumer appliances.

Designed for wire-to-board connection with surface mount technology. Constructed with thermoplastic housing for durability and high temperature resistance. Capable of carrying currents up to 5 A at 250 V operating voltage.

Features positive latching for secure mating and prevention of accidental disconnection. Tin-plated brass contacts provide reliable conductivity and corrosion resistance. Solder tabs for secure PCB attachment during soldering process.

Wide operating temperature range from -40°C to 105°C. Compact 3.0 mm pitch supports high current in a small footprint.

This Molex Micro-Fit 3.0 Series PCB header is ideal for industrial, telecommunications, medical, agricultural, consumer electronics, and renewable energy applications that require rugged and reliable miniature power connectors.
