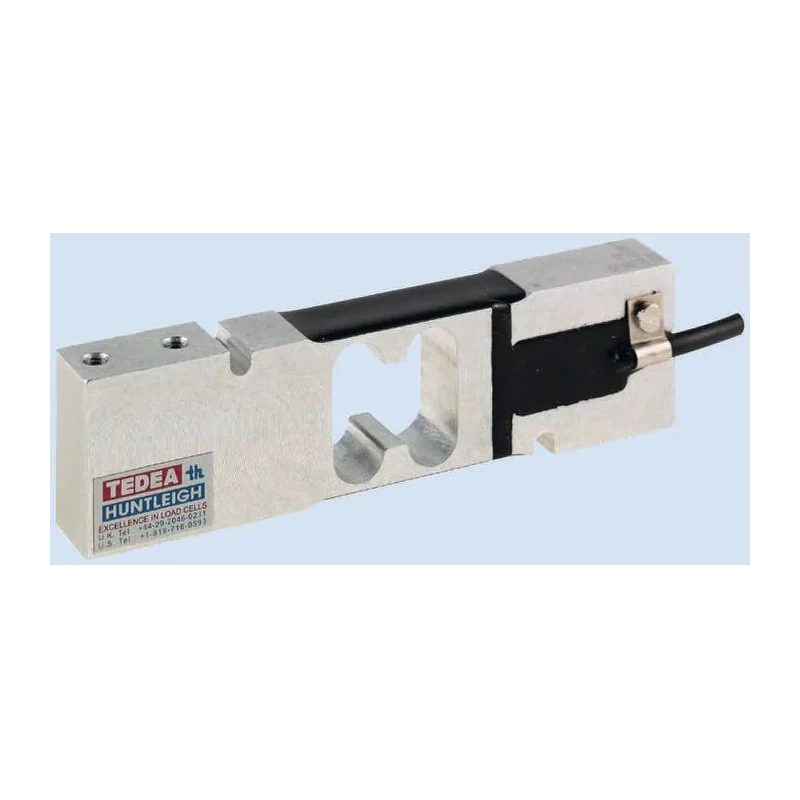

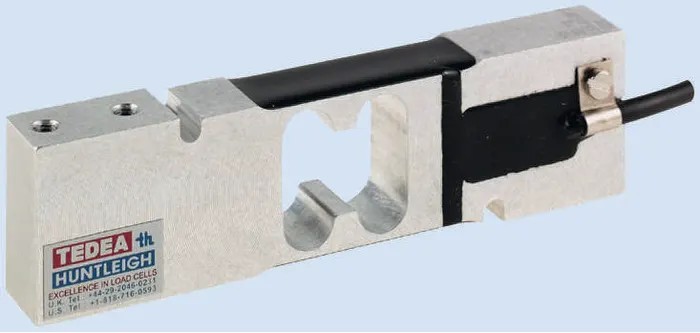

Tedea Huntleigh Single Point Compression Load Cell, 1 kg to 10 kg Range, 415Ω Gauge Resistance, Aluminium 1042-0010-F000-RS

Tedea Huntleigh 1042-0010-F000-RS is a high-precision single point compression load cell engineered for measuring forces from 1 kg up to 10 kg with exceptional accuracy, featuring a gauge resistance of 415Ω. This load cell utilizes a low profile, two-beam design constructed from anodized aluminium to provide strength and corrosion resistance while maintaining a lightweight form factor.

The device supports a mounting footprint suitable for weighing platforms up to 400 x 400 mm, making it ideal for applications such as retail scales, bench scales, and counting scales. It is designed to operate reliably within a temperature range of -10°C to 40°C and holds an IP66 ingress protection rating to safeguard against dust and water, ensuring durability in demanding environments.

Wired terminal connections and hole type mounts facilitate straightforward integration into existing weighing assemblies. Furthermore, the load cell meets internationally recognized standards including OIML and NTEP, confirming its compliance for legal-for-trade and industrial use.

This load cell finds use across industrial, manufacturing, laboratory, and commercial sectors, delivering precise force measurements critical to process control, quality assurance, and equipment calibration tasks.

Constructed from anodized aluminium for durability and corrosion resistance. Features a 415Ω gauge resistance for accurate load measurement. Rated IP66 for protection against dust and water ingress. Suitable for platforms up to 400 x 400 mm.

Operating temperature range -10°C to 40°C. Low profile two-beam design for enhanced performance. Wire terminal and hole mount type ensure secure installation. Complies with OIML and NTEP standards. Explore EnvMart's extensive selection of precision Load Cells and sensors suitable for a range of industrial and laboratory force measurement applications.
