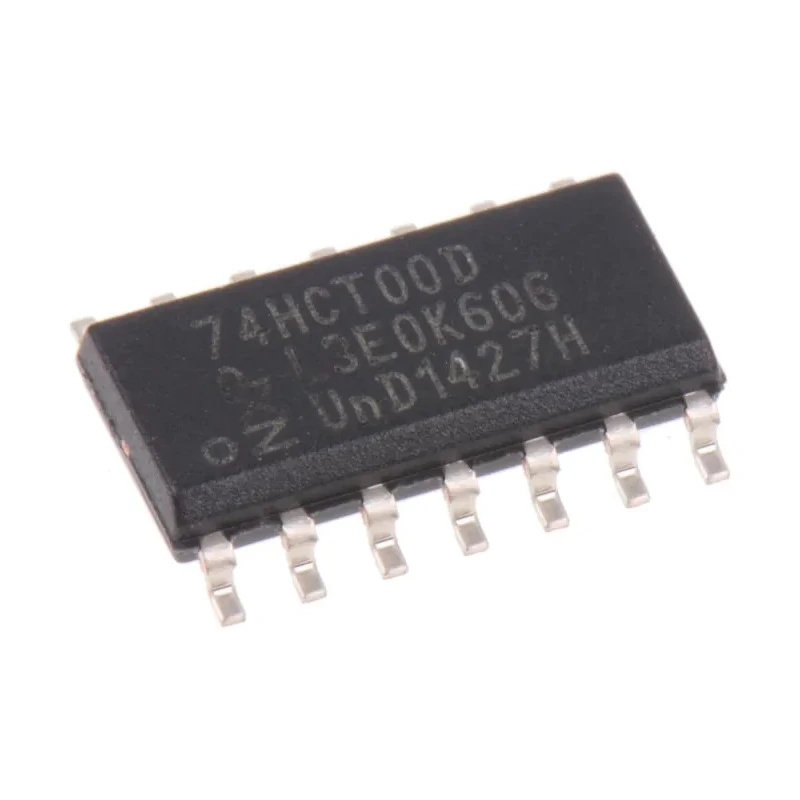

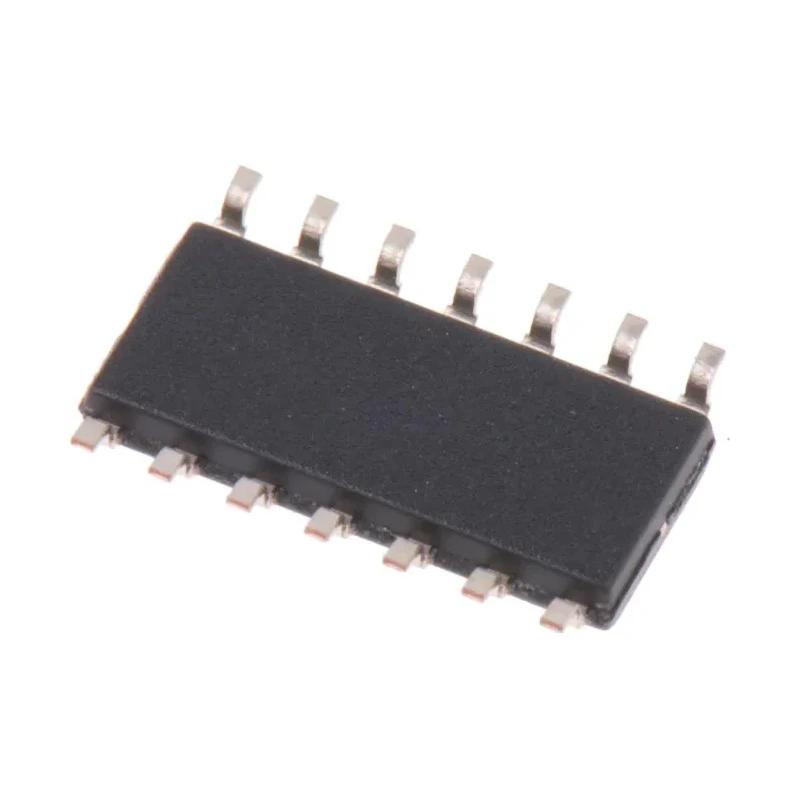

Nexperia 4 2-Input NAND Logic Gate, 14-Pin SOIC 74HCT00D,652

Nexperia 74HCT00D,652 is a quad 4 2-input NAND logic gate IC housed in a 14-pin SOIC package featuring TTL input and HCT logic family.

This logic IC has a maximum propagation delay of 23 nanoseconds at a capacitive load, operating with a supply voltage between 4.5V and 5.5V. It supports a wide temperature range from -40°C to 125°C, suitable for demanding industrial environments.

The device integrates four independent NAND gates, each with two inputs, allowing for compact design and efficient logic circuit implementation. Its surface mount SOIC package aids PCB miniaturization and simplifies routing.

This logic gate is compatible with TTL input levels, which facilitates seamless integration into mixed 3.3V and 5V applications. It is ideal for industrial control systems, computing, cell phones, and other digital electronic designs requiring reliable NAND logic functionality.

The IC provides low propagation delay for fast switching. Features wide supply voltage tolerance from 4.5V to 5.5V. Possesses robustness for operation between -40°C and 125°C. Compact 14-pin SOIC package aids space-saving PCB layouts.

Designed specifically for industrial, computing, and telecom applications. Manufactured in Thailand to meet stringent quality standards. This product is a fundamental building block useful in digital logic circuits and electronic control systems.

For more designs and components in Logic Gates, explore our Electronics & Electricals Semiconductor category at EnvMart.
