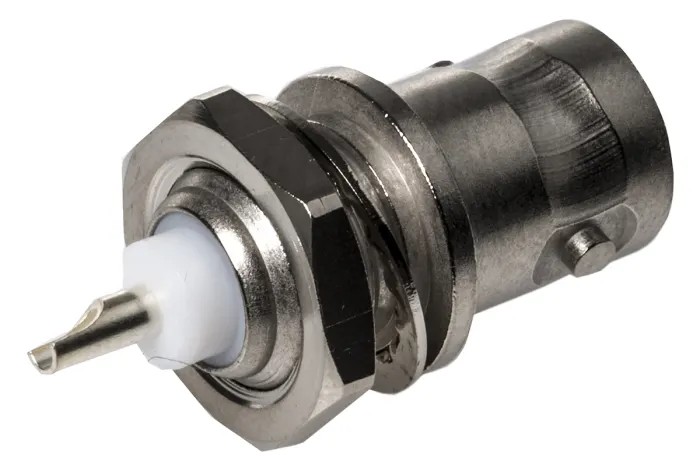

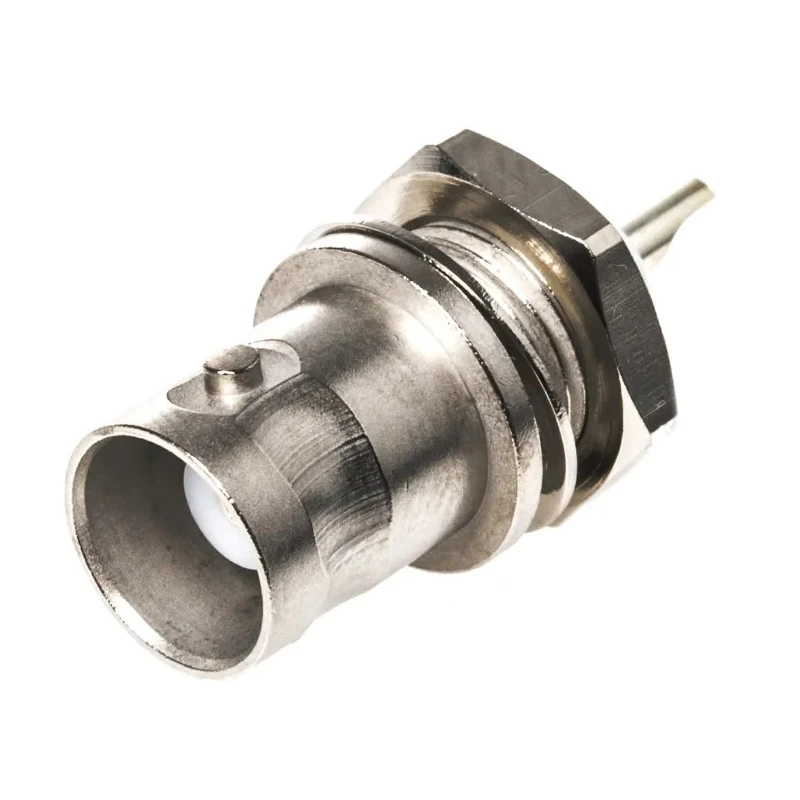

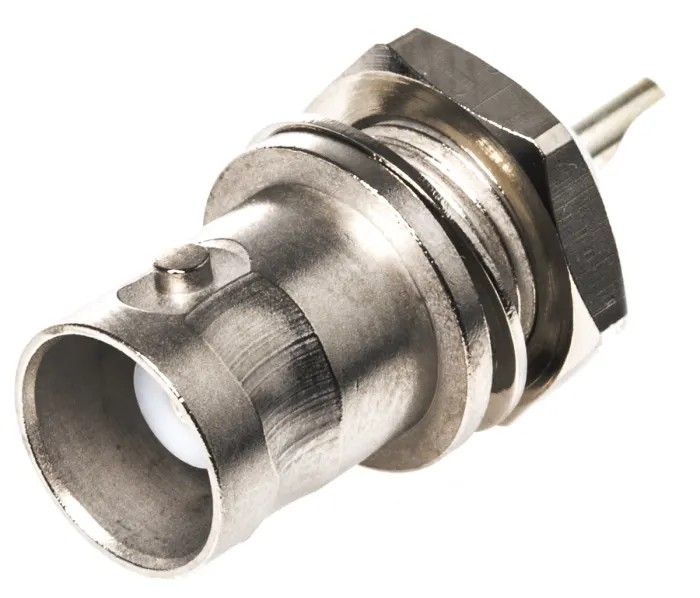

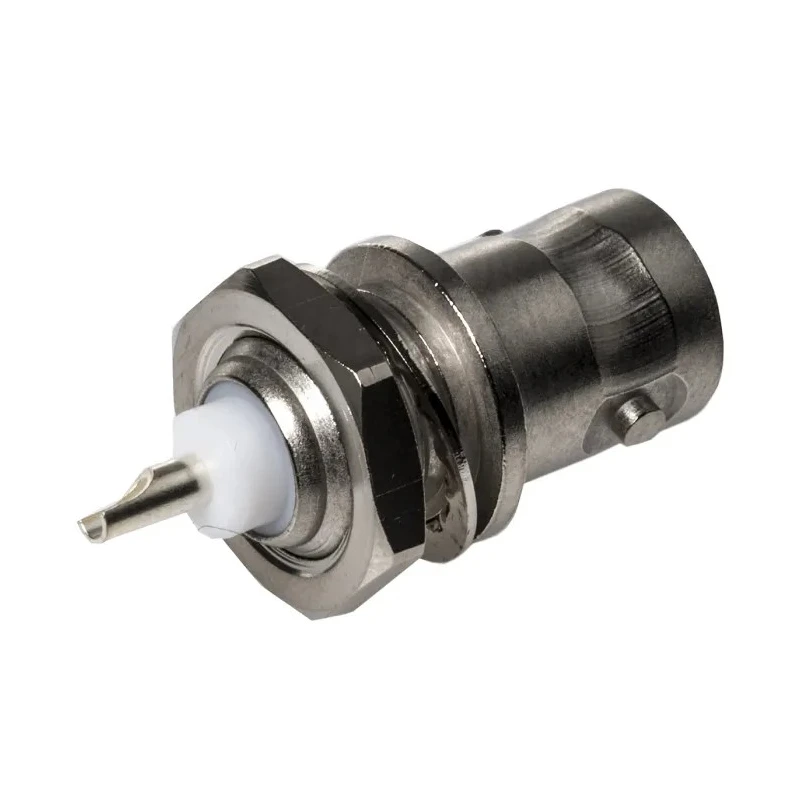

Telegartner BNC Series 50 Ω Panel Mount Female Coaxial Connector, Straight Body Solder J01001B0615
Specifications
| Country of Origin | Germany |
|---|---|
| Size | Standard |
| Brand | Telegartner |
| Orientation | Straight |
| Model | J01001B0615 |
| Mount Type | Panel Mount |
| Operating Frequency | 4GHz |
| Contact Material | Beryllium Copper |
| Series | BNC |
| Termination Type | Solder |
| Maximum Operating Temperature | 165°C |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Silver |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | BNC |
| Body Plating | Nickel |
Key Features
- Designed for 50 ohm impedance applications ensuring signal integrity.
- Panel mount type with a standard size for versatile installation.
- Constructed with nickel-plated body for enhanced durability and corrosion resistance.
- Beryllium copper contact with silver plating provides excellent conductivity.
- Operates at frequencies up to 4 GHz for high-frequency signal transmission.
- Temperature range from -65°C to 165°C suitable for diverse environments.
- Equipped with a PTFE insulator and gold plated center contact for optimum performance.
- Features bayonet coupling with solder termination for secure connections.
Product Description
Telegartner J01001B0615 BNC Series 50 Ω Panel Mount Female Coaxial Connector is engineered for robust RF signal transmission in industrial, laboratory, and telecommunications applications. Featuring a straight body design with a solder termination, this connector ensures reliable and stable connections in demanding environments.
Manufactured with a nickel-plated body, it offers excellent corrosion resistance and mechanical strength. The beryllium copper contacts with silver plating support superior electrical conductivity, while the gold-plated center contact enhances contact reliability.
Operating in frequencies up to 4 GHz, this connector is ideal for high-frequency applications across communication systems, instrumentation, and test equipment. The mounting style is panel mount with a standard size bulkhead design, facilitating easy installation into panels and enclosures.
The connector functions reliably over a wide temperature range from -65°C to 165°C, suitable for harsh industrial and outdoor environments. It incorporates a PTFE insulator to maintain signal integrity and minimize losses.
Key features include the bayonet coupling mechanism for quick and secure mating, normal polarity, and a female contact gender, aligning with standard BNC series specifications. Designed for 50 ohm impedance ensuring optimal signal fidelity.
Nickel-plated body for durability and environmental resistance. Beryllium copper contacts with silver plating for superior conductivity. Gold plated center contact for improved connection reliability. High-frequency operation up to 4 GHz.
Wide operating temperature range for versatile applications. Solder termination for secure and stable connections. Panel mount bulkhead socket suitable for various mounting needs.
This Telegartner Coaxial Connector is made in Germany, reflecting high manufacturing standards and precision engineering. It is well suited for use in electronics components, power connectors, measurement equipment, and communication systems in industrial, laboratory, and commercial settings.
Explore our Electronics & Electricals category to find additional high-quality connectors from leading brands like Telegartner on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Telegartner BNC Series connector operates at frequencies up to 4 GHz, making it suitable for high-frequency signal transmission applications.
This model is designed for a 50 ohm impedance, ensuring optimal signal fidelity in applications.
It operates reliably within a temperature range from -65°C to 165°C, suitable for diverse environments.
The connector features a nickel-plated body for corrosion resistance, beryllium copper contacts with silver plating for conductivity, and a PTFE insulator for signal integrity.
This model uses a solder termination type, providing secure and stable connections.
It is a panel mount type, designed for easy installation into panels and enclosures with a standard size bulkhead design.
The connector has a female contact gender, aligning with standard BNC series specifications.
This model features a straight body orientation, suitable for various installation needs.
The Telegartner BNC Series connector is made in Germany, reflecting high manufacturing standards.
The contacts are plated with silver, which supports superior electrical conductivity.
It is engineered for robust RF signal transmission in industrial, laboratory, and telecommunications applications.
The bayonet coupling mechanism allows for quick and secure mating, enhancing connection reliability.
