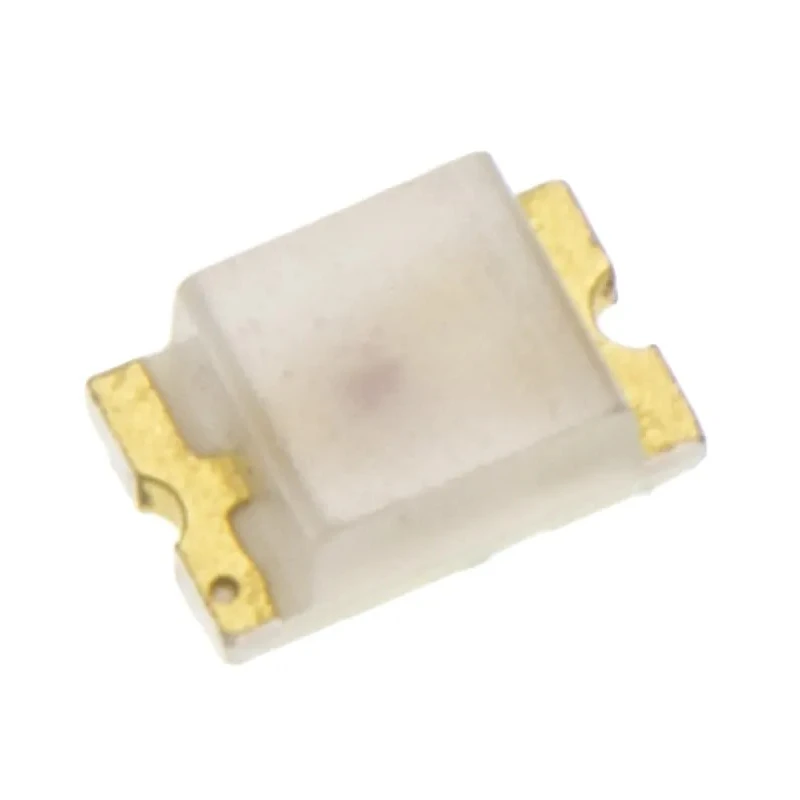

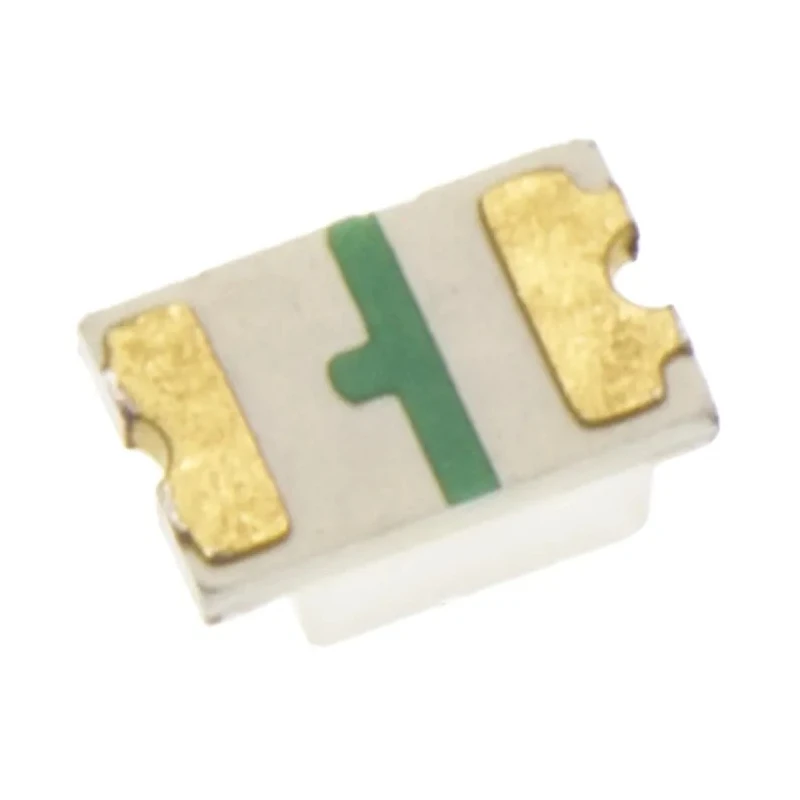

Broadcom 2.2 V 52 mW Green LED Standard Surface Chip LED HSMG-C170

Broadcom HSMG-C170 is a new Standard Surface Chip LED featuring a green light emission with a dominant wavelength of 572 nm, operating at 2.2 V forward voltage and consuming a maximum power of 52 mW. It is designed as a compact surface-mount indicator suited for low-power visual signalling applications.

The device accepts a maximum forward current of 20 mA, delivering a luminous intensity of 15 mcd, which ensures clear and energy-efficient illumination for consumer electronics, control panels, and instrumentation.

This LED features a diffused, untinted clear rectangular lens with dimensions of 2 x 1.25 x 0.8 mm, providing a wide 170° viewing angle that allows broad visibility coverage. The standard surface mount package with two electrical pins facilitates easy PCB soldering and integration into SMD assemblies with small footprint requirements.

The HSMG-C170 is RoHS compliant, ensuring it meets environmental safety standards by limiting hazardous substances, making it suitable for industrial, commercial, and consumer electronics manufacturing.

It is ideal for use in status indicators, panel signalling, and visual alerts in various equipment and LED arrays requiring wide viewing angles. The device is supplied in tape and reel packaging, enabling automated pick-and-place assembly in manufacturing processes.

Green LED with 572 nm dominant wavelength for yellow-green light emission. Maximum forward current of 20 mA for efficient and clear illumination. Standard surface mount package with two pins for PCB soldering. Diffused, untinted clear rectangular lens with 170° wide viewing angle.

Produces 15 mcd luminous intensity for visible indication. Compact lens dimensions 2 x 1.25 x 0.8 mm for small footprint. RoHS Compliant to meet environmental protection requirements. Explore more LED components and advanced optoelectronics products from top brands at EnvMart.
