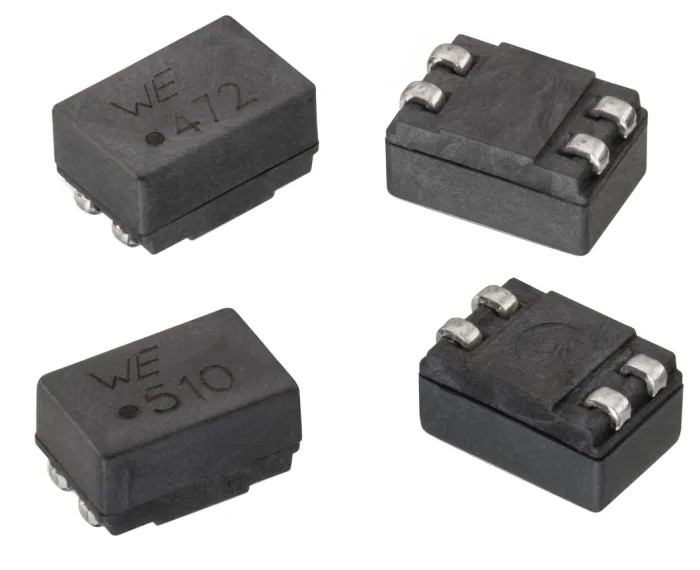

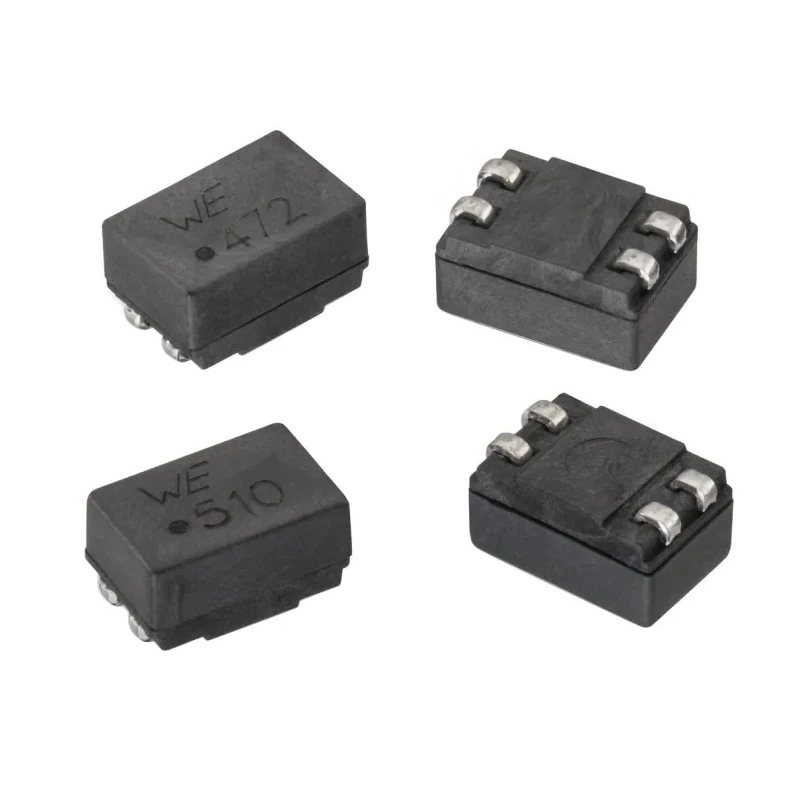

Wurth Elektronik WE-SL2 Shielded Wirewound Surface Mount Inductor with Ferrite Core 4.7 mH ±50% 500 mA 744220

Wurth Elektronik 744220 WE-SL2 shielded wirewound surface mount inductor features a ferrite core delivering 4.7 mH inductance with a broad ±50% tolerance. Designed as a dual inductor construction, this component supports a maximum DC current of 500 mA, making it suitable for power supply systems and signal line applications.

This inductor is optimized for surface mount technology, featuring four pins and compact dimensions of 9.2 mm length, 5 mm height, and 6 mm depth. Its core material, ferrite, along with shielding, effectively suppresses common mode noise, improving performance in sensitive electronic circuits.

Engineered to meet the AEC-Q200 automotive standard, the 744220 inductor operates reliably across a wide temperature range from -40°C to 125°C. The maximum DC resistance is maintained at 750 mΩ to ensure minimal energy loss. Additionally, it supports a maximum self-resonant frequency of 100 kHz and is moulded for durability.

Packaged in tape and reel format, this inductor is compatible with automated manufacturing processes and the recommended solder profile is reflow. Compliance with industry standards such as RoHS, REACH, JEDEC JS709B, and IEC 61249-2-21 guarantees environmental safety and quality reliability.

Applications include use in power supply filtering, signal processing, CAN bus suppression, and sensor line noise reduction in industrial, automotive, communication, and electronic manufacturing sectors.

This Wurth Elektronik inductor is an essential component for engineers and designers requiring stable inductance with shielding for noise suppression in surface mount assembly. Constructed with a ferrite core for efficient magnetic performance.

Surface mount termination style suitable for PCB assembly. Features AEC-Q200 automotive standard compliance ensuring reliability. Shielded design reduces interference and maintains signal integrity. Operating temperature range from -40°C to 125°C for varied environments.

Compact dimensions: length 9.2 mm, height 5 mm, depth 6 mm. Maximum DC resistance of 750 mΩ to minimize power loss. Packaged in tape and reel format for automated handling. Recommended solder profile is reflow for assembly processes.

Meets standards RoHS, REACH, JEDEC JS709B, IEC 61249-2-21 for quality assurance. Explore more Wurth Elektronik products and Surface Mount Inductors through EnvMart's comprehensive catalog for electronic components and passive solutions.
