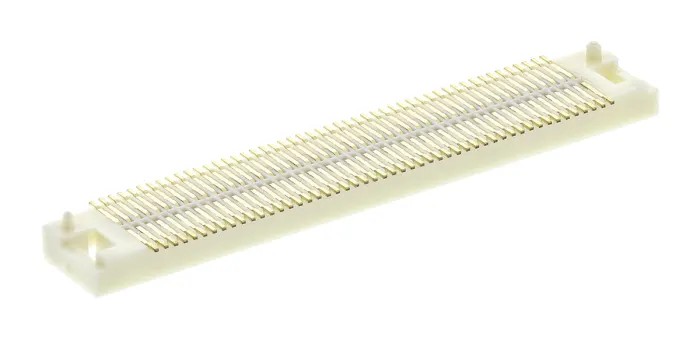

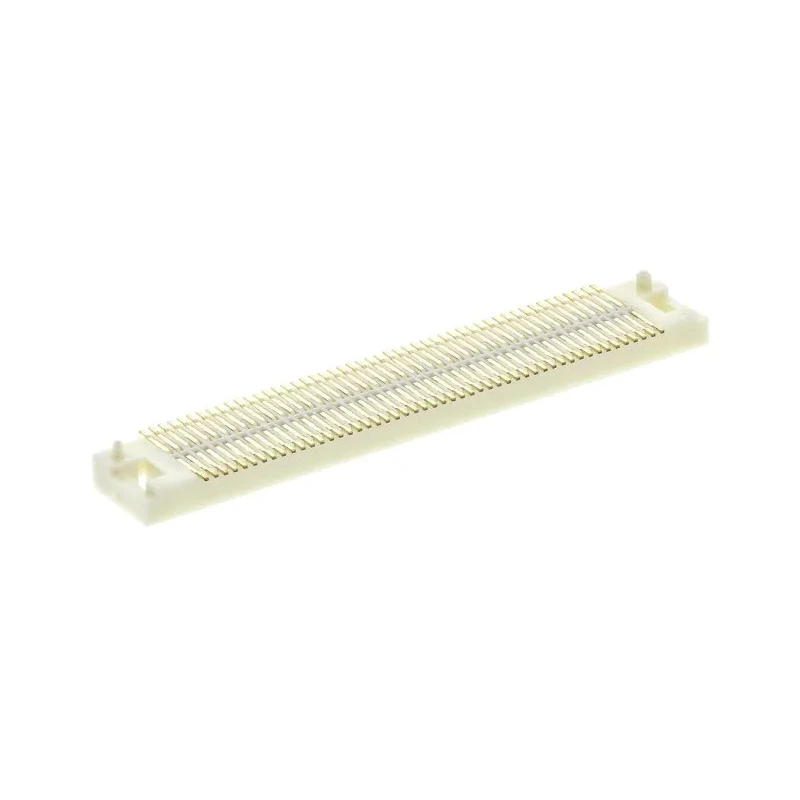

Hirose FunctionMAX FX8 Series Straight Surface PCB Socket, 100-Contact, 1 Row, 0.6 mm Pitch Solder FX8-100S-SV(22)

Hirose FX8-100S-SV(22) FunctionMAX FX8 Series Straight Surface PCB Socket is a specialized board-to-board connector, featuring a 100-contact count with 1 row and a 0.6 mm pitch solder termination. Designed for high-speed transmission up to 3.125 Gbit/s, it ensures exceptional signal integrity for demanding electronic applications.

This connector incorporates built-in mating guide ribs that accommodate a self-alignment tolerance of +/- 0.6 mm, easing the mating process and providing design flexibility. The connector's housing is made from durable polyphenylene sulphide material with a compact stacking height of 16 mm. Brushed bronze contacts plated in gold grant superior electrical performance and reliability.

The FunctionMAX FX8 PCB socket supports a current of 400 mA and withstands voltages up to 100 V while operating efficiently within a temperature range of -55°C to 85°C. The contacts feature an optimized spring deflection design, enhancing contact reliability during prolonged use.

Engineering applications for this PCB socket include servers, broadcast equipment, industrial devices, medical instruments, and POS terminals where reliable, high-speed connections on PCBs are critical.

These connectors provide SMT coplanarity and guide posts for precise alignment on the PCB, preventing misinsertion and ensuring production consistency. The FunctionMAX series reflects Hirose's commitment to offering high-performance and flexible board-to-board connection solutions in advanced electronic and industrial environments.

Supports a high-speed transmission rate of 3.125 Gbit/s providing excellent signal integrity. Includes built-in guide ribs allowing a +/- 0.6 mm misalignment for easy mating. Features a solder termination type with a polyphenylene sulphide housing for robust durability.

Designed for 1 row configuration with 100 bronze contacts plated with gold ensuring optimal conductivity. Compact stacking height of 16 mm suitable for advanced PCB layouts and applications. Operates safely within a voltage of 100 V and current rating of 400 mA.

Meets operating temperature range from -55°C to 85°C for harsh environmental tolerance. Includes a contact spring deflection design for enhanced contact reliability. Ideal for industrial equipment, medical devices, broadcast equipment, and POS terminals.
