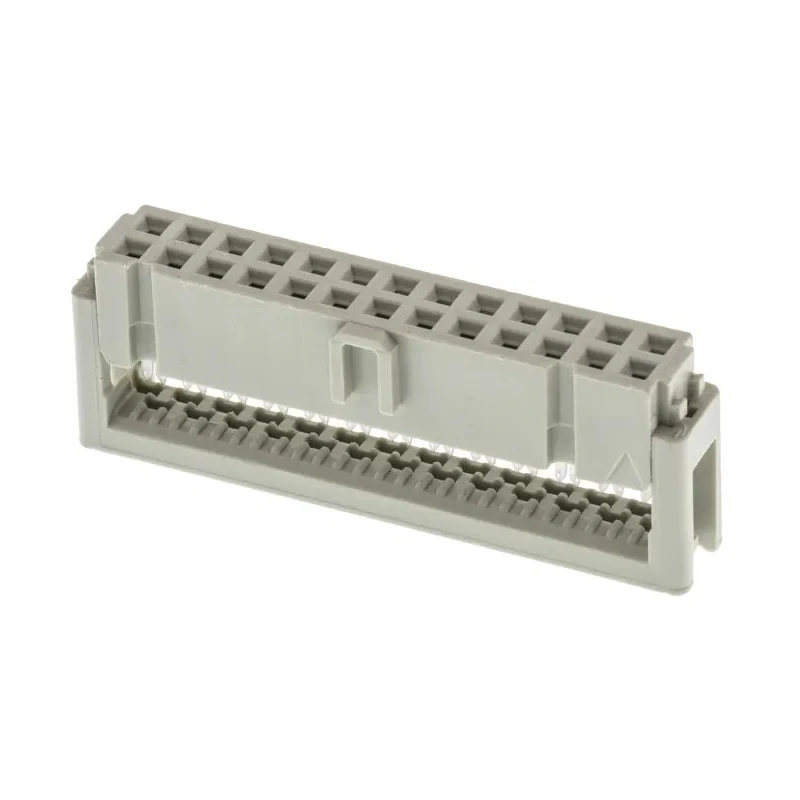

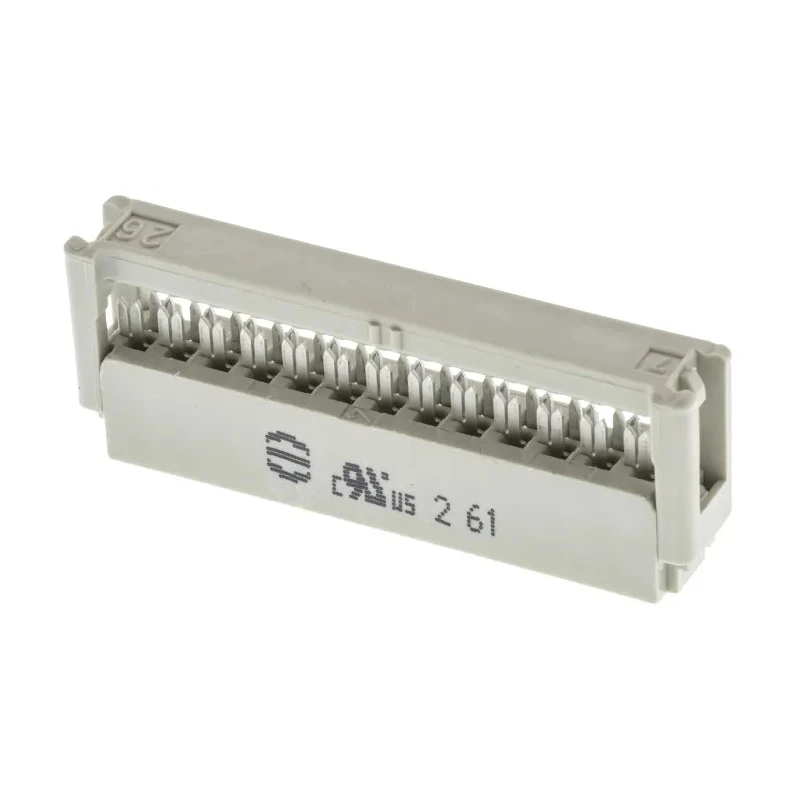

HARTING 26-Way IDC Connector Female for Cable, 2 Row 09185266803

HARTING 09185266803 26-Way IDC Connector Female for Cable, 2 Row is a high-quality electrical connector designed to provide secure and reliable connections in electronic and industrial applications. Featuring 26 contacts arranged in 2 rows with a 2.54mm pitch, this connector ensures precise and stable signal or power transmission.

The connector is female and shrouded, providing protection to the contacts and preventing accidental disconnections. It is designed for cable mounting with a right-angle orientation, allowing for flexible and compact assembly in restricted spaces.

Electrical specifications include a current rating of 2.5A and a voltage rating of 320V AC, making it suitable for low to moderate power applications. The contacts are gold plated copper alloy, ensuring excellent conductivity and corrosion resistance. The robust polybutylene terephthalate housing supports operation in harsh conditions with a temperature range from -55°C up to 125°C.

Termination is achieved using insulation displacement connection (IDC) technology, facilitating quick and reliable cable termination without the need for stripping wires. This product is part of the SEK 18 series and complies with multiple standards such as DIN41651, IEC 603-13, UL E102079, CSA 98267, and MIL-C 83503. These certifications validate its suitability for industrial, manufacturing, and electronics sectors.

This connector is commonly used in PCB connector assemblies, power distribution, and electronic component interconnections. Its secure connections and durable materials make it ideal for applications in automation, control systems, and embedded electronics.

This IDC Connector is female and shrouded for secure mating. Designed with a right-angle cable mount orientation for flexible installation. Supports a current rating of 2.5A and voltage of 320V AC. Operating temperature ranges from -55°C to 125°C, suitable for harsh environments.

The contacts are gold plated and made of copper alloy for excellent conductivity. Housing is made from durable polybutylene terephthalate material. Termination is via insulation displacement (IDC) for efficient wiring. Series designation is SEK 18, suitable for industrial applications.

This connector meets multiple international standards including DIN41651 and IEC 603-13. It is ideal for electronic components, power connectors, and PCB connector applications. Explore the Electronics & Electricals category on EnvMart for more connectors and related components from leading brands like HARTING.
