Block 2 Output 250 VA Chassis Mount Transformer, 2 x 12 V AC, 208-600 V AC Input, cUL, VDE, UL USTE250/2X12

Free Delivery in India | Lowest Global Shipping Charges

Block 2 Output 250 VA Chassis Mount Transformer, 2 x 12 V AC, 208-600 V AC Input, cUL, VDE, UL USTE250/2X12

Name: Block 2 Output 250 VA Chassis Mount Transformer, 2 x 12 V AC, 208-600 V AC Input, cUL, VDE, UL USTE250/2X12
Brand: Block
SKU: 184532
Price: 181.39 USD
Availability: InStock



Category Chassis Mount Transformer Brand Block Condition New

Specifications

Country of Origin	Germany
Brand	Block
Length	96mm
Model	USTE250/2X12
Depth	102mm
Gross Weight	3.6kg
Width	96mm
Maximum Operating Temperature	40°C
Number of outputs	2
Standards/Approvals	cUL, VDE, UL
Primary Voltage	208 V ac, 230 V ac, 380 V ac, 400 V ac, 415 V ac, 440 V ac, 460 V ac, 480 V ac, 500 V ac, 525 V ac, 550 V ac, 575 V ac, 600 V ac
Secondary Voltage	2 x 12 V ac
Minimum Operating Frequency	50Hz
Maximum Operating Frequency	60Hz

Key Features

This transformer has two AC output voltages of 12 V each.
Built for safe isolation and control use with cUL, VDE, and UL certifications.
Designed to operate continuously at up to 40°C maximum temperature.
Operates in frequency range between 50 Hz and 60 Hz.
Compact chassis mount design with dimensions approx. 96 mm x 102 mm x 96 mm (L x D x W).
Weighs approximately 3.6 kg for robust industrial usage.
Vacuum resin impregnated for enhanced electrical insulation and durability.
Suitable for worldwide voltage compatibility from 208 V to 600 V AC input.

Product Description

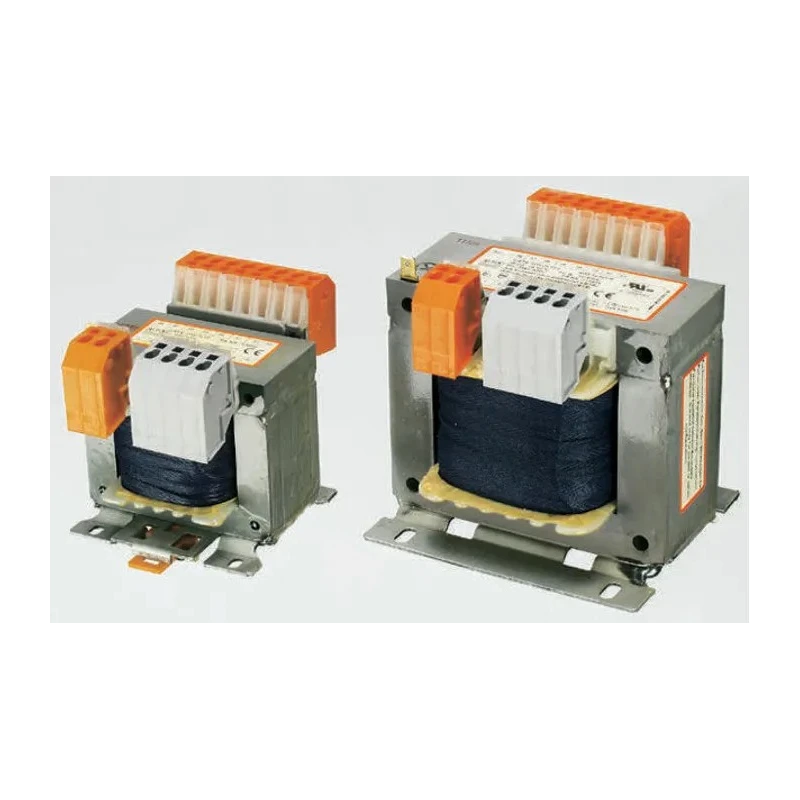

Block USTE250/2X12 is a high-quality Chassis Mount Transformer delivering a rated power of 250 VA with two 12 V AC outputs. It supports a wide range of input voltages from 208 V AC up to 600 V AC, making it versatile for international and industrial environments.

The transformer is designed for isolation and control applications, meeting stringent safety standards including cUL, VDE, and UL approvals. Its construction includes vacuum resin impregnation, providing excellent electrical insulation and resistance to environmental factors.

Operating reliably within frequency bands of 50 Hz to 60 Hz and a maximum ambient temperature of 40°C, this transformer ensures stable performance under typical industrial conditions. Its chassis mount form factor, with dimensions approximately 96 mm length, 102 mm depth, and 96 mm width, allows straightforward integration into control panels or machinery.

Weighing about 3.6 kg, it balances portability with sturdy build quality. Cage clamp terminals enhance installation ease and wiring security. The wide input voltage range delivers universal input compatibility, reducing the need for multiple transformer variants.

This model is ideal for applications in industrial automation, control systems, manufacturing equipment, electrical panels, and other scenarios requiring isolated power delivery and voltage step-down from medium to low voltages.

This transformer has two AC output voltages of 12 V each. Built for safe isolation and control use with cUL, VDE, and UL certifications. Designed to operate continuously at up to 40°C maximum temperature. Operates in frequency range between 50 Hz and 60 Hz.

Compact chassis mount design with dimensions approx. 96 mm x 102 mm x 96 mm (L x D x W). Weighs approximately 3.6 kg for robust industrial usage. Vacuum resin impregnated for enhanced electrical insulation and durability.

Suitable for worldwide voltage compatibility from 208 V to 600 V AC input. Equipped with cage clamp terminals for easy and secure installation. Ideal for industrial, laboratory, and control panel applications requiring stable and safe voltage conversion.
