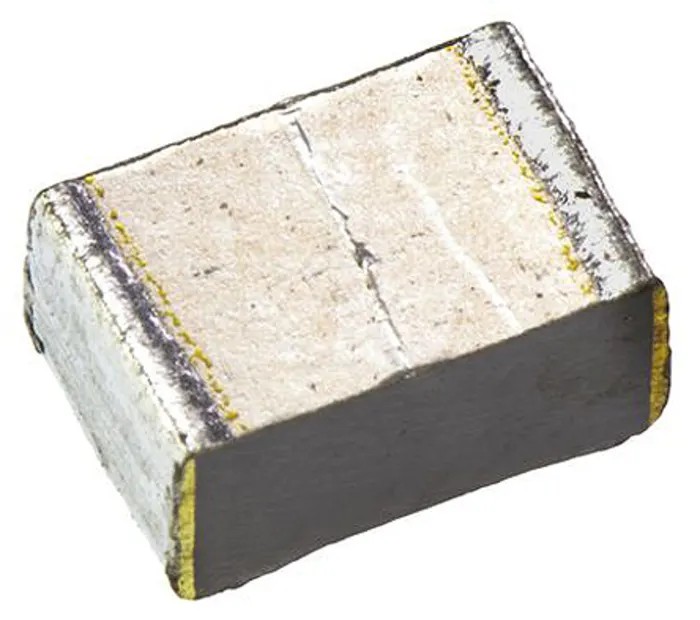

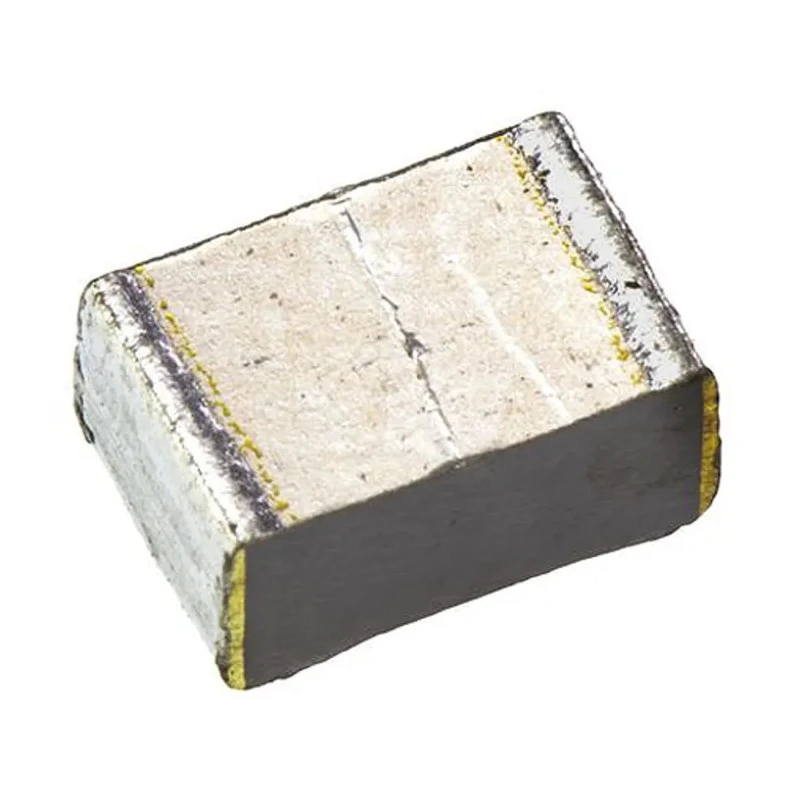

Panasonic ECHU(X) 16 V dc 16V ac Film Capacitor 22 nF Surface Mount ECHU1C223GX5

Panasonic ECHU1C223GX5 film capacitor is a compact, surface mount passive electronic component designed for high-performance circuit applications. Featuring a capacitance of 22 nF and rated for 16 V dc and 16 V ac, it is constructed using stacked metallised PPS film with a mould-less design that enhances mechanical reliability and stability under thermal stress. The capacitor supports a maximum operating temperature of 125°C, making it suitable for industrial and commercial electronic assemblies requiring enduring performance under elevated temperature conditions.

This film capacitor is optimized for low equivalent series resistance (ESR), providing effective filtering, oscillation, and resonance handling in audio, signal timing, and filtering circuits. Its small form factor dimensions (3.2 mm length, 1.6 mm width, 0.9 mm height) make it ideal for high-density circuit boards using surface mount technology (SMT) and reflow soldering processes.

The ECHU(X) series ensures compliance with environmental RoHS standards and does not conform to automotive standards, focusing on general electronic applications. This capacitor is recommended for time-constant circuits, oscillators, and resonance filters in industrial, instrumentation, and consumer electronics.

Constructed from stacked metallised PPS film for enhanced mechanical stability. Mould-less design improves reflow soldering outcomes and product endurance. Compact, lightweight design facilitates high-density PCB layouts.

Operable at up to 125°C ambient temperature for robust application suitability. Low ESR characteristic ideal for high-performance filtering and oscillation. Surface mount type suitable for automated SMT assembly lines. Rated both at 16 V dc and 16 V ac for versatile usage scenarios.

RoHS compliant, ensuring lead-free and environmentally friendly product standards.

This Panasonic film capacitor is an excellent choice for engineers and manufacturers seeking reliable, durable, and efficient passive components for electronic designs across industrial, laboratory instrumentation, and consumer electronics sectors. Explore more Film Capacitors and electronic components in the Electronics & Electricals category on EnvMart for complementary and upgrade options.
