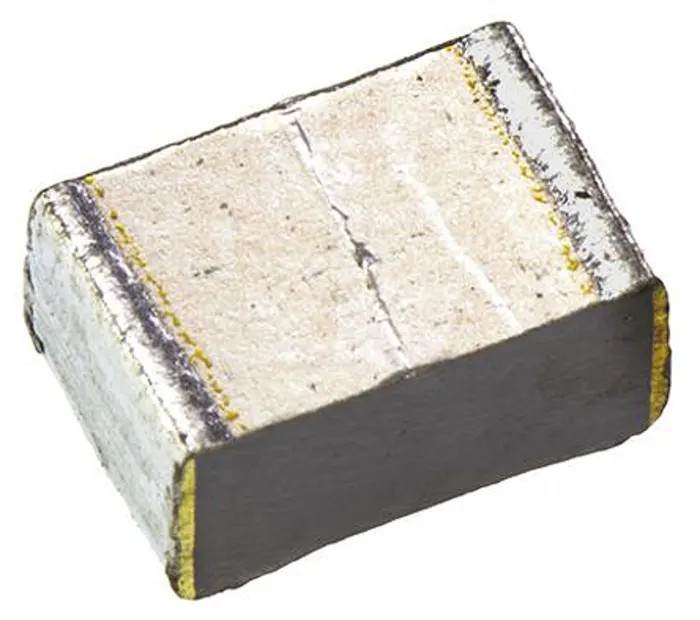

Panasonic ECHU(X) 16 V dc 16V ac Film Capacitor 100nF Surface Mount ECHU1C104GX5

Panasonic ECHU1C104GX5 Film Capacitor offers a compact, reliable surface mount solution for electronic circuits requiring stable capacitance. Equipped with a 100nF capacitance and rated at 16V DC and 16V AC, this capacitor features a construction using stacked metallised PPS film without mould, significantly enhancing durability and weight reduction.

Designed to withstand maximum operating temperatures up to 125°C, it supports demanding industrial and commercial electronic applications. The capacitor’s low equivalent series resistance (ESR) enables efficient performance in oscillation, resonance, and filtering circuits.

With compact dimensions measuring 3.2mm in length, 2.5mm in width, and 2.1mm in height, it fits efficiently into high-density printed circuit board designs using surface mount technology and is compatible with reflow soldering processes.

This product complies with RoHS directives, ensuring it meets stringent environmental and safety standards valuable in manufacturing and assembly processes.

Ideal use cases include oscillation circuits, time-constant and audio filtering applications, and other signal processing circuits in industrial, commercial, and consumer electronics.

Constructed from stacked metallised PPS film with mould-less design for durability. Rated AC Voltage of 16V AC and DC Voltage of 16V DC for versatile applications. Compact dimensions enable high-density PCB mounting using surface mount technology.

Maximum operating temperature is 125°C for heavy-duty environments. Low equivalent series resistance (ESR) enhances performance in filtering and oscillation. Complies with RoHS for environmental and manufacturing responsibility.

Designed for use in oscillation, resonance, and filtering circuits in industrial electronics. Explore additional Panasonic electronic component solutions in the Film Capacitor category at EnvMart for precise, reliable electronic assemblies.
