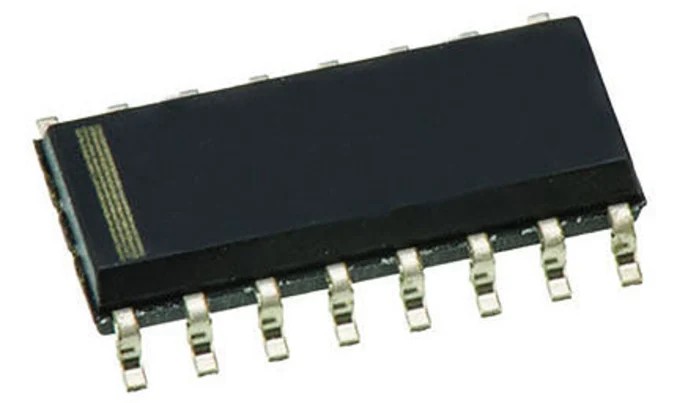

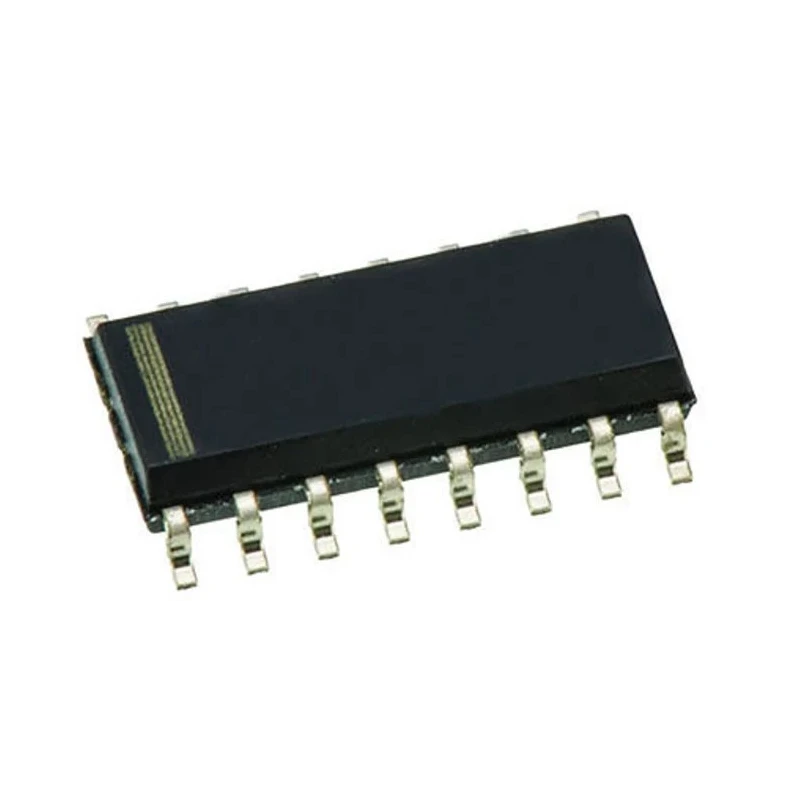

STMicroelectronics 2-Channel Line Transceiver CMOS/TTL 16-Pin SOIC Surface Mount ST232ACDR
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.75mm |
| Length | 10mm |
| Model | ST232ACDR |
| Width | 4mm |
| Mount Type | Surface |
| Output type | CMOS/TTL |
| Series | ST232AC |
| Input Type | Single Ended |
| Maximum Operating Temperature | 70°C |
| Package Type | SOIC |
| Minimum Operating Temperature | 0°C |
| IC Type | Line Transceiver IC |
| Number Of Channels | 2 |
| Pin Count | 16 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | CMOS/TTL |
| Logic Function | Line Transceiver |
| Minimum Supply Voltage | 4.5V |
| Maximum Propagation Delay Time @ CL | 3.5μs |
| Supply Current | 4mA |
Key Features
- Operates with a supply voltage of 4.5V to 5.5V.
- Low supply current consumption of 4mA.
- Maximum propagation delay time of 3.5 microseconds.
- Wide operating temperature range from 0°C to 70°C.
- Compact 16-pin SOIC package suitable for surface mounting.
- CMOS/TTL logic family compatibility.
- Single-ended input and CMOS/TTL output logic types.
- Ideal for industrial, electronic, and communication applications.
Product Description
STMicroelectronics ST232ACDR is a 2-channel line transceiver IC designed for RS-232 line driver and receiver applications featuring CMOS/TTL logic compatibility. It operates efficiently within a supply voltage range from 4.5V to 5.5V and consumes a low supply current of 4mA, making it suitable for energy-conscious designs.
The device offers a maximum propagation delay of 3.5 microseconds at the capacitive load, ensuring timely signal transmission for communication interfaces. Its compact 16-pin SOIC package measures 10mm in length, 4mm in width, and 1.75mm in height, optimized for surface mounting on printed circuit boards.
With operating temperature tolerance from 0°C to 70°C, the ST232ACDR guarantees dependable performance in typical industrial and commercial electronic environments. The single-ended input and CMOS/TTL output logic levels make it versatile for multiple interface configurations requiring line transceivers.
This product is ideal for applications in electronic components, power and connectors, semiconductor Line Interface ICs, and communication equipment. Its reel packaging supports automated assembly processes enhancing manufacturing efficiency.
Operates between 4.5V and 5.5V supply voltage. Consumes 4mA supply current for power-efficient performance. Supports two channel line transceiver functions. 16-pin SOIC package for surface mount technology. Environment operating range from 0°C to 70°C.
Compatible with CMOS/TTL logic families. Maximum propagation delay time of 3.5μs. Compact physical dimensions: 10mm (L) x 4mm (W) x 1.75mm (H). Explore more semiconductor and line interface IC products at EnvMart to meet your industrial and electronic system needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates within a supply voltage range of 4.5V to 5.5V.
The maximum propagation delay time is 3.5 microseconds at the capacitive load.
The dimensions of the ST232ACDR are 10mm in length, 4mm in width, and 1.75mm in height.
It supports CMOS/TTL logic family compatibility.
This model supports two channel line transceiver functions.
It consumes a low supply current of 4mA.
The operating temperature range is from 0°C to 70°C.
It uses a single-ended input type.
It comes in a compact 16-pin SOIC package suitable for surface mounting.
It is designed for RS-232 line driver and receiver applications in industrial, electronic, and communication settings.
The country of origin is India.
The output type is CMOS/TTL.
