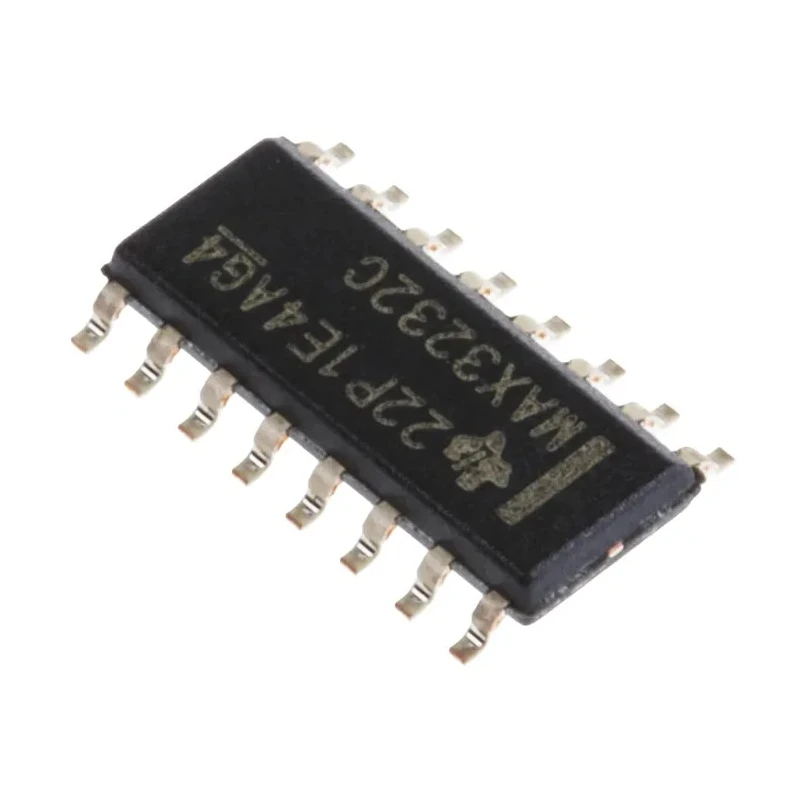

Texas Instruments 2-Channel Line Transceiver, 16-Pin SOIC MAX3232CDR
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.75mm |
| Length | 10mm |
| Model | MAX3232CDR |
| Width | 4mm |
| Mount Type | Surface |
| Series | MAX3232 |
| Input Type | Single Ended |
| Maximum Operating Temperature | 70°C |
| Package Type | SOIC |
| Minimum Operating Temperature | 0°C |
| IC Type | Dual Channel Transceiver |
| Number Of Channels | 2 |
| Pin Count | 16 |
| Maximum Supply Voltage | 5.5V |
| Logic Function | Driver & Receiver |
| Minimum Supply Voltage | 3V |
| Maximum High Level Output Current | -1mA |
| Maximum Propagation Delay Time @ CL | 300ns |
| Supply Current | 1mA |
| Maximum Low Level Output Current | 1.6mA |
Key Features
- Operates from a single 3 V to 5.5 V supply voltage.
- Includes two line drivers and two receivers supporting data rates up to 1 Mbps.
- Provides ±15 kV Human-Body Model ESD protection for robust performance.
- Compact 16-pin SOIC surface mount package measuring 10 mm × 4 mm × 1.75 mm.
- Wide operating temperature range from 0°C to 70°C for versatile industrial applications.
- Low supply current consumption of approximately 1 mA for energy-efficient operation.
- Designed without automotive standards compliance, intended for general electronic components.
Product Description
Texas Instruments MAX3232CDR is a dual-channel line transceiver IC designed for RS-232 serial communications, packaged in a 16-pin SOIC surface mount form factor. It operates efficiently with supply voltages ranging from 3 V up to 5.5 V, making it suitable for a variety of low-voltage electronic devices.
The device integrates two drivers and two receivers capable of data transmission speeds reaching 1 Mbps, ensuring reliable communication performance. It meets or exceeds TIA/EIA-232-F and ITU v.28 standards and features robust ESD protection up to ±15 kV (Human-Body Model) and ±8 kV (Contact Discharge), enhancing device longevity in industrial environments.
Physically compact, the MAX3232CDR measures 10 mm in length, 4 mm width, and 1.75 mm height, making it ideal for space-constrained electronic assembly. Its operating temperature range from 0°C to 70°C supports a broad array of industrial, electronic, embedded, and telecommunications applications requiring stable interface IC performance.
Low supply current consumption of 1 mA reduces power usage in embedded and portable systems. This IC is surface-mount type and does not carry automotive-grade certification, indicating it is intended predominantly for general-purpose electronic circuit design rather than automotive applications.
Key applications include serial data interface solutions in industrial control units, communication systems, instrumentation, and other embedded systems requiring dual channel RS-232 interface ICs.
Operates from a single supply voltage between 3 V and 5.5 V. Includes two drivers and two receivers supporting speeds up to 1 Mbps. ESD protection of up to ±15 kV Human-Body Model. Compact 16-pin SOIC package for surface mounting in electronic assemblies.
Operating temperature range from 0°C to 70°C for industrial use. Low supply current of 1 mA for efficient power consumption. Designed for use outside automotive systems, no automotive certification. Explore a wide range of semiconductor and interface IC solutions by Texas Instruments on EnvMart for your electronic design requirements.
Explore more products in our Line Interface ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates from a single supply voltage between 3 V and 5.5 V.
It supports data rates up to 1 Mbps, ensuring reliable communication performance.
It is packaged in a compact 16-pin SOIC surface mount format, measuring 10 mm in length, 4 mm in width, and 1.75 mm in height.
The operating temperature range is from 0°C to 70°C, making it suitable for various industrial applications.
It features ESD protection of up to ±15 kV (Human-Body Model) and ±8 kV (Contact Discharge), enhancing its durability in industrial environments.
This unit includes two channels, functioning as both drivers and receivers for RS-232 communications.
It has a low supply current consumption of approximately 1 mA, which helps in energy-efficient operation.
No, this model is designed for general electronic components and does not carry automotive standards compliance.
The maximum propagation delay time at a specified load capacitance is 300 ns.
It utilizes a single-ended input type, suitable for its intended applications in serial communications.
The country of origin for this model is India.
Key applications include serial data interface solutions in industrial control units, communication systems, and embedded systems requiring RS-232 interfaces.
