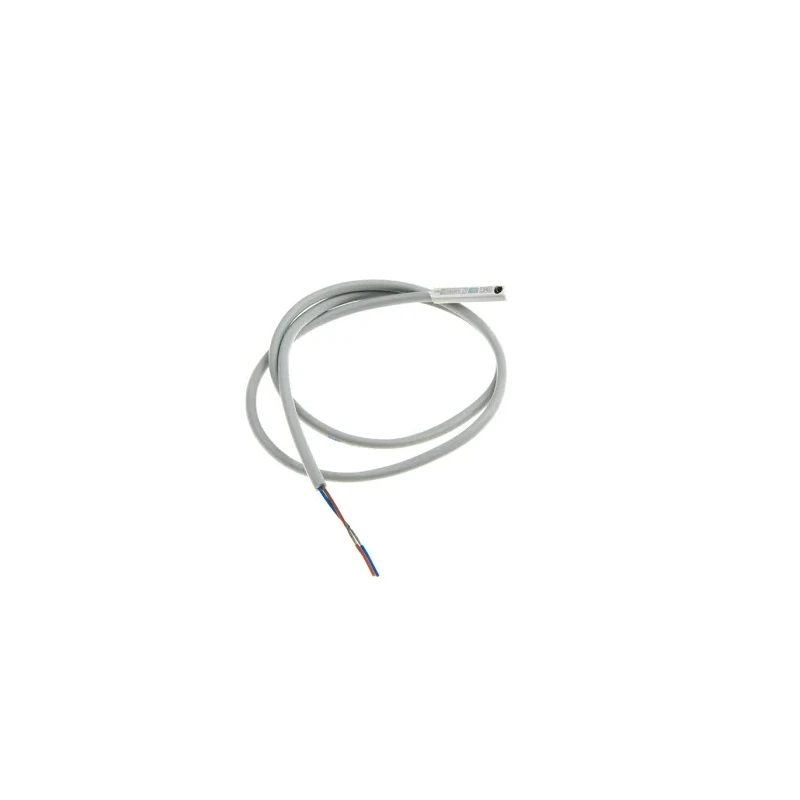

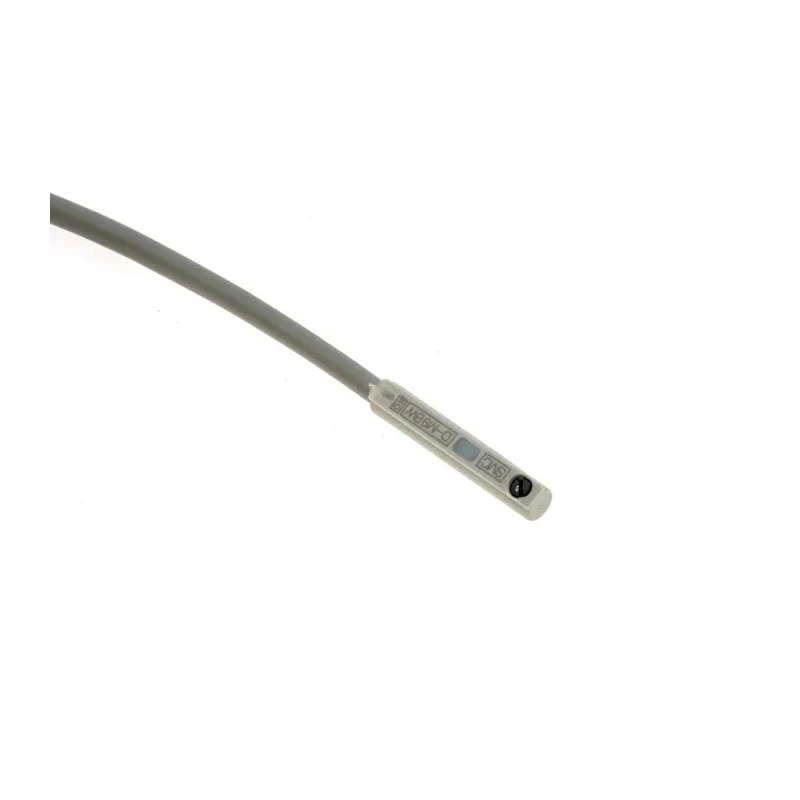

SMC 2-Wire Open End Cable Direct NPN Solid State Pneumatic Switch D-M9BW 24V DC LED Indicator



Category Pneumatic Sensors & Switches Brand SMC Condition New

Specifications

Country of Origin	Japan
Voltage	24V dc
Brand	SMC
Height	18mm
Model	D-M9BW
Depth	46mm
IP Rating	IP67
Width	15.5mm
Operation Type	NPN
Mount Type	Direct
Series	D-M9
Maximum Operating Temperature	60°C
Sub Type	Solid State Switch
Minimum Operating Temperature	-10°C
Switching Current	40mA
Standards/Approvals	IEC 529
Pay online using	Or choose to pay later via bank transfer
RS Stock No.	826-2376Brand: SMCManufacturers Part No.: D-M9BWDistrelec Article No.: 30423496

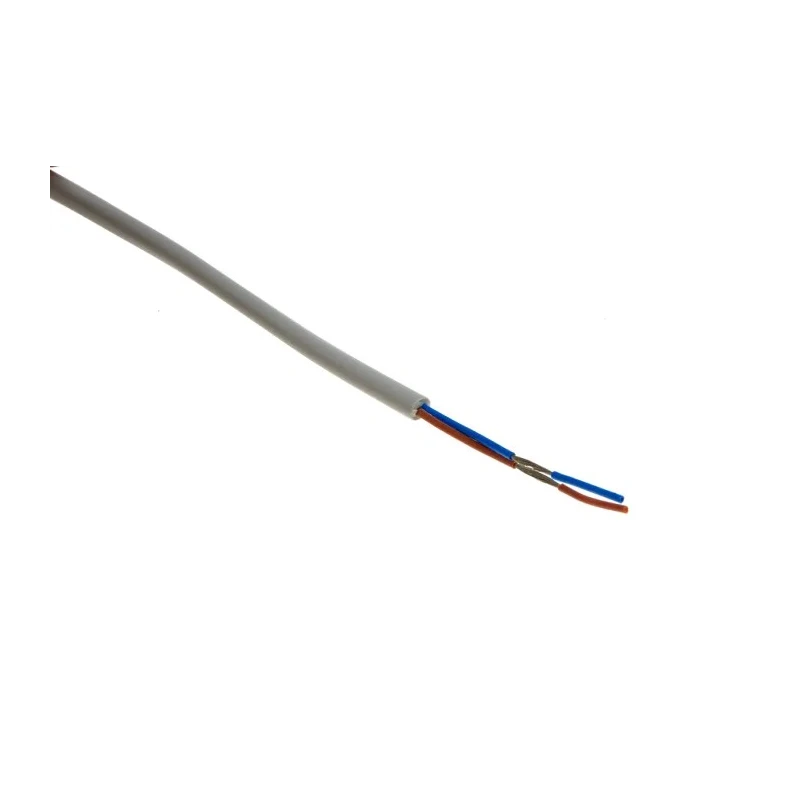

Electrical Connection Type	2-Wire Open End Cable
Applicable Load	24 V dc Relay/PLC

Key Features

The pneumatic switch features a robust IP67 rating for protection against dust and water ingress.
It is compatible with various CRJ, MSQX, CDRQ2, MSQ, and MSZ rotary actuator series.
Switching current is rated at 40mA with low voltage drop ≤4V for efficient operation.
Integrated LED indicator provides visual confirmation of switching status.
Temperature operating range spans from -10°C to +60°C for versatile industrial use.
The device complies with IEC 529 standards for safety and reliability.
Its compact size (18mm height, 15.5mm width, 46mm depth) suits installation in constrained spaces.
Ideal for industrial automation systems requiring precise NPN signal outputs and environmental protection.

Product Description

SMC D-M9BW is a 2-wire open end cable direct pneumatic switch in the D-M9 series featuring a solid state design with NPN operation and a 24V DC voltage rating. This switch includes an LED indicator for easy monitoring and an IP67 rating that ensures excellent resistance to dust and water, making it suitable for demanding industrial environments requiring reliable pneumatic switch control.

The switch supports low voltage drop of ≤4V and a switching current up to 40mA, providing efficient electrical performance. It is compatible with a wide range of pneumatic rotary actuators including CRJ Series (sizes 05, 10-50), MSQX Series (sizes 10-40), CDRQ2 Series (sizes 1, 10-200), MSQ Series (sizes 10-50), MSZ Series (sizes 10-40), and CDRQ2X Series (size 7).

Operating temperature ranges from -10 °C to +60 °C, with compliance to IEC 529 standards ensuring operational safety and durability. Its compact dimensions enable flexible integration, and the LED indicator facilitates quick visual checks of the switch status.

This pneumatic switch is ideal for industrial automation, manufacturing, laboratory pneumatic control systems, and fluid power tools, especially where dust and moisture exposure are concerns. It integrates seamlessly with PLC systems for precise switching and control.

The pneumatic switch features a robust IP67 rating for protection against dust and water ingress. It is compatible with various CRJ, MSQX, CDRQ2, MSQ, and MSZ rotary actuator series. Switching current is rated at 40mA with low voltage drop ≤4V for efficient operation.

Integrated LED indicator provides visual confirmation of switching status. Temperature operating range spans from -10°C to +60°C for versatile industrial use. The device complies with IEC 529 standards for safety and reliability.

Its compact size (18mm height, 15.5mm width, 46mm depth) suits installation in constrained spaces. Ideal for industrial automation systems requiring precise NPN signal outputs and environmental protection. Explore more pneumatic switches and automation control devices in the Industrial Tools & Equipment category on EnvMart for high-quality, reliable products.
