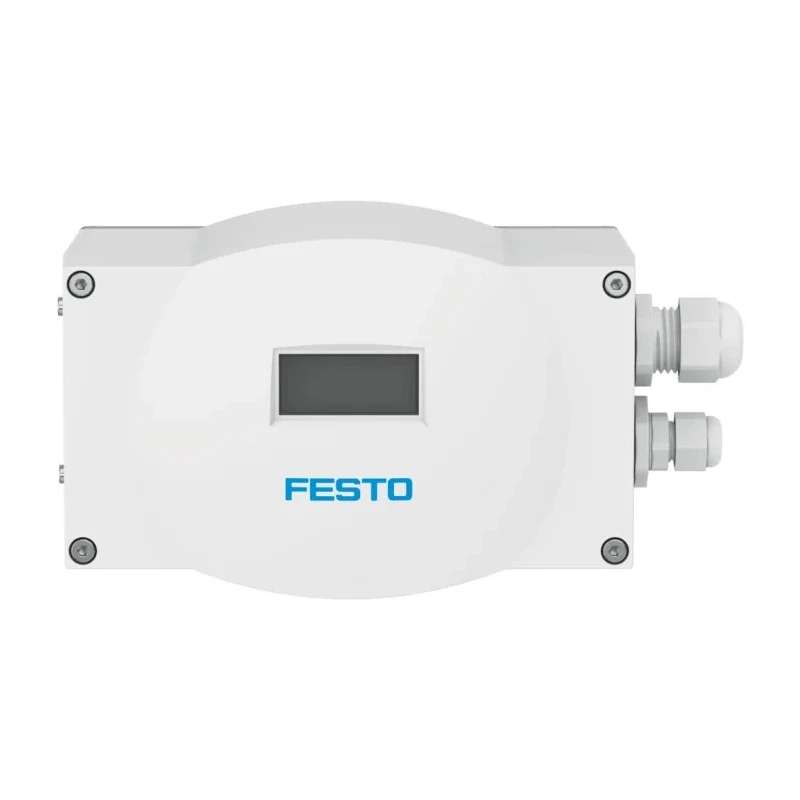

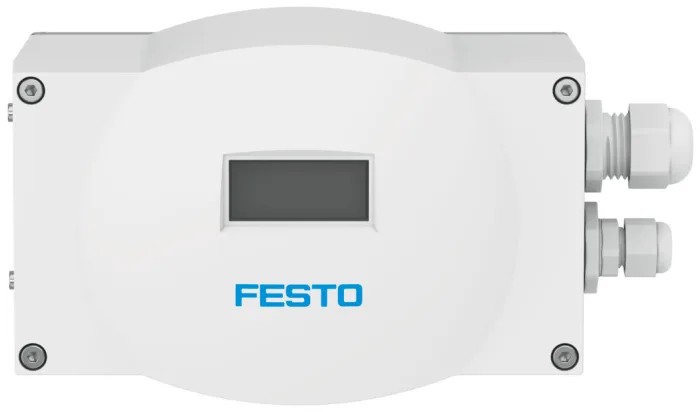

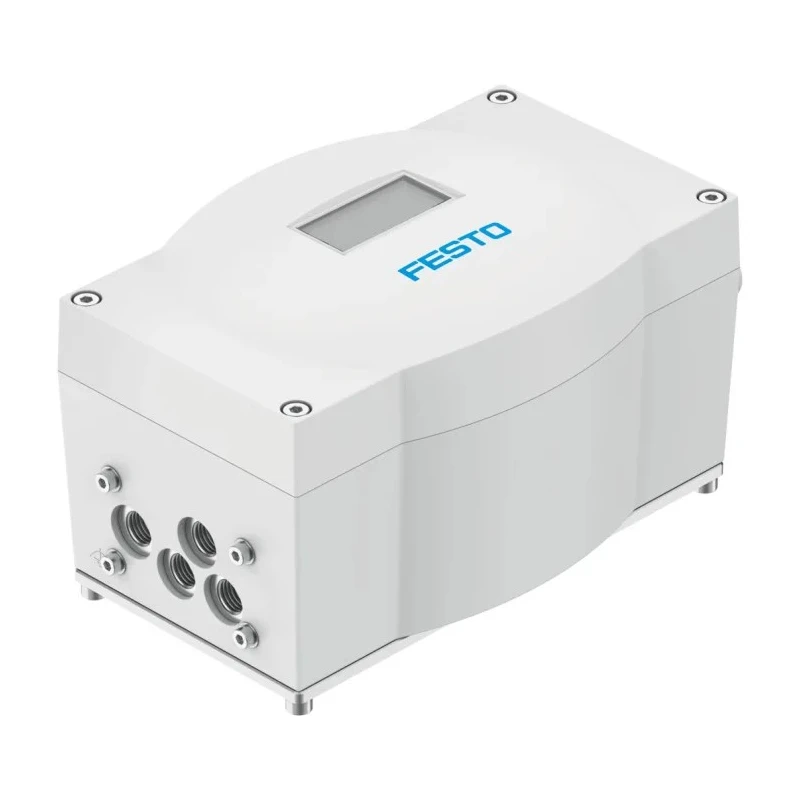

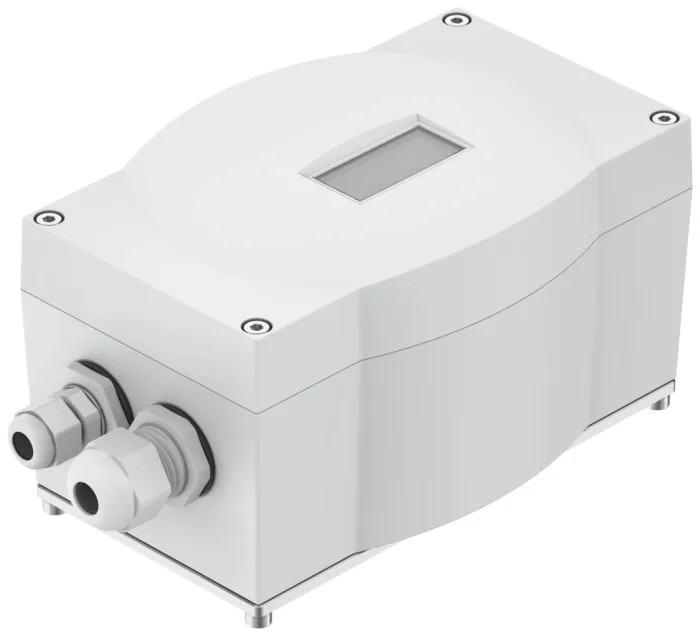

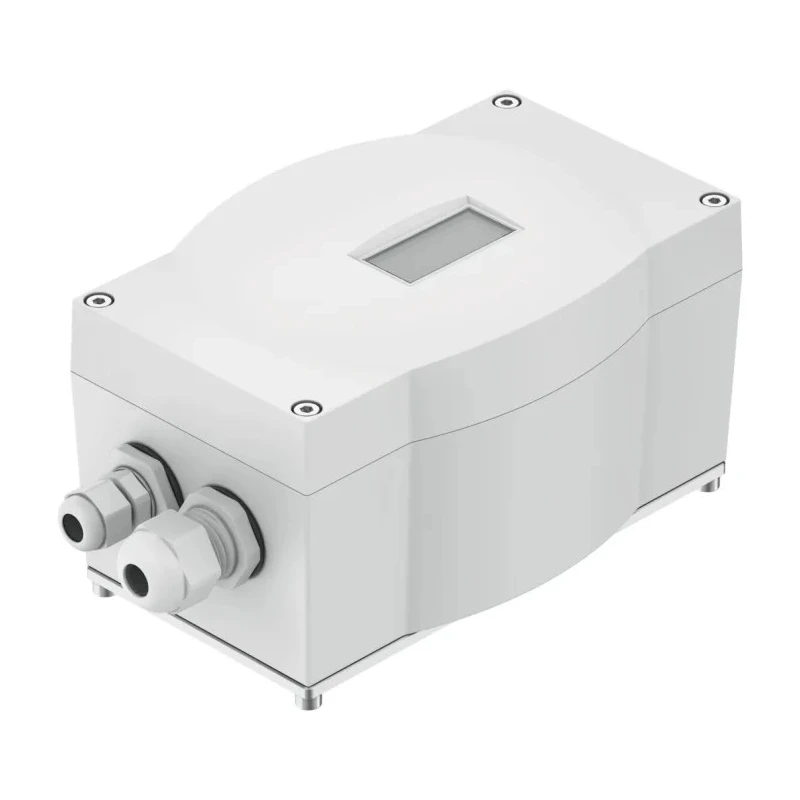

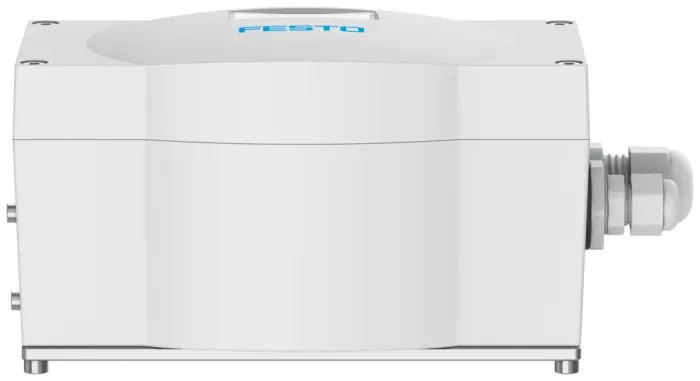

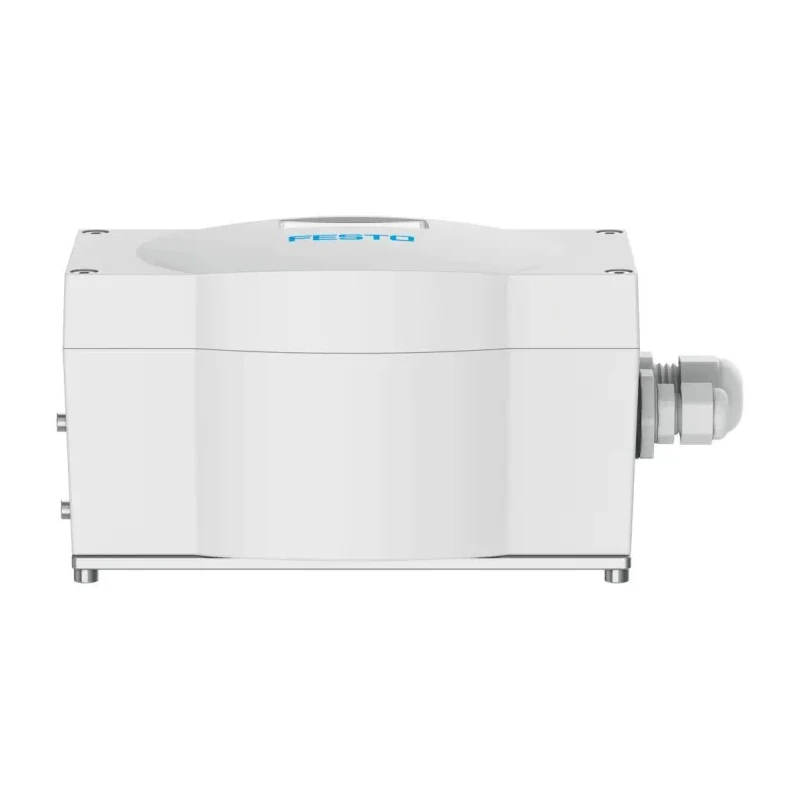

Festo Screw Pneumatic Sensor IP65 24V DC Digital Electropneumatic Positioner

Free Delivery in India | Lowest Global Shipping Charges

Festo Screw Pneumatic Sensor IP65 24V DC Digital Electropneumatic Positioner

Name: Festo Screw Pneumatic Sensor IP65 24V DC Digital Electropneumatic Positioner
Brand: FESTO
SKU: 94190
Price: 1224.23 USD
Availability: InStock



Category Pneumatic Sensors & Switches Brand FESTO Condition New

Specifications

Country of Origin	China
Voltage	24V dc
Brand	Festo
Model	IP65
IP Rating	IP65
Operating Pressure	3 bar to 8 bar
Housing Material	Polycarbonate
Series	CMSX
Maximum Operating Temperature	60°C
Measurement Principle	Digital Electropneumatic Positioner
Minimum Operating Temperature	-5°C
Analogue Output	4 to 20 mA
Ambient Temperature	-5 °C to 60 °C
For Use With	Single and Double-Acting Pneumatic Actuators, Double-Acting Linear Actuators In Process Automation Systems
Standards/Approvals	VDI/VDE 3845 (NAMUR), CE to EU EMC Directive, C-Tick
Electrical Connection Type	Screw
Better World Claim	Repairable by the End User
Switching Action	Double Acting
Standard Nominal Flow Rate	50 L/min (136-6725 and 136-6726), 130 L/min (136-6728)
Setpoint Value	0 mA to 20 mA, 4 mA to 20 mA, 0 mA to 10 V
VDI/VDE 3845 (NAMUR), compressed air in accordance with ISO8573-1	2010 [7:4:4]

Key Features

Operates with a 24V DC supply voltage and supports 4 to 20 mA analogue output.
Designed for controlling single and double-acting pneumatic actuators in process automation systems.
Features an IP65 rated polycarbonate housing ensuring dust and water resistance.
Supports double-acting switching action and operates within -5°C to 60°C temperature range.
Compatible with VDI/VDE 3845 (NAMUR) standards and CE to EU EMC Directive compliance.
Utilizes a PID control algorithm and adjustable parameters for precise actuator position management.
Handles operating pressures from 3 to 8 bar for industrial pneumatic applications.
Includes a screw electrical connection type for secure wiring.

Product Description

Festo CMSX-P-SE-C-U-F1-D-130-A screw pneumatic sensor is a robust digital electropneumatic positioner designed for industrial automation, providing precise control over pneumatic actuators with a 24V DC supply voltage. Featuring an IP65 rated polycarbonate housing, it delivers reliable protection against dust and water ingress, making it suitable for demanding industrial environments.

This sensor supports both single-acting and double-acting pneumatic actuators, ideal for various process automation applications. It operates efficiently under a range of pressures from 3 to 8 bar and maintains performance within an ambient temperature range of -5°C to 60°C.

The product complies with VDI/VDE 3845 (NAMUR) standards and meets CE requirements of the EU EMC Directive, ensuring compatibility and safety in automation systems. Its integrated PID control algorithm and adjustable parameters enable customized and precise position management. The sensor outputs a 4 to 20 mA analogue signal for real-time feedback and control.

Designed for use with double-acting quarter turn actuators, it is well-suited for control of shut-off valves or ball valves in manufacturing and process industries. The screw-type electrical connection facilitates easy and secure installation.

This Festo pneumatic sensor excels in applications requiring durable and high-precision sensor solutions within industrial, manufacturing, HVAC, and process automation sectors. Its repairable design also supports sustainable practices.

Operates at 24V DC with precise analog output for position control. IP65-rated durable polycarbonate housing for harsh environments. Compatible with single and double-acting pneumatic actuators. Supports operating pressures between 3 and 8 bar.

Complies with VDI/VDE 3845 (NAMUR) and CE EMC Directive standards. Features adjustable PID control for enhanced actuator positioning. Temperature range from -5°C to 60°C accommodates varied industrial conditions. Electrical screw connection type ensures secure wiring.

Explore the full range of pneumatic sensors and related automation components at EnvMart to optimize your industrial control systems effectively.

Explore more products in our Pneumatic Sensors & Switches category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

It operates with a 24V DC supply voltage.

The sensor maintains performance within an ambient temperature range of -5°C to 60°C.

It is designed for use with both single and double-acting pneumatic actuators, as well as double-acting linear actuators in process automation systems.

The housing is rated IP65, providing protection against dust and water ingress.

It handles operating pressures from 3 to 8 bar.

It supports a 4 to 20 mA analogue output for real-time feedback and control.

It complies with VDI/VDE 3845 (NAMUR) standards and meets CE requirements of the EU EMC Directive.

The housing is made of polycarbonate, ensuring durability in industrial environments.

It features a screw-type electrical connection for secure wiring.

It operates as a digital electropneumatic positioner, utilizing a PID control algorithm for precise actuator management.

The standard nominal flow rate is 50 L/min for certain models and 130 L/min for others, depending on the specific configuration.

Yes, it has a repairable design that supports sustainable practices by allowing end-user repairs.
