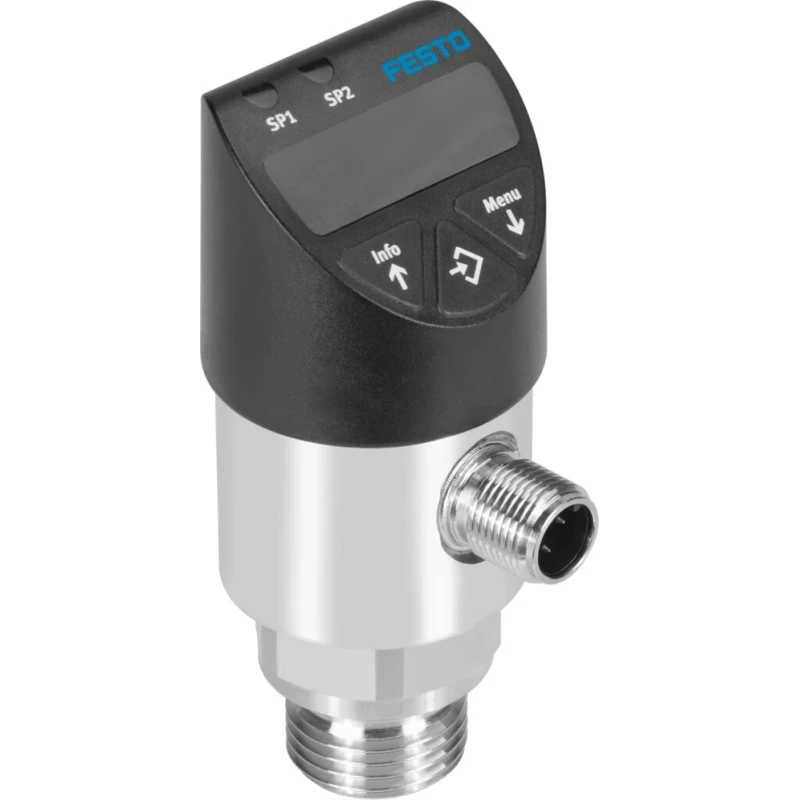

Festo Pressure Sensor 10 bar, IP65/IP67, 35V DC, 80°C, PNP Switch Output SPAW-P10R-G12M-2P-M12
Specifications
| Country of Origin | Germany |
|---|---|
| Accuracy | ± 1 % |
| Voltage | 35V dc |
| Brand | Festo |
| Maximum Operating Pressure | 10 bar |
| Model | SPAW-P10R-G12M-2P-M12 |
| IP Rating | IP67, IP65 |
| Mount Type | Screw |
| Maximum Operating Temperature | 80°C |
| Pressure Type | Relative |
| Switch output | PNP |
| Port Size | G 1/2 |
| Minimum Operating Temperature | 0°C |
| Standards/Approvals | RoHS |
| Connection Thread Standard | NPT, GPT, R (PT) |
| Electrical Connection Type | Plug |
| Minimum Operating Pressure | 0bar |
| Suitable Medias | Air, Water, Fluid, Gas |
Key Features
- Accurate relative pressure measurement from 0 to 10 bar supports diverse industrial applications.
- Robust IP65 and IP67 ratings ensure reliable operation in wet or splash-prone environments.
- Plug-type electrical connection with M12 plug enables fast and secure wiring installation.
- PNP switch output integrates seamlessly with PLCs and controllers for process control.
- Supports measurement in air, water, fluids, and gases for versatile usage scenarios.
- Designed for screw mounting with NPT, GPT, and R (PT) thread standards.
- Operates reliably within temperature range 0°C to 80°C for industrial conditions.
- Digital display provides intuitive pressure readout for ease of monitoring.
Product Description
Festo SPAW-P10R-G12M-2P-M12 Pressure Sensor is a compact and precise industrial-grade device designed to monitor relative pressure in various media including air, water, fluids, and gases. It features a maximum operating pressure of 10 bar and ±1% accuracy for highly reliable process control across pneumatic and hydraulic systems.
Equipped with IP65 and IP67 ingress protection, this sensor is suitable for harsh industrial environments with exposure to splashes or wet conditions. The M12 plug-type electrical connection and screw mount installation facilitate quick integration into existing systems.
The sensor outputs a PNP switch signal simplifying interfacing with automation controllers such as PLCs. The supported thread standards (NPT, GPT, R (PT)) allow flexible mechanical mounting options tailored to common piping practices.
Measuring pressure within the temperature range of 0°C to 80°C, it is well-suited for machine tool coolant surveillance, hydraulic skid systems, pneumatic circuit monitoring, and general plant utilities. A built-in digital display provides local pressure readings enhancing usability and diagnostics.
Key industrial and commercial applications include compressed air pressure monitoring, process water line control, and hydraulic pressure supervision, addressing wide-ranging automation and fluid power scenarios.
Accurate pressure sensing with ±1% precision for process repeatability. Robust IP65/IP67 protection ensures durability in wet environments. Plug-in M12 electrical connection for simple installation and maintenance. PNP output supports direct PLC communication and control automation.
Versatile media compatibility including air, water, fluids, and gases. Multiple thread standards accommodate various mounting requirements. Operating temperature rated from 0°C to 80°C for industrial environments. Digital display enables local visual monitoring of pressure values.
This pressure sensor is sourced from Germany and supplied as a new product. It is ideal for industrial, manufacturing, automation, hydraulic, and pneumatic applications requiring reliable pressure measurement under demanding conditions.
Browse more pneumatic sensors and pressure monitoring solutions in the Industrial Tools & Equipment category at EnvMart to find complementary products for your system requirements.
Explore more products in our Pneumatic Sensors & Switches category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this model is 10 bar.
It has an accuracy of ±1%.
This sensor is suitable for measuring air, water, fluids, and gases.
The operating temperature range is from 0°C to 80°C.
It features a plug-type electrical connection with an M12 plug.
The sensor has IP65 and IP67 ingress protection ratings, making it suitable for wet environments.
It is designed for screw mounting and supports various thread standards including NPT, GPT, and R (PT).
It provides a PNP switch output, which allows for easy integration with PLCs and controllers.
The port size is G 1/2.
This pressure sensor complies with RoHS standards.
It is sourced from Germany.
The minimum operating pressure is 0 bar.
