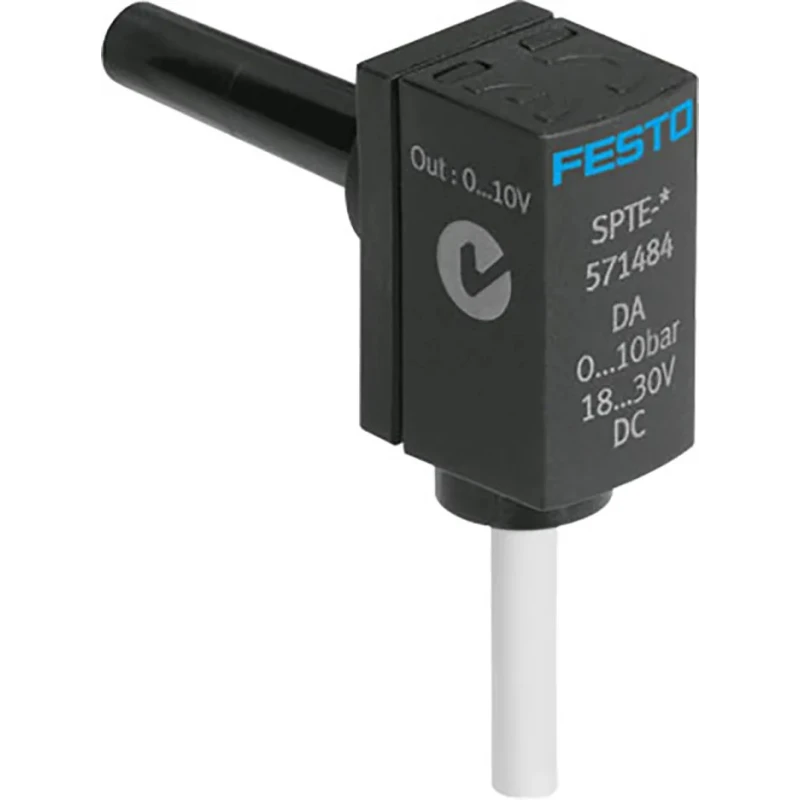

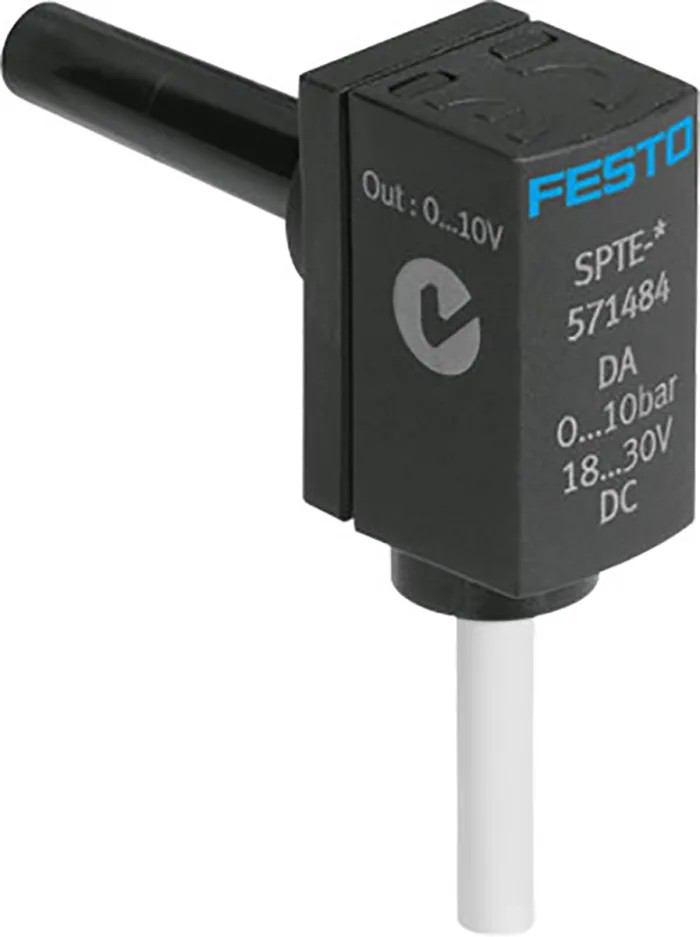

Festo Pressure Sensor Controller, IP40 10 bar 30V 50°C
Specifications
| Country of Origin | Thailand |
|---|---|
| Accuracy | 2 % FS |
| Voltage | 30V |
| Brand | Festo |
| Maximum Operating Pressure | 10 bar |
| Height | 31.3mm |
| Model | IP40 |
| Depth | 20.5mm |
| IP Rating | IP40 |
| Width | 9.8mm |
| Series | SPTE |
| Maximum Operating Temperature | 50°C |
| Pressure Type | Relative Pressure |
| Port Type | Pneumatic |
| Minimum Operating Temperature | 0°C |
| Standards/Approvals | ISO |
| Connection Thread Standard | Push-in |
| Electrical Connection Type | Plug |
| Minimum Operating Pressure | 0bar |
| Port Gender | Male |
| Suitable Medias | Compressed Air, Gas |
Key Features
- This pressure sensor controller supports compressed air and gas mediums.
- It features a programmable accuracy of 2% FS for reliable measurements.
- The unit includes a large LCD display for easy pressure status monitoring.
- Designed for operation between 0°C to 50°C with a maximum pressure of 10 bar.
- Equipped with switchable PNP/NPN outputs compatible with various control systems.
- Features remote maintenance and parameterisation capability via IO-Link interface.
- Compact dimensions of 31.3mm height, 20.5mm depth, and 9.8mm width facilitate flexible mounting.
- Electrical connection is via plug type, with a male pneumatic port and push-in thread standard.
Product Description
Festo SPTE-P10R-S6-B-2.5K Pressure Sensor Controller is an intelligent device designed for precise and reliable pressure measurement and control in industrial automation and mechanical applications. With an IP40 protection rating, it withstands moderate industrial conditions and maintains consistent performance throughout its operating range of 0°C to 50°C.
This pressure sensor controller supports compressed air and gas as suitable media and provides relative pressure measurements with a 2% FS accuracy to ensure process reliability. Its programmable threshold values allow integration into complex monitoring systems for network, regulator, vacuum, leak test, and object detection functions.
Featuring a clear large LCD display, the device offers straightforward real-time pressure status visualization. The switchable PNP/NPN outputs provide broad compatibility with most control systems, while its electrical connection plugs in easily for installation convenience.
The component’s compact size (31.3mm height, 20.5mm depth, 9.8mm width) and push-in thread standard pneumatic fittings accommodate multiple mounting and installation scenarios in industrial environments. Remote parameter adjustment and maintenance through an IO-Link interface maximizes operational flexibility and reduces downtime.
Built to ISO standards and manufactured in Thailand, this Festo pressure sensor controller is ideal for industrial automation, electronics, and mechanical industries requiring accurate pressure monitoring, sensing, and control.
This pressure sensor controller supports compressed air and gas mediums. It features a programmable accuracy of 2% FS for reliable measurements. The unit includes a large LCD display for easy pressure status monitoring. Designed for operation between 0°C to 50°C with a maximum pressure of 10 bar.
Equipped with switchable PNP/NPN outputs compatible with various control systems. Features remote maintenance and parameterisation capability via IO-Link interface. Compact dimensions of 31.3mm height, 20.5mm depth, and 9.8mm width facilitate flexible mounting.
Electrical connection is via plug type, with a male pneumatic port and push-in thread standard. Explore more Festo pneumatic sensor controllers and components in the Industrial Tools & Equipment category at EnvMart.
Explore more products in our Pneumatic Sensors & Switches category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this model is 10 bar.
It features a programmable accuracy of 2% FS for reliable measurements.
This model is designed for operation between 0°C to 50°C.
It supports compressed air and gas as suitable media for measurement.
The dimensions are 31.3mm in height, 20.5mm in depth, and 9.8mm in width.
The electrical connection is via a plug type, facilitating easy installation.
It is equipped with switchable PNP/NPN outputs compatible with various control systems.
Yes, it features remote maintenance and parameterisation capability via an IO-Link interface.
It has an IP40 protection rating, suitable for moderate industrial conditions.
It is built to ISO standards, ensuring compliance with industrial requirements.
It has a male pneumatic port with a push-in thread standard.
This unit is manufactured in Thailand.
