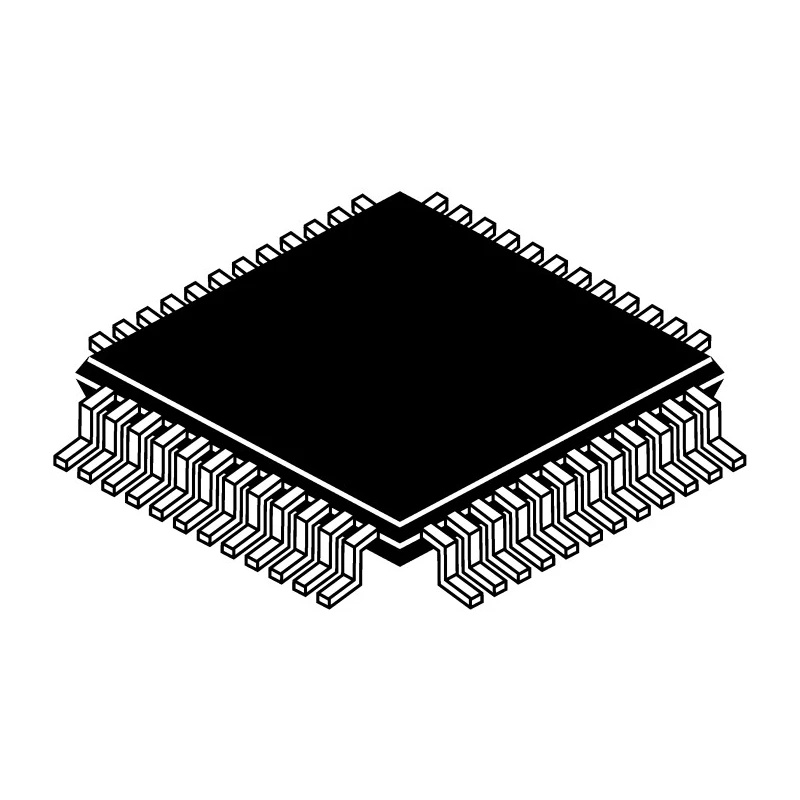

MaxLinear UART 48-Pin TQFP Universal Asynchronous Receiver Transmitter 1 Channel 16bit FIFO 1.5Mbps ST16C550CQ48-F

MaxLinear ST16C550CQ48-F is a high-performance UART (Universal Asynchronous Receiver Transmitter) designed for serial communication applications requiring efficient data transmission.

This device offers a single channel with 16bit FIFO buffers for both transmit and receive paths, enabling smooth and buffered data handling for asynchronous serial communication at a maximum rate of 1.5 Mbps.

The component comes in a surface mount 48-pin Thin Quad Flat Package (TQFP), providing a compact footprint with dimensions 9.2 mm in length and 1.2 mm in height, suitable for integration into modern electronic systems.

The operating supply voltage ranges from 2.97 V minimum to 5.5 V maximum, allowing compatibility with various power supply designs. It supports operation within temperature ranges from 0°C up to 70°C for reliable performance in typical industrial and commercial environments.

This UART is widely applicable in data communication equipment, embedded processor interfaces, modem devices, and other electronic systems requiring serial data transfer adhering to asynchronous protocols.

Unlike synchronous counterparts, the ST16C550CQ48-F supports universal asynchronous communication protocols such as EIA, RS-232, RS-422, and RS-485, making it versatile for multiple standard interfaces. Its reliable FIFO buffering helps in managing data flow efficiently and reducing CPU overhead.

Supports single channel serial data communication for reliable interface operations. Equipped with 16bit transmit FIFO and 16bit receive FIFO buffers. Operates over a supply voltage range of 2.97V to 5.5V for flexible power applications.

Surface mount package in a 48-pin Thin Quad Flat Package (TQFP) format suitable for compact PCB layouts. Operating temperature range spans from 0°C to 70°C, ensuring functionality in various environments. Length of 9.2 mm and height of 1.2 mm facilitating integration into standard electronic assemblies.

Complies with no specific standards/approvals and is non-automotive rated.

This product is designed for industrial, commercial, data communication, embedded system, and general electronics manufacturing applications where robust UART communication is required.
