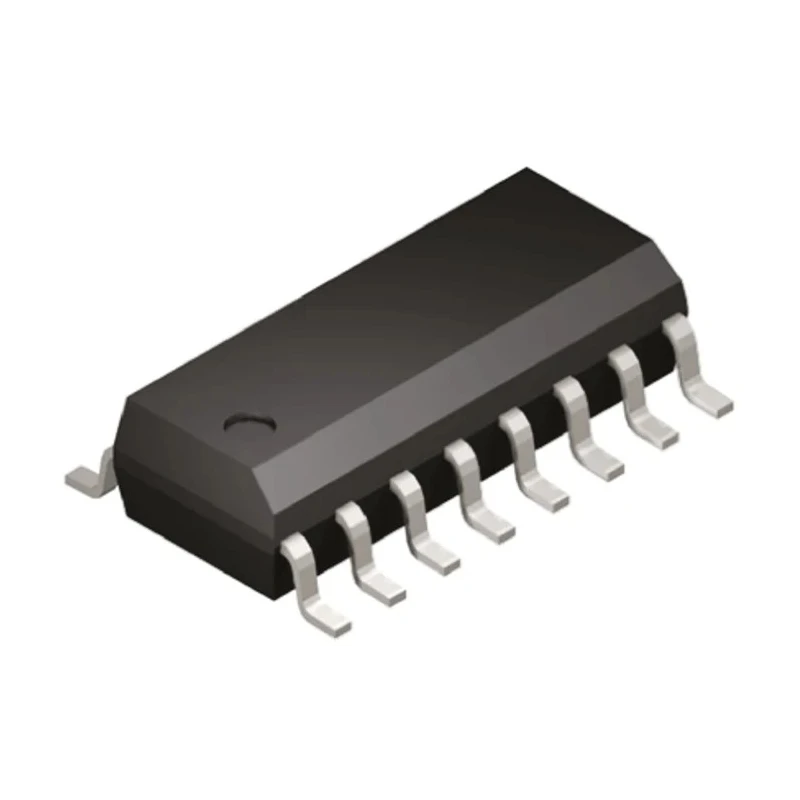

MaxLinear 2-Channel TTL Inverting Line Transceiver, 16-Pin SOIC, 3-5.5V Supply, CMOS/TTL Logic SP3232EBCN-L/TR
Specifications
| Country of Origin | India |
|---|---|
| Brand | MaxLinear |
| Height | 2mm |
| Length | 6.5mm |
| Model | SP3232EBCN-L/TR |
| Width | 5.6mm |
| Mount Type | Surface |
| Output type | TTL |
| Series | SP3232EB |
| Input Type | Single Ended |
| Maximum Operating Temperature | 70°C |
| Package Type | SOIC |
| Minimum Operating Temperature | 0°C |
| Polarity | Inverting |
| IC Type | Line Transceiver IC |
| Number Of Channels | 2 |
| Pin Count | 16 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | CMOS/TTL |
| Logic Function | Line Transceiver |
| Minimum Supply Voltage | 3V |
| Maximum Propagation Delay Time @ CL | 150ns |
| Supply Current | 1mA |
Key Features
- Operates with CMOS/TTL logic family ensuring compatibility with common digital circuits.
- Features two full-duplex line transceiver channels for RS-232 serial communication.
- Inverting polarity provides the necessary signal level conversion within 150ns maximum propagation delay.
- Compact surface-mount SOIC package with 16 pins, measuring 6.5 mm length, 5.6 mm width, and 2 mm height.
- Supports operating temperature range from 0°C to 70°C for reliable performance.
- Low supply current draw of approximately 1 mA minimizing power consumption.
- Suitable for use in industrial, communication, and embedded systems requiring RS-232 line interfacing.
- Utilizes a minimum supply voltage of 3 V, with maximum voltage rating of 5.5 V for flexible integration.
Product Description
The MaxLinear SP3232EBCN-L/TR is a versatile 2-channel line transceiver specially designed for TTL logic systems. Housed in a 16-Pin SOIC surface-mount package, it operates efficiently with a minimum supply voltage of 3 volts up to 5.5 volts. This device belongs to the CMOS/TTL logic family, making it compatible with a wide range of digital interface circuits and embedded communication systems.
With an inverting polarity function and single-ended input, it converts signal levels to TTL output with a maximum propagation delay of 150 nanoseconds, ensuring swift data transmission. The device supports an operating temperature span from 0°C to 70°C, maintaining stable performance under typical commercial conditions.
The compact physical dimensions of 6.5 mm length, 5.6 mm width, and 2 mm height allow for space-efficient designs in industrial control, laboratory instruments, telecommunications interfaces, and automation equipment.
This line transceiver draws minimal current (1 mA supply current), contributing to low power system designs. It does not have any special automotive certifications but is robust enough for standard electronics manufacturing and communication applications.
Operates over a supply voltage range of 3 to 5.5 volts. Compatible with CMOS and TTL logic standards. Offers two line transceiver channels for serial line interface. 16-pin SOIC surface-mount package for compact PCB footprint.
Inverting output polarity and single-ended input configuration. Maximum propagation delay of 150 nanoseconds for efficient data processing. Supporting commercial temperature ranges from 0°C to 70°C. Low supply current minimizes overall power consumption.
This product is suitable for industrial, laboratory, telecommunications, and embedded system applications where line interface integrity and data conversion are critical. For more options in Line Interface ICs, explore other solutions within the Semiconductor category at EnvMart.
