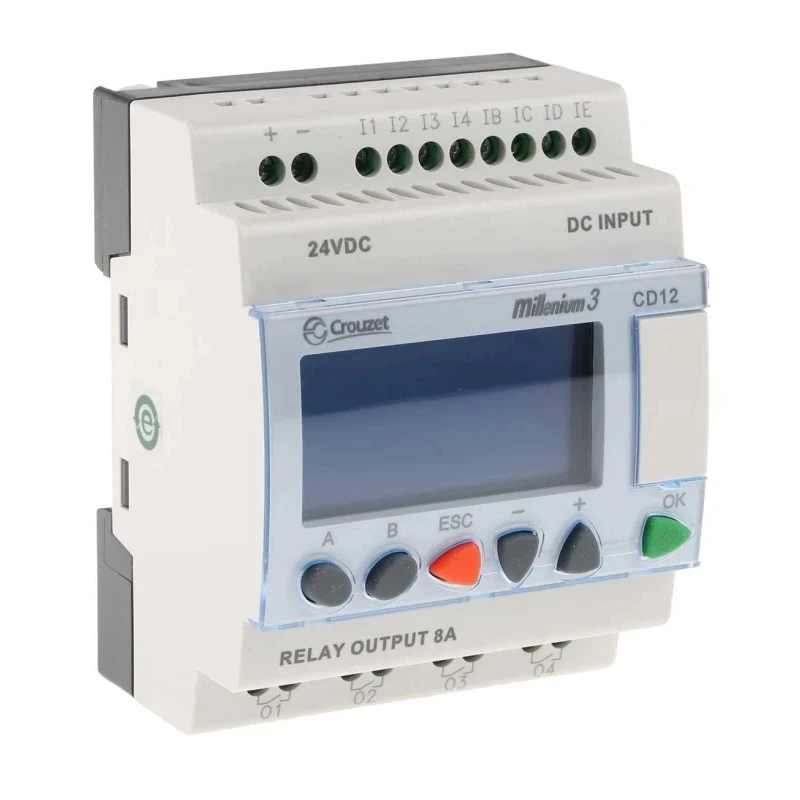

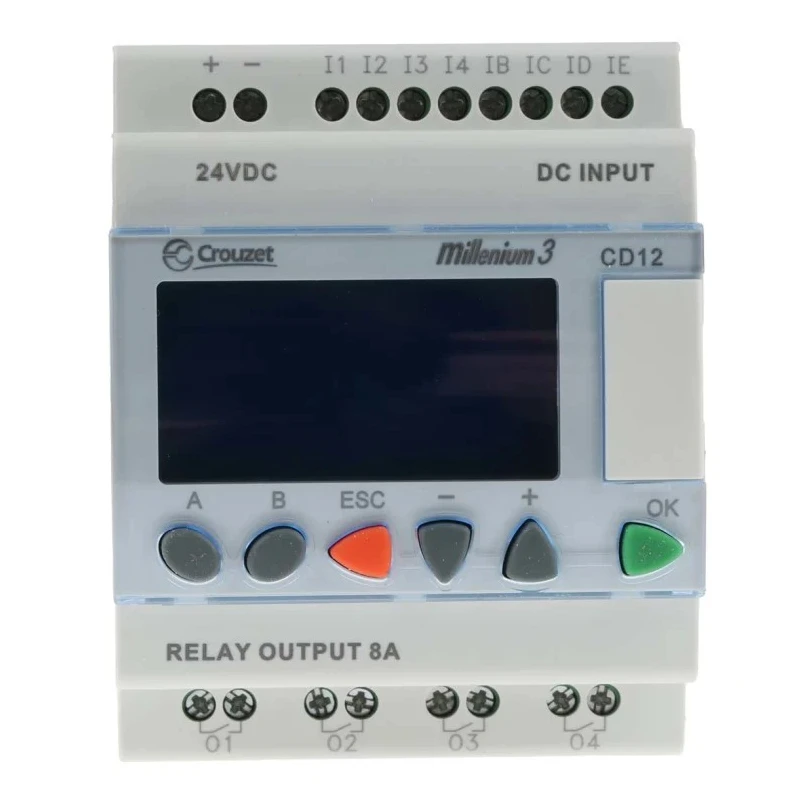

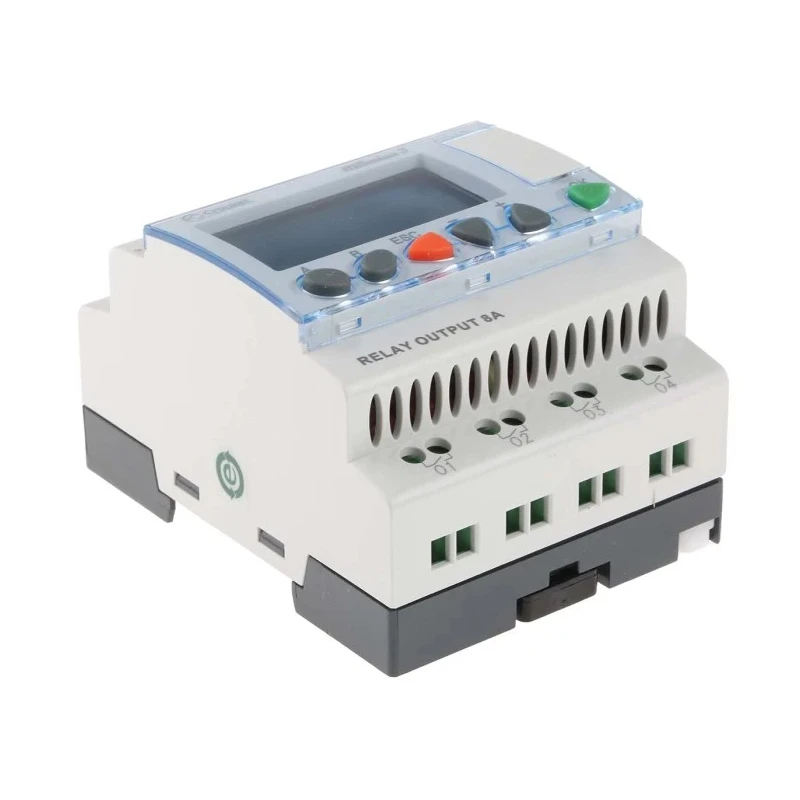

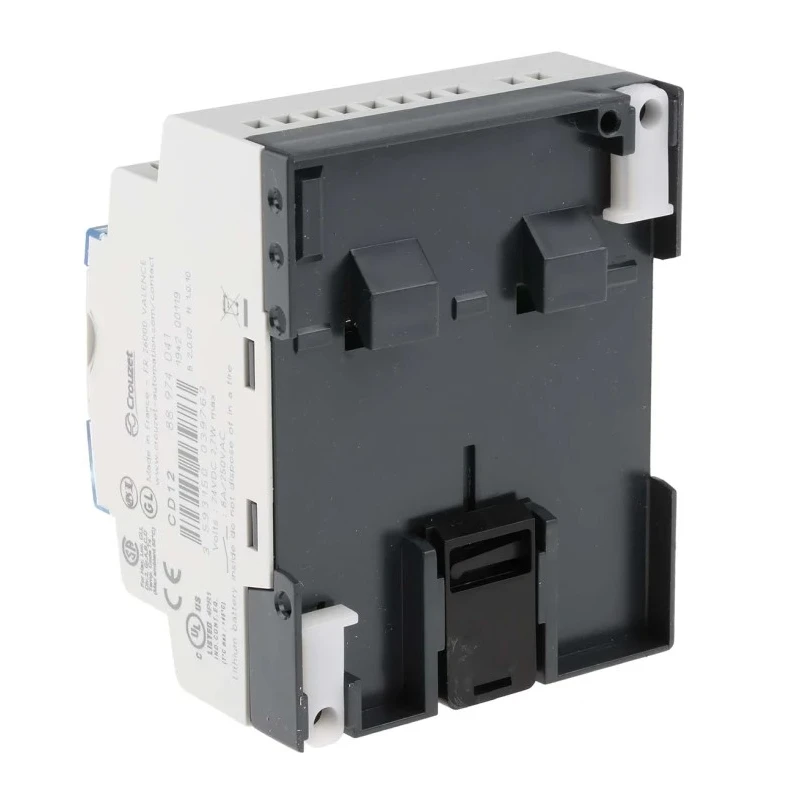

Crouzet CD12 Series Logic Control with 8 Digital and Analogue Inputs, 4 Relay Outputs, 24V DC Supply CD12

Crouzet CD12 Series Logic Control is a sophisticated industrial automation device tailored for controlling and monitoring machines with up to 50 I/Os. Featuring 8 digital and analogue inputs alongside 4 relay outputs with an 8A current rating, it ensures robust operation in a compact form factor measuring 71.2mm length, 107.6mm width, and 58mm depth.

This module operates at a 24V dc supply and includes battery backup to maintain critical information during power interruptions. Its user interface incorporates a highly visible blue LCD with four lines of 18 characters and configurable backlighting, providing clear operational feedback.

Programming is flexible with support for Sequential Function Chart (SFC), Ladder Logic, and Function Block Diagram (FBD) languages, making it suitable for a range of automation tasks including automatic barriers, doors, turnstiles, and access ramps.

Equipped with two communication ports that support serial and USB connections, the CD12 logic control integrates seamlessly within existing automation networks. It complies with IEC/EN 61000-6-4, IEC/EN 61000-6-2, IEC/EN 61000-6-3, and IEC/EN 61131-2 standards ensuring reliability and electromagnetic compatibility.

The device is designed for DIN Rail mounting, facilitating simple installation in industrial panels. It performs reliably over a temperature range of -20°C to 55°C, expanding its applicable environments in industrial and manufacturing settings.

Equipped with 8 digital and analogue inputs for diverse signal processing capabilities. Four relay outputs support switching up to 8A, suitable for controlling various loads. Includes battery backup to protect against data loss during power failures.

LCD display with backlighting for enhanced user interaction and status monitoring. Supports advanced programming languages for flexible application development. Compact DIN Rail mount design for easy integration into control panels.

Certified to multiple IEC/EN standards for safety and electromagnetic compatibility. Dual communication ports providing serial and USB interfaces. Operating temperature range supports diverse industrial environments. Manufactured in France to high-quality standards.

This Crouzet CD12 Logic Control module fits perfectly within the industrial automation and control domain, suitable for applications in manufacturing, process control, HVAC, and access control systems. It is designed to enhance efficiency, reliability, and maintainability of automated installations.
