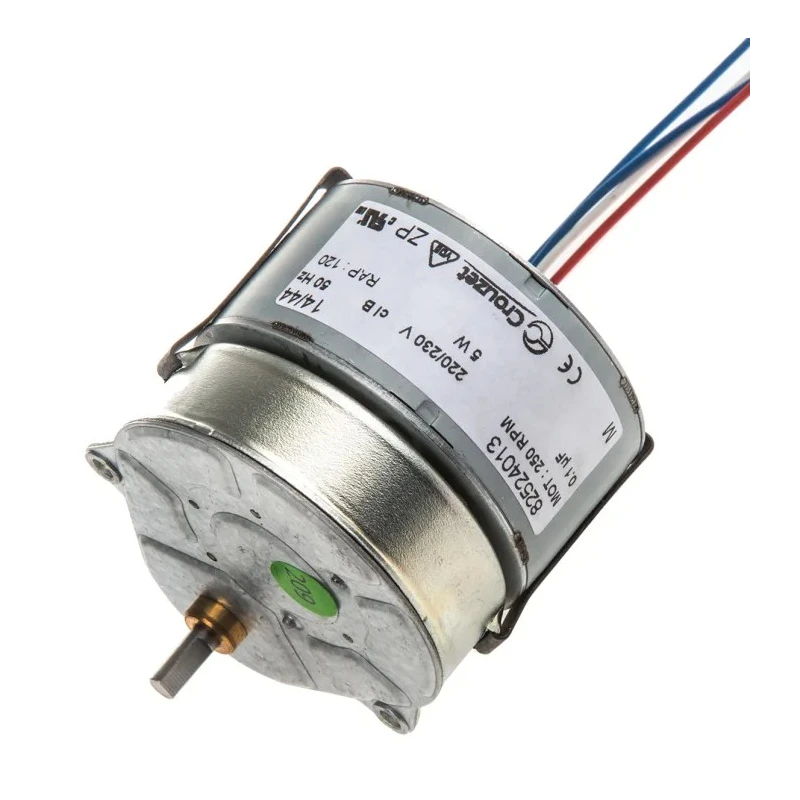

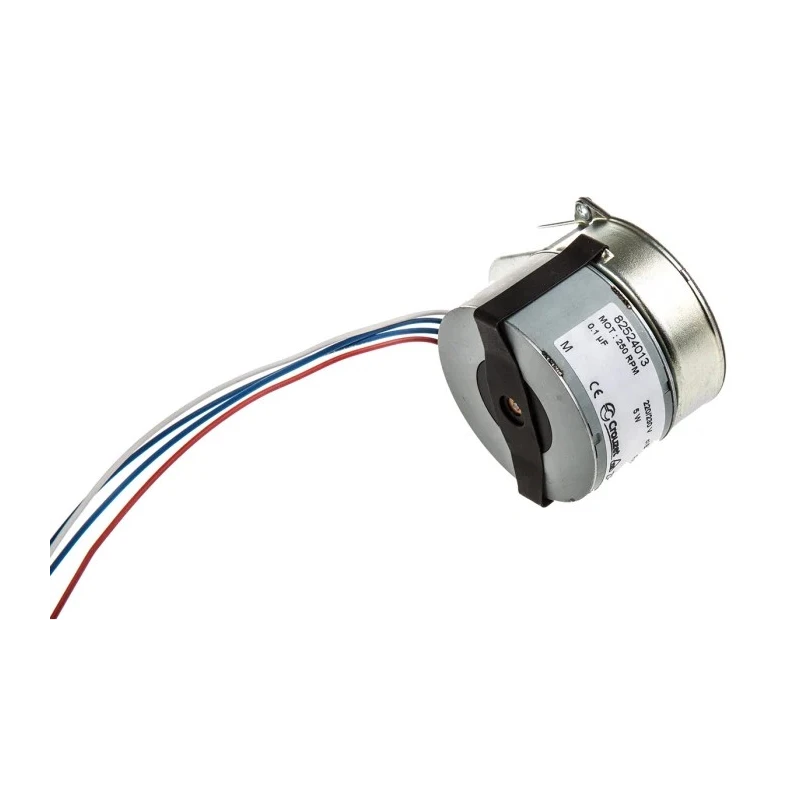

Crouzet 3.5 W Reversible Synchronous AC Geared Motor 230 V, 240 V Panel Mounting 82524013

Free Delivery in India | Lowest Global Shipping Charges

Crouzet 3.5 W Reversible Synchronous AC Geared Motor 230 V, 240 V Panel Mounting 82524013

Name: Crouzet 3.5 W Reversible Synchronous AC Geared Motor 230 V, 240 V Panel Mounting 82524013
Brand: CROUZET
SKU: 165078
Price: 171.16 USD
Availability: InStock



Category Gear Motors Brand CROUZET Condition New

Specifications

Country of Origin	France
Brand	Crouzet
Material	Steel

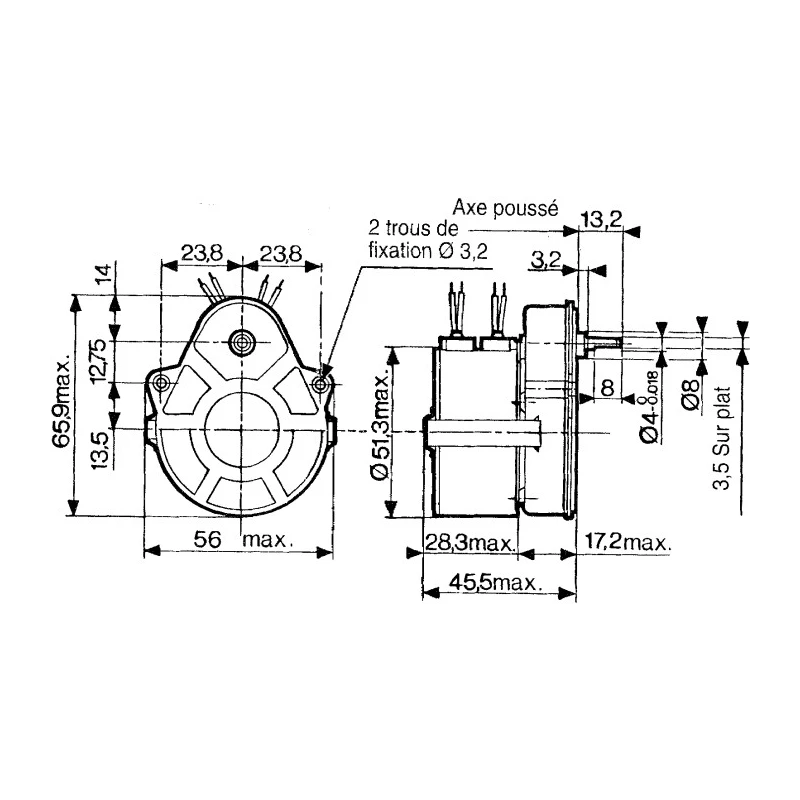

Length	45.5mm
Model	82524013
Depth	65.7mm
Width	56mm
Mount Type	Panel
Rotation	Reversible
Series	82 524
Power Rating	3.5W
Sub Type	Synchronous Geared
Output Speed	2.08rpm
Shaft Diameter	4mm
Shaft Length	10mm
Supply Voltage	230, 240V
Standards/Approvals	RoHS
Maximum Output Torque	0.5Nm

Key Features

The motor provides reversible rotation controlled by a capacitor, allowing clockwise and anti-clockwise operation.
It delivers an output speed of 2.08 rpm with a maximum output torque of 0.5 Nm.
Constructed with a steel shaft of 4 mm diameter and 10 mm length for reliable mechanical strength.

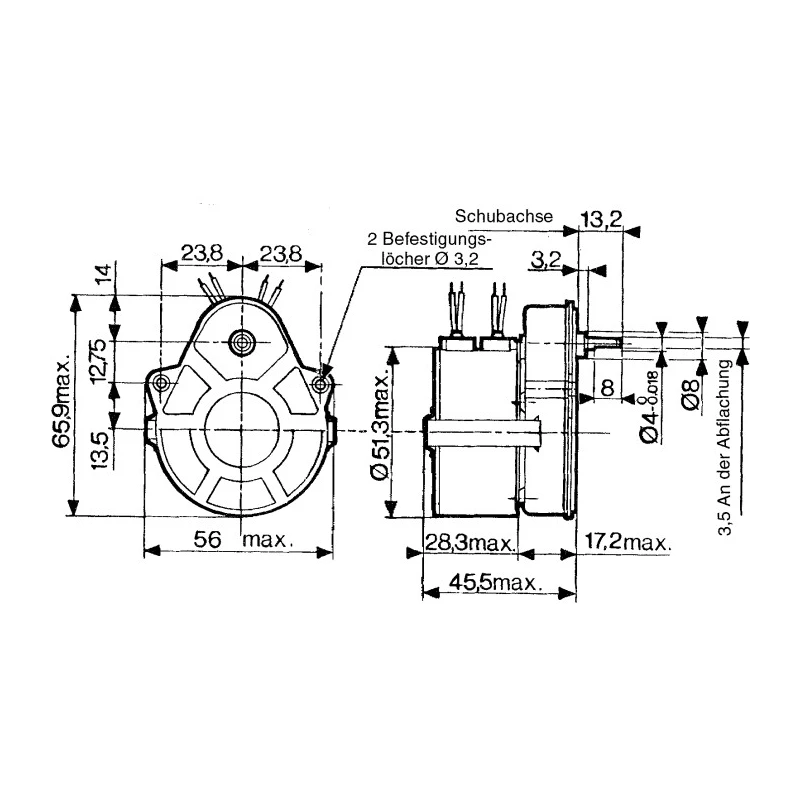

Compact dimensions with a length of 45.5 mm, width of 56 mm, and depth of 65.7 mm enable easy integration in control panels.
This synchronous AC motor maintains constant speed until an overload causes loss of synchronization and oscillation.
Suitable for applications such as water treatment systems, medical equipment, access control, and lifts.
Certified RoHS compliant, ensuring it meets environmental and safety standards.
Manufactured in France, assuring quality and durability in industrial and commercial environments.

Product Description

Crouzet 82524013 is a 3.5 W reversible synchronous AC geared motor designed for panel mounting, operating at supply voltages of 230 V and 240 V. This motor belongs to the Series 82 524 and is manufactured in France with compliance to RoHS standards.

The motor's reversible rotation enabled via an external phasing capacitor allows it to function both clockwise and anti-clockwise, making it versatile for various automated system needs. It maintains its synchronous speed consistently under normal operation and will cease synchronization with visible oscillation on overload conditions, adding a protective operational feature.

Its output speed is rated at a low 2.08 rpm which is ideal for precision applications requiring controlled motion. The motor delivers a maximum output torque of 0.5 Nm, providing adequate force for equipment within its power class.

Constructed with a durable steel shaft measuring 4 mm in diameter and 10 mm in length, it ensures strong mechanical attachment and longevity. The motor has compact physical dimensions of 45.5 mm length, 56 mm width, and 65.7 mm depth which facilitates easy installation in control panels and compact assemblies.

This AC geared motor is particularly well-suited for industrial and commercial sectors such as water treatment, medical device operation, automated access control systems, and elevator mechanisms. The motor requires a phasing capacitor for correct operation.

The motor offers reversible rotation through capacitor control. Synchronous operation ensures constant speed until overload. Compact size and panel mount for easy installation. Steel shaft construction provides robust mechanical stability.

Maximum output torque of 0.5 Nm for consistent performance. Applications include water treatment, medical equipment, access control, and lifts. Compliance with RoHS standards ensures environmental safety. Manufactured in France ensuring premium quality.

The Crouzet 82524013 is an efficient, reliable choice in synchronous AC geared motors for precision automation and control tasks. Browse the Motors & Pumps category on EnvMart for more industrial-grade motor solutions.
