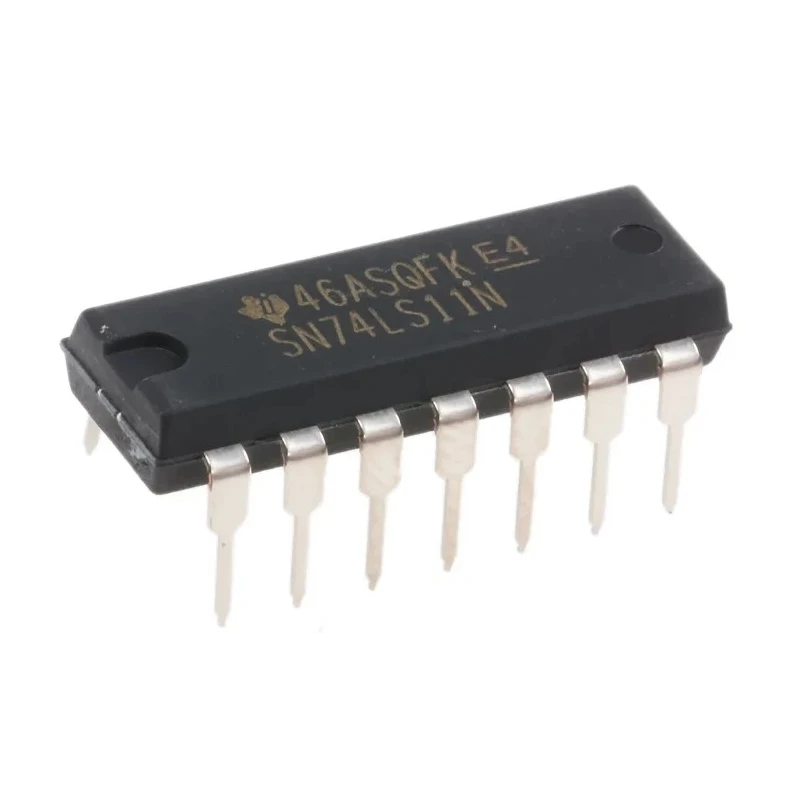

Texas Instruments 3 3-Input AND Logic Gate, 14-Pin PDIP SN74LS11N
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 19.3mm |
| Model | SN74LS11N |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Pin Count | 14 |
| Number of Elements | 3 |
| Maximum Supply Voltage | 5.25V |
| Logic Family | LS |
| Logic Function | AND |
| Minimum Supply Voltage | 4.75V |
| Maximum High Level Output Current | -0.4mA |
| Maximum Propagation Delay Time @ CL | 7.5ns |
| Maximum Low Level Output Current | 8mA |
| Number of Inputs per Gate | 3 |
Key Features
- This IC operates between 4.75V and 5.25V supply voltage for optimal performance.
- Maximum propagation delay time of 7.5 nanoseconds ensures high-speed logic operations.
- Designed with 14 pins in a PDIP package, facilitating easy through-hole PCB mounting.
- Operating temperature ranges from 0°C to 70°C for reliable use in various environments.
- Maximum low level output current is 8mA, meeting LS family electrical characteristics.
- Schmitt Trigger input is not present, maintaining standard logic input behavior.
- The device complies with no specific automotive standards or special approvals.
- Ideal for industrial, educational, and electronic circuit design applications.
Product Description
Texas Instruments SN74LS11N is a 3-input AND logic gate integrated circuit housed in a 14-pin PDIP package. This device belongs to the 74LS family of low-power Schottky logic ICs, which combine bipolar junction transistor technology with Schottky diode clamps to achieve the speed of original 74TTL logic with reduced power consumption.
The SN74LS11N features three independent AND gates each with three inputs, making it suitable for complex logic circuits requiring multi-input operations. This device supports a standard supply voltage range from 4.75V to 5.25V and is designed for through-hole mounting on printed circuit boards.
The maximum propagation delay is 7.5 nanoseconds at given load conditions, allowing for rapid switching speeds in digital logic applications. Operating temperatures from 0°C to 70°C ensure reliable performance in a variety of ambient environments and industrial conditions.
This logic gate IC does not incorporate Schmitt Trigger inputs and does not conform to automotive standards or any special industry approvals, focusing on general-purpose electronics use.
Typical applications include digital logic circuits in industrial electronics, educational kits, and prototyping of logical control systems. This IC operates between 4.75V and 5.25V supply voltage for optimal performance.
Features 3 independent 3-input AND gates for versatile logic operations. Housed in a 14-pin PDIP package suitable for through-hole mounting. Maximum propagation delay time of 7.5 nanoseconds supports high-speed operations.
Operates within a temperature range of 0°C to 70°C for industrial applications. Low power consumption characteristics typical of 74LS family logic ICs. Does not include Schmitt Trigger input functionality. Designed for general-purpose semiconductor applications in industrial and educational environments.
Explore more semiconductor and Logic Gate components from Texas Instruments and other leading manufacturers in the Electronics & Electricals section at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates between a minimum supply voltage of 4.75V and a maximum of 5.25V for optimal performance.
The maximum propagation delay time for the SN74LS11N is 7.5 nanoseconds, allowing for high-speed logic operations.
Each gate in this integrated circuit has three inputs, providing versatility for complex logic operations.
The SN74LS11N operates within a temperature range of 0°C to 70°C, ensuring reliable performance in various environments.
This integrated circuit is housed in a 14-pin PDIP package, designed for through-hole mounting on printed circuit boards.
The maximum low-level output current for this model is 8mA, which meets the electrical characteristics of the LS family.
No, this logic gate does not incorporate Schmitt Trigger inputs, maintaining standard logic input behavior.
The height of this integrated circuit is 4.57mm.
The length of this model is 19.3mm.
The SN74LS11N performs the AND logic function with three independent gates.
This logic gate is suitable for digital logic circuits in industrial electronics, educational kits, and prototyping of logical control systems.
The SN74LS11N is manufactured in India.
