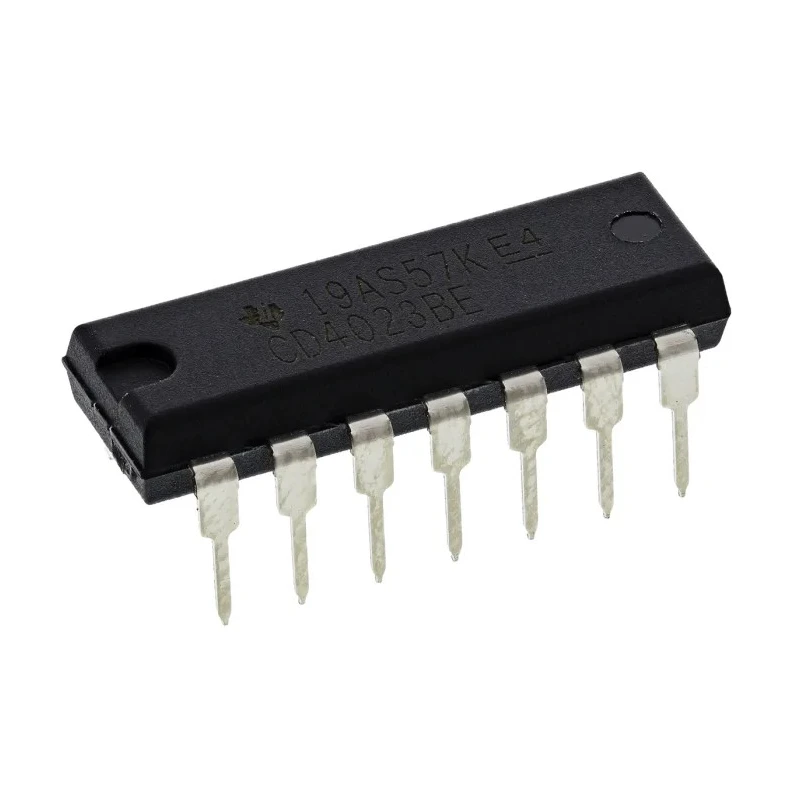

Texas Instruments 3 3-Input NAND Logic Gate, Through Hole Mount, 14-Pin PDIP CD4023BE

Texas Instruments CD4023BE is a 3-input NAND logic gate IC designed for through-hole mounting in a 14-pin PDIP package. It belongs to the CD40 series, featuring CMOS 4000 logic family technology that provides a wide operating voltage range from 3V to 18V and excellent switching characteristics.

This logic gate IC contains three independent 3-input NAND gates, each capable of performing robust logic functions with low power consumption, suitable for various electronic circuit designs. The maximum propagation delay time of 90 nanoseconds at a given capacitive load provides efficient signal processing speed.

The device operates reliably over a broad temperature range from -55°C to 125°C, making it suitable for demanding industrial and laboratory environments. It features a buffer-type output, ensuring stable output signal integrity without Schmitt trigger inputs.

Its maximum high-level output current is -4.2mA, and the low-level output current is 4.2mA, meeting the requisites for driving downstream logic components. The PDIP package format ensures easy integration into printed circuit boards using through-hole technology.

Originating from Malaysia, this IC maintains strict quality controls and complies with standard semiconductor specifications, although it does not carry specific standards or automotive certifications.

Features three 3-input NAND gates for versatile logic operations. Operates over a wide voltage range from 3V to 18V. Comes in a 14-pin PDIP package suitable for through-hole mounting. Offers fast propagation delay time of approximately 90ns at capacitive load.

Supports operating temperature range from -55°C to 125°C. Utilizes CMOS technology for low power consumption. Maximum output current of ±4.2mA ensures adequate drive capability. Ideal for industrial, laboratory, and electronic component applications requiring NAND logic functionality.

Includes features such as buffer-type output and no Schmitt trigger inputs.

This product is widely used in industrial control systems, laboratory instrumentation, electronic circuit design, and educational purposes. The Texas Instruments CD4023BE Logic Gate IC is suitable for assembly in electronic modules, automation equipment, and embedded systems requiring logic NAND gate functions. Explore more electronic components and semiconductor products in the Electronics & Electricals category at EnvMart.
