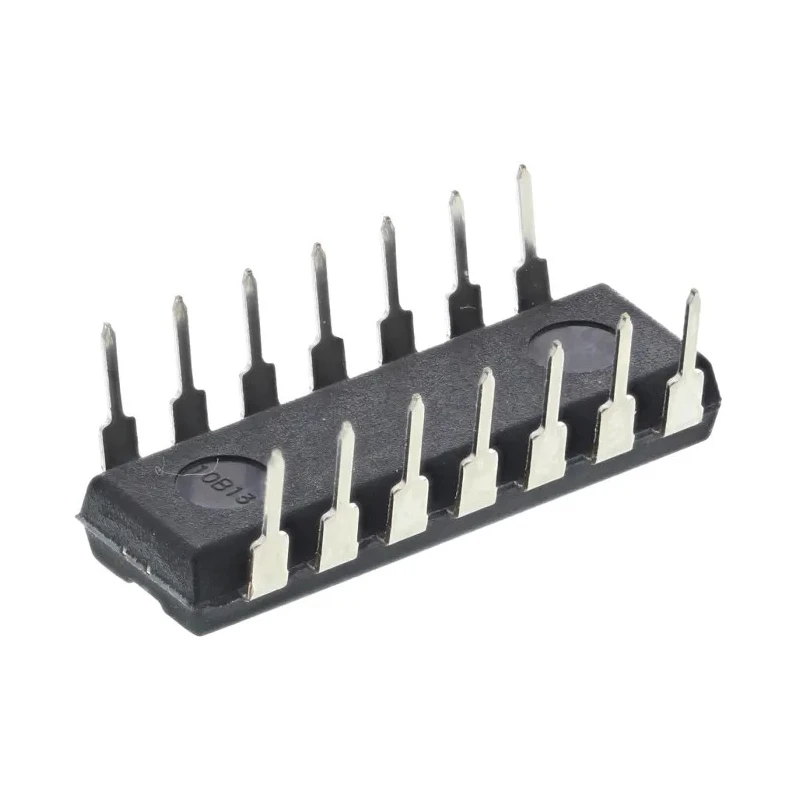

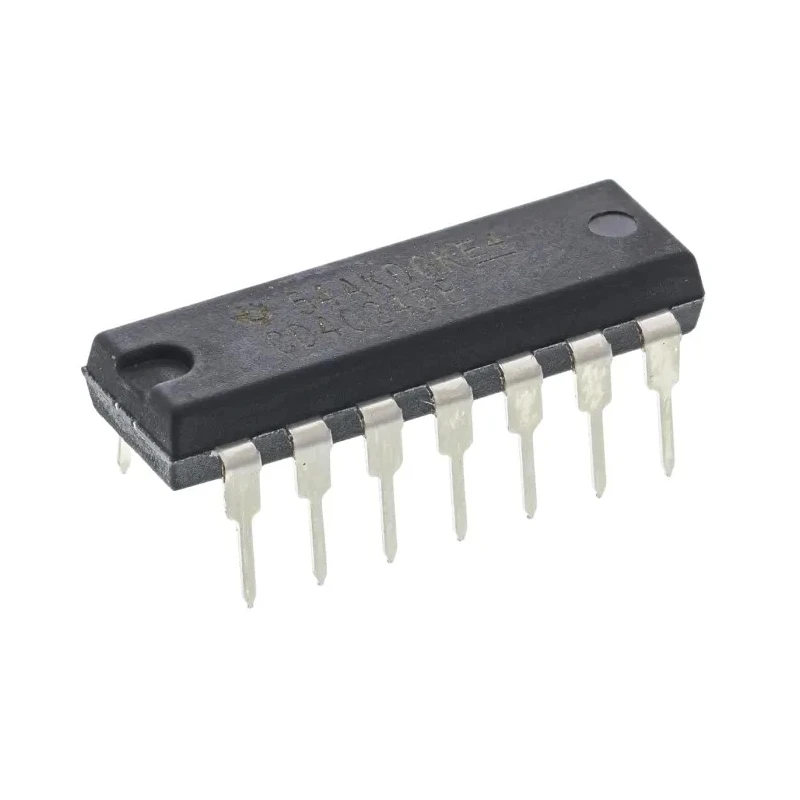

Texas Instruments Through Hole Binary Counter 7-Stage 4000 Logic Family 14-Pin PDIP CD4024BE
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 19.69mm |
| Model | CD4024BE |
| Mount Type | Through Hole |
| Series | CD4024B |
| Maximum Operating Temperature | 125°C |
| Number Of Stages | 7 |
| Package Type | PDIP |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Number of Elements | 1 |
| Maximum Supply Voltage | 18V |
| Logic Family | 4000 |
| Logic Function | Divider, Counter |
| Minimum Supply Voltage | 3V |
| Direction Type | Uni-Directional |
| Reset Type | Asynchronous |
| Counter Type | Binary |
| Wide operating voltage range | 3 to 18V |
| Counter IC Clock Frequency | 8 MHz (15V), 3.5 MHz (10V), 12 MHz (5V) |
| Preset Type | Asynchronous |
Key Features
- Operates within a wide voltage range of 3 to 18 volts.
- Functions as a binary counter with asynchronous reset and preset capabilities.
- Uni-directional counting with 7 stages and 14 pins for through hole mounting.
- Designed to operate reliably in temperatures ranging from -55°C to 125°C.
- Complies with RoHS standards ensuring environmental safety.
- Compact dimensions measuring 19.69 mm in length and 4.57 mm in height.
- Ideal for industrial, electronic design, and semiconductor laboratory applications.
Product Description
Texas Instruments CD4024BE is a 7-stage binary counter IC packaged in a 14-pin PDIP through hole format, part of the distinguished 4000 CMOS Logic Family. It features a wide operating voltage range from 3V up to 18V, supporting flexible use in varied electronic circuits requiring binary counting and division functions.
This counter IC provides asynchronous reset and preset functionality, enabling robust control in timing and sequencing applications. The device supports uni-directional counting, making it suitable for binary count accumulation in digital logic design.
The clock frequency capability varies according to supply voltage, reaching up to 8 MHz at 15V, 3.5 MHz at 10V, and 12 MHz at 5V, thus offering performance flexibility. Operating reliably within a temperature range of -55°C to 125°C, the CD4024BE suits demanding industrial and laboratory environments.
Compact physical dimensions of 19.69 mm length and 4.57 mm height allow for efficient PCB space utilization. The 14-pin Dual In-line Package facilitates through-hole mounting, preferred in prototyping and traditional electronic assembly methods.
Certified to RoHS standards, this IC ensures compliance with environmental and safety regulations. Typical applications include industrial counters, frequency division circuits, digital timing devices, and educational electronics laboratories.
Operates within a voltage range of 3 to 18 volts. Asynchronous reset and preset features offer flexible control. Supports uni-directional counting across 7 stages. High clock frequency suitable for various voltage levels.
Complies with RoHS environmental standards. Compact 14-pin PDIP through hole package for easy mounting. Wide temperature tolerance from -55°C to 125°C ensures durability. Applications include industrial and laboratory electronic counting systems.
Explore the Texas Instruments 4000 Series for reliable semiconductor solutions on EnvMart.
Explore more products in our Counter ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The CD4024BE operates within a voltage range of 3 to 18 volts.
The maximum clock frequency for the CD4024BE is 8 MHz at 15V, 3.5 MHz at 10V, and 12 MHz at 5V.
This model has compact dimensions measuring 19.69 mm in length and 4.57 mm in height.
The CD4024BE features 7 stages for counting.
It supports through-hole mounting with a 14-pin PDIP package type.
The operating temperature range for the CD4024BE is from -55°C to 125°C.
This model features asynchronous reset and preset capabilities for flexible control.
The CD4024BE is part of the 4000 CMOS Logic Family.
Typical applications include industrial counters, frequency division circuits, digital timing devices, and educational electronics laboratories.
The CD4024BE functions as a binary counter and divider.
Yes, the CD4024BE complies with RoHS standards, ensuring environmental safety.
The CD4024BE has a total of 14 pins.
