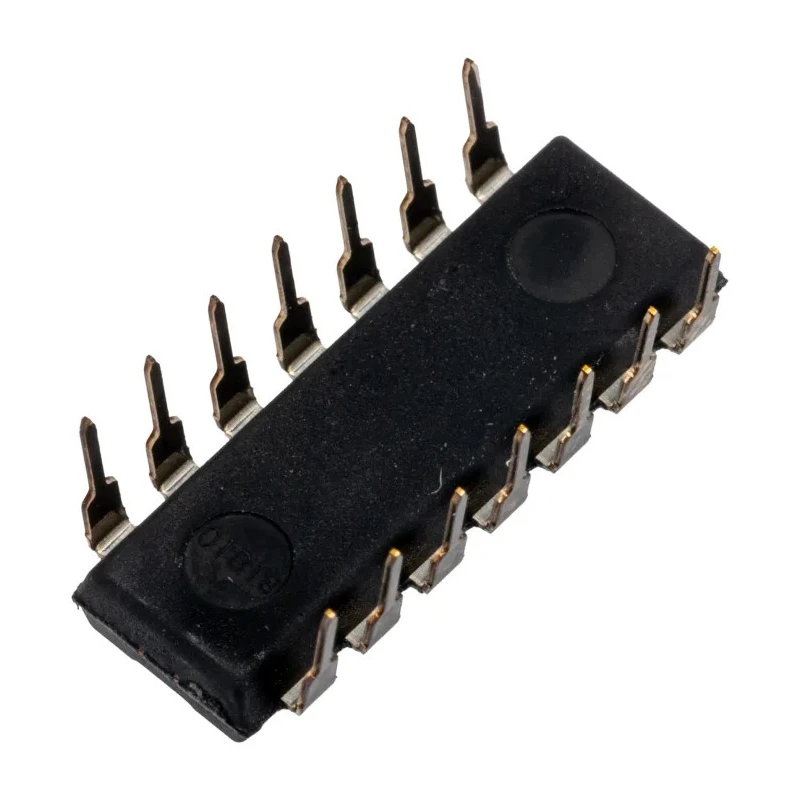

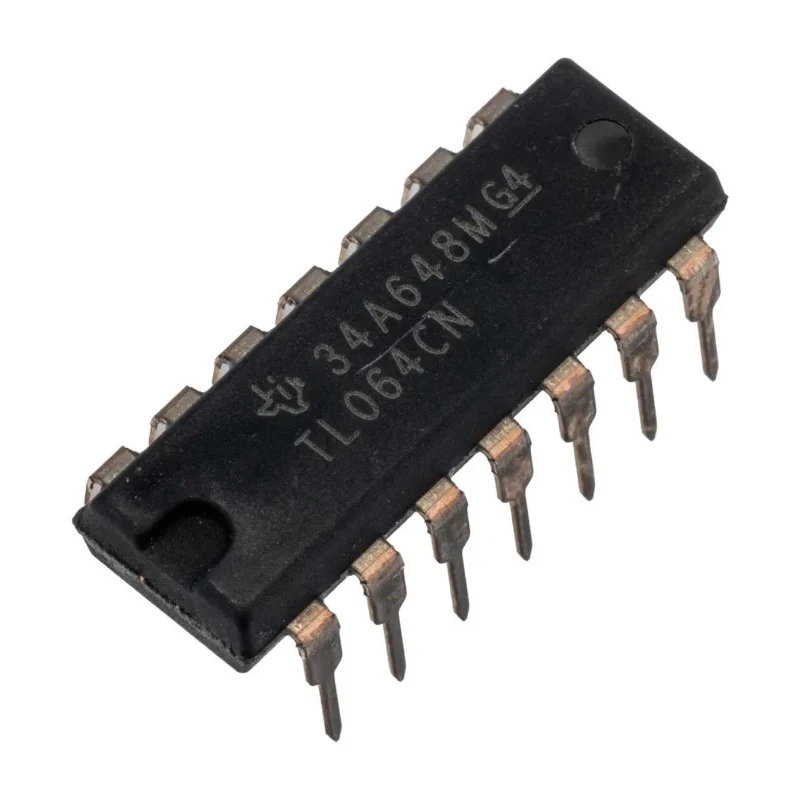

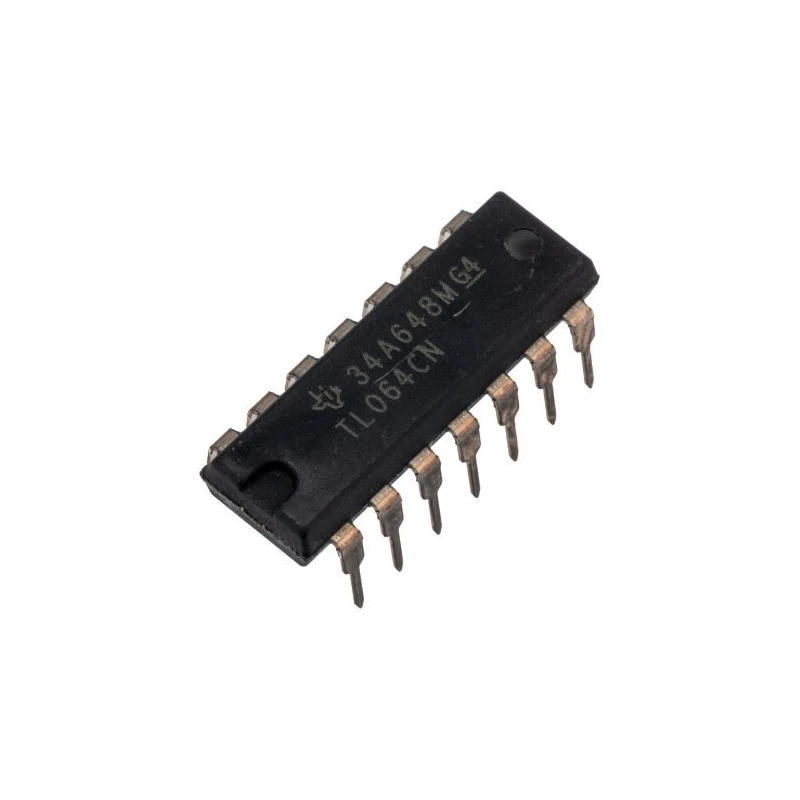

Texas Instruments Operational Amplifier JFET Input 1 MHz Bandwidth 14-Pin PDIP TL064CN
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 19.3mm |
| Model | TL064CN |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Series | TL064 |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 4 |
| Pin Count | 14 |
| Maximum Supply Voltage | 15V |
| Minimum Supply Voltage | 5V |
| GBP - Gain Bandwidth Product | 1MHz |
| Input Bias Current | 1 nA |
| Slew Rate | 3.5V/μs |
| Input Offset Current | 5 nA |
Key Features
- Offers low power consumption compared to the TL080 series.
- Features four channels with JFET input stages for high input impedance.
- Supports supply voltage range from 5V to 15V suitable for various applications.
- Has low input bias current of 1 nA and input offset voltage of 20 μV.
- Operates reliably in temperatures ranging from 0°C to 70°C.
- Includes a slew rate of 3.5 V/μs for fast signal response.
- Through-hole mount with standard PDIP package for easy PCB integration.
Product Description
Texas Instruments TL064CN is a low-power JFET input operational amplifier from the TL060 series, designed to provide superior performance with a significant reduction in power consumption compared to traditional TL080 family amplifiers. This four-channel amplifier offers a gain bandwidth product of 1 MHz and operates within a supply voltage range of 5 V to 15 V, making it versatile for various electronic circuit designs.
The device features a low input bias current of 1 nA and an input offset voltage of 20 μV, enhancing signal integrity and precision. It supports operation over a temperature range of 0°C to 70°C, suitable for typical commercial and industrial environments.
With a slew rate of 3.5 V/μs, TL064CN can handle rapid signal transitions effectively, making it ideal for audio, signal conditioning, and buffering applications. The 14-pin PDIP package facilitates through-hole mounting and ease of assembly on printed circuit boards.
Dimensions of this operational amplifier are 19.3 mm in length, 6.35 mm in width, and 4.57 mm in height, providing a compact footprint for integration in dense circuit layouts. Low power JFET input operational amplifier.
Gain bandwidth product of 1 MHz for versatile frequency response. Four independent amplifier channels in one package. Wide supply voltage range between 5 V and 15 V. Low input bias current and offset voltage ensuring high precision.
Suitable operating temperature range of 0°C to 70°C. Slew rate of 3.5 V/μs for fast operation. Standard 14-pin PDIP package with through-hole mounting.
This operational amplifier is widely used in electronic components, particularly within semiconductor amplifiers and signal conditioning circuits for industrial, laboratory, and consumer electronics applications. Its reliable performance and compact design make it a fundamental component in amplifier and comparator modules.
Explore more Operational Amplifiers and semiconductor components to enhance your design and project requirements at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TL064CN has a gain bandwidth product of 1 MHz, which allows for versatile frequency response in various applications.
This model operates within a supply voltage range of 5 V to 15 V, making it suitable for a variety of electronic circuit designs.
The TL064CN features four independent amplifier channels within a single package, allowing for multiple signal processing tasks.
It has a low input bias current of 1 nA, which helps enhance signal integrity and precision in applications.
The slew rate of this model is 3.5 V/μs, enabling it to handle rapid signal transitions effectively.
This operational amplifier measures 19.3 mm in length, 6.35 mm in width, and 4.57 mm in height, providing a compact footprint for integration.
The TL064CN operates reliably within a temperature range of 0°C to 70°C, suitable for typical commercial and industrial environments.
This operational amplifier comes in a standard 14-pin PDIP package, which facilitates through-hole mounting for easy PCB integration.
The input offset voltage for this model is 20 μV, contributing to its high precision in signal processing applications.
It is widely used in electronic components, particularly within semiconductor amplifiers and signal conditioning circuits for industrial, laboratory, and consumer electronics applications.
The maximum operating temperature for this operational amplifier is 70°C, ensuring reliable performance in various conditions.
The TL064CN has an input offset current of 5 nA, which further enhances its precision in applications.
