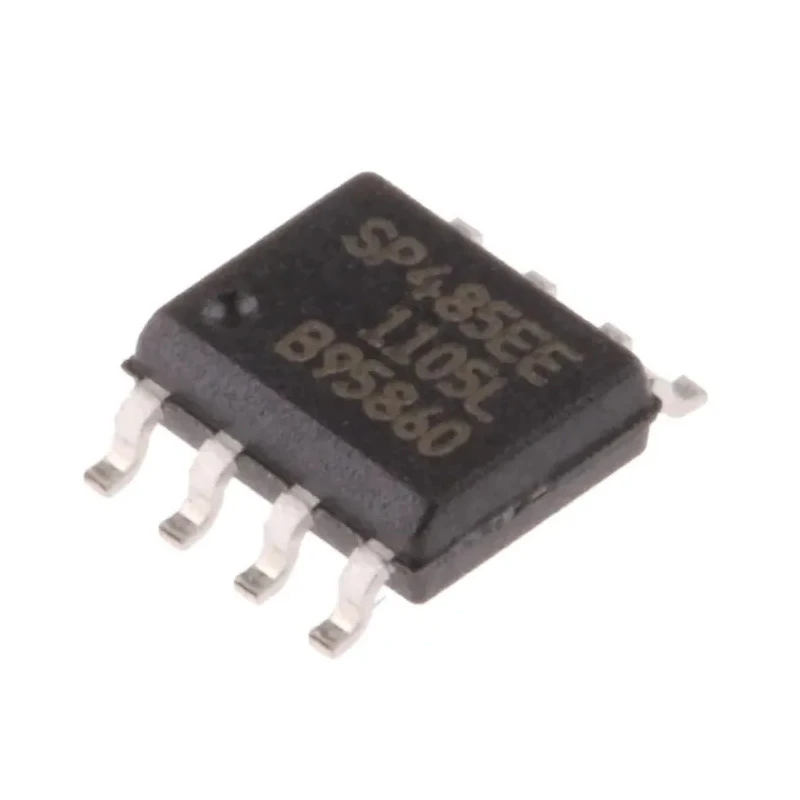

MaxLinear Line Transceiver Differential, 8-Pin SOIC, BiCMOS, 4.75-5.25V Supply, 900µA SP485EEN-L

MaxLinear SP485EEN-L is a line transceiver IC featuring differential input and output in a compact 8-pin SOIC package. It belongs to the BiCMOS logic family, ensuring a reliable and efficient interface suitable for industrial communication networks and embedded electronics applications.

This transceiver is engineered for RS-485 and RS-422 protocol compliance, offering robust data communication across long cable distances with enhanced noise immunity. It supports a voltage supply ranging from 4.75 to 5.25 volts while maintaining low power consumption at a typical supply current of 900 microamps, making it efficient for power-sensitive devices.

The device operates reliably within a wide temperature range of -40°C to +85°C, making it suitable for harsh environmental conditions often encountered in industrial, automotive, and outdoor equipment scenarios. With a maximum propagation delay of 60 nanoseconds, it supports high-speed signal transmission with minimal latency.

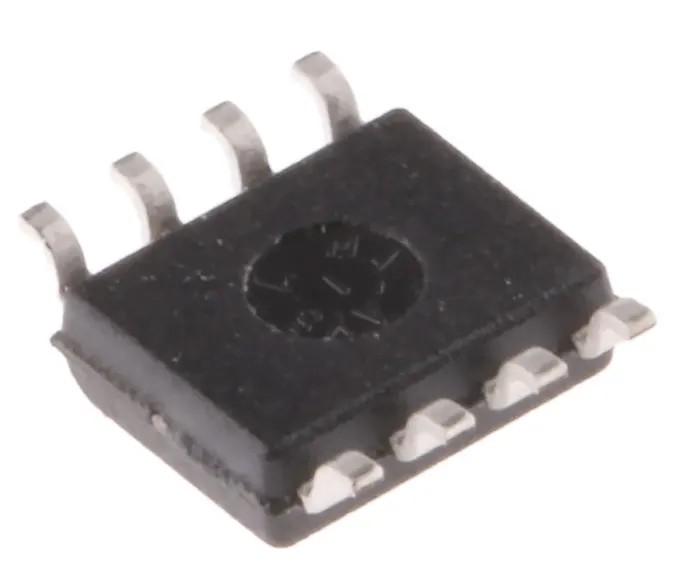

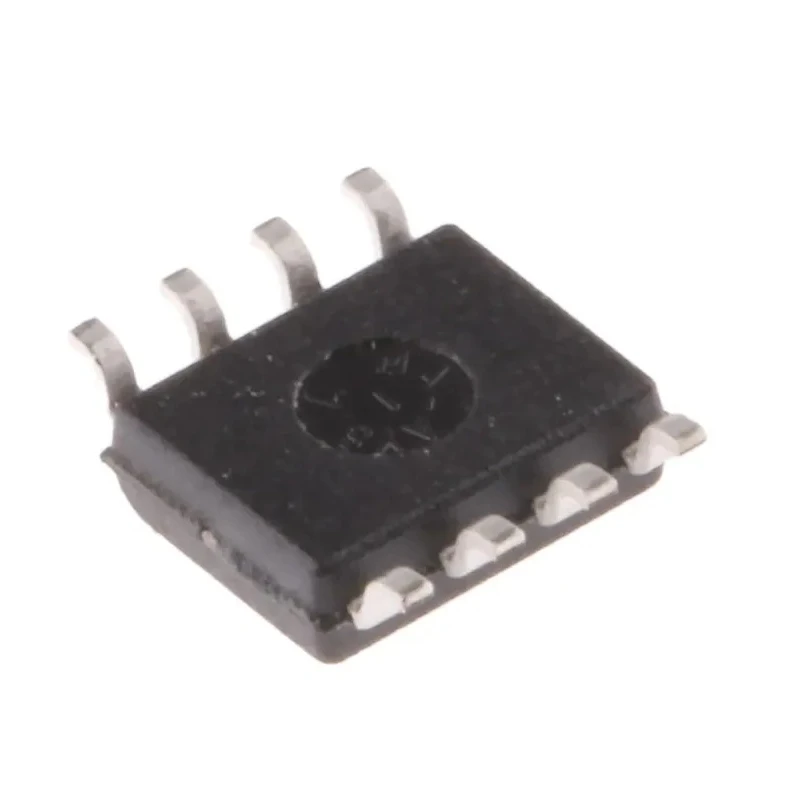

Mechanically, the SP485EEN-L measures 4.9mm in length, 3.9mm in width, and 1.75mm in height, conforming to surface mount technology (SMT) standards with an 8-pin SOIC package, facilitating easy integration on printed circuit boards.

The transceiver does not specify automotive or special standards approvals but is designed to meet general industrial requirements. Its differential input and output help minimize electromagnetic interference, providing stable communication in noisy environments typical of manufacturing, water treatment, HVAC, and automation sectors.

Operates at supply voltages from 4.75V to 5.25V and supports BiCMOS logic. Single channel line transceiver suitable for RS-485/RS-422 standards. Differential input and output reduce interference and increase signal integrity.

Compact 8-pin SOIC surface mount package measures 4.9 x 3.9 x 1.75 mm. Wide operating temperature range from -40°C to 85°C supports industrial applications. Low supply current of 900μA optimizes power consumption. Propagation delay of 60 nanoseconds supports efficient data transmission.

This product is ideal for integration in industrial communication systems, embedded control units, and instrumentation requiring reliable RS bus transceivers. Its compact size and low power consumption make it suitable for designing space-constrained electronic modules.
