Omron DIN Track Solid State Timer Multifunction, 4-Contact, 125 V dc 24V ac, 0.1 min to 10 h H3YN

Free Delivery in India | Lowest Global Shipping Charges

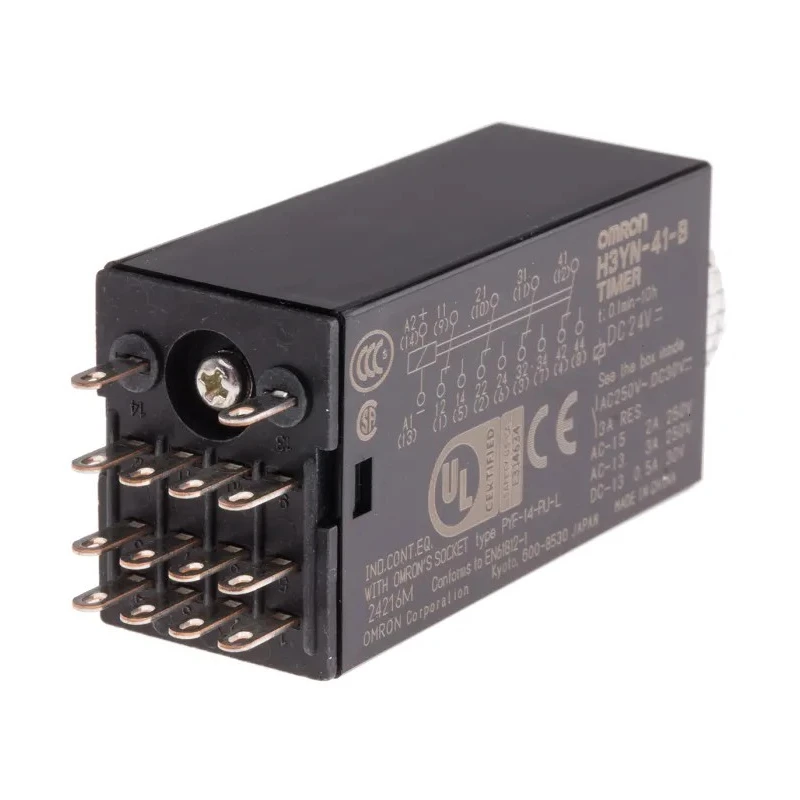

Omron DIN Track Solid State Timer Multifunction, 4-Contact, 125 V dc 24V ac, 0.1 min to 10 h H3YN

Name: Omron DIN Track Solid State Timer Multifunction, 4-Contact, 125 V dc 24V ac, 0.1 min to 10 h H3YN
Brand: Omron
SKU: 183449
Price: 91.7 USD
Availability: InStock



Category Timer Relays Brand Omron Condition New

Specifications

Country of Origin	China
Brand	Omron
Height	28mm
Function	Timer
Length	21.5mm
Model	H3YN
IP Rating	IP40
Mode	Multifunction
Width	56.6mm
Mount Type	DIN Track
Series	H3YN
Maximum Operating Temperature	55°C
Contact Configuration	4 NO/4 NC
Minimum Operating Temperature	-10°C
Time Range	0.1 min to 10 h
Terminal type	Push-in
Number of Contacts	4
Number of Timer Functions	Multifunction
Switching Voltage	250V ac
Contact Current	3A
Supply DC Voltage	125 V dc
Supply AC Voltage	24V ac

Key Features

Provides precise timing flexibility from 0.1 minutes up to 10 hours.
Equipped with four NO and four NC contacts for versatile switching options.
Supports contact current rating of 3 A and switching voltage up to 250 V AC.
Mounts efficiently on DIN rails with push-in terminal for rapid wiring.
IP40 rated enclosure ensures protection suitable for indoor panel installations.
Designed for multifunction timing operations replacing multiple single-function timers.
Operates within ambient temperature range from -10°C to 55°C for reliable industrial use.
Complies with standards including EN 61812-1, UL 508, IEC 60664-1, CSA C22.2 No. 14, Lloyds, CCC, and CE.

Product Description

Omron H3YN DIN Track Solid State Timer multifunction device with 4 contacts supports 125 V DC and 24 V AC operation within a timing range from 0.1 minutes to 10 hours. It is designed to deliver precise control for industrial automation and electrical systems requiring flexible timing functions.

This timer mounts securely on DIN rails using a push-in terminal type, enabling tool-free conductor connections and rapid panel installations. The compact form factor measuring 56.6 mm width, 28 mm height, and 21.5 mm length allows space-efficient mounting within control cabinets.

Featuring four normally open and four normally closed contacts rated at 3 A and switching voltage capability of up to 250 V AC, this timer accommodates moderate load switching and versatile application needs. It is enclosed to meet IP40 standards, providing protection suitable for indoor environments.

Operating reliably in temperatures ranging from -10°C to 55°C, the H3YN timer meets several recognized standards and approvals, including EN 61812-1, UL 508, IEC 60664-1, CSA C22.2 No. 14, Lloyd’s Register certification, CCC, and CE marking, ensuring safety and compliance in industrial use.

Recommended for sequencing control in PLC-assisted machinery, conveyor system delays, cyclic output in test rigs, endurance testing, staged power control in HVAC systems, and relay logic in electrical distribution panels, this multifunction timer offers broad compatibility and dependable performance.

Precise timing from 0.1 minute to 10 hours. Four NO and four NC contacts for flexible switching. 3 A contact current and 250 V AC switching capability. DIN rail mounting with push-in terminal for easy wiring. IP40 enclosure suitable for indoor panel installation.

Multifunction timer replaces multiple single-function devices. Operational ambient temperature from -10°C to 55°C. Certified to international safety standards including EN, UL, IEC, CSA, Lloyd’s, CCC, CE. Explore the Omron Timer Relays category at EnvMart for a comprehensive selection of industrial automation control devices designed to enhance system reliability and functionality.
