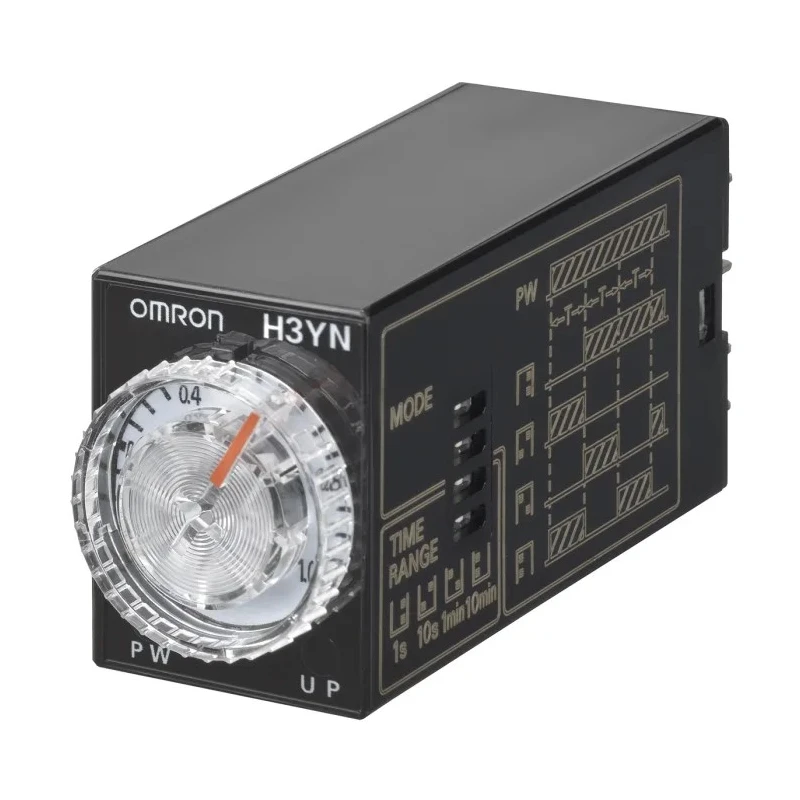

Omron Multifunction Panel Timer Relay, Panel Mount, 4 NO/4 NC Contacts, 125 V DC, 200-230 V AC, 0.1 s to 10 min, IP40 H3YN

Free Delivery in India | Lowest Global Shipping Charges

Omron Multifunction Panel Timer Relay, Panel Mount, 4 NO/4 NC Contacts, 125 V DC, 200-230 V AC, 0.1 s to 10 min, IP40 H3YN

Name: Omron Multifunction Panel Timer Relay, Panel Mount, 4 NO/4 NC Contacts, 125 V DC, 200-230 V AC, 0.1 s to 10 min, IP40 H3YN
Brand: Omron
SKU: 183442
Price: 91.68 USD
Availability: InStock



Category Timer Relay Brand Omron Condition New

Specifications

Country of Origin	China
Brand	Omron
Height	28mm
Function	Multifunction
Length	21.5mm
Model	H3YN
IP Rating	IP40
Mode	Multifunction
Width	56.6mm
Mount Type	Panel
Series	H3YN
Maximum Operating Temperature	55°C
Contact Configuration	4 NO/4 NC
Minimum Operating Temperature	-10°C
Time Range	0.1 s to 10 min
Terminal type	Push-in
Number of Contacts	4
Number of Timer Functions	Multifunction
Switching Voltage	250V
Contact Current	3A
Supply DC Voltage	125 V
Supply AC Voltage	200, 230V ac

Key Features

Panel mount configuration with push-in terminals ensures secure and fast installation.
Multifunction timer capabilities offer versatile control modes for various industrial applications.
Supports switching voltage up to 250 V and contact current rating of 3A per contact.
Operates reliably within a temperature range of -10°C to 55°C, with IP40 protection rating.
Compact size with dimensions 56.6 mm width, 28 mm height, and 21.5 mm length.
Complies with multiple international standards, including UL 508, IEC 60664-1, CE, and CSA C22.2 No. 14.
Ideal for sequencing motors, solenoids, delayed starts, alarms, and automated control systems.

Product Description

Omron H3YN-4-B AC200-230 is a multifunction panel timer relay designed for precise time control in industrial automation and electrical systems. It features a panel mount type with a compact form factor measuring 56.6 mm in width, 28 mm in height, and 21.5 mm in length, making it suitable for integrated control panels.

The relay supports a dual supply voltage configuration of 125 V DC and 200-230 V AC, allowing flexible deployment in diverse control environments. It delivers multifunction timing options across a broad time range from 0.1 seconds up to 10 minutes, enabling accurate delayed start, sequencing, and timed shutdown functions.

The contact configuration includes 4 normally open (NO) and 4 normally closed (NC) contacts rated at 3 A each, suitable for moderate load switching. It can switch voltages up to 250 V, making it compatible with typical industrial control circuits. The push-in terminal design facilitates quick and reliable wiring within panel setups.

Operating safely within temperatures from -10°C to 55°C, the relay is rated IP40, protecting its internal mechanisms against dust and solid particles in enclosed environments. It complies with a range of international certifications and standards, ensuring dependable performance and compliance in industrial installations.

Applications include sequencing motors and solenoids in control cabinets, delayed start of conveyor systems, timed energisation of alarms and indicator circuits, and use in relay logic for staged power distribution. This relay is also suited for testing rigs requiring repeatable time delays.

Panel mount with push-in terminals for secure electrical connection. Multifunction timing with time range of 0.1 s to 10 minutes. 4 NO and 4 NC contacts rated for 3 A current switching. Supports 125 V DC and 200-230 V AC supply voltages.

Compact size with 56.6mm width, 28mm height, and 21.5mm length. IP40 rated protection and operating range of -10°C to 55°C. Conforms to UL 508, IEC 60664-1, CE, CSA, Lloyds, and other standards.

Omron timer relays are widely used in industrial automation, electrical manufacturing, HVAC control panels, and other commercial applications requiring reliable, multifunctional time control solutions. Discover more Omron products in the Timer Relay category on EnvMart for comprehensive automation controls.
