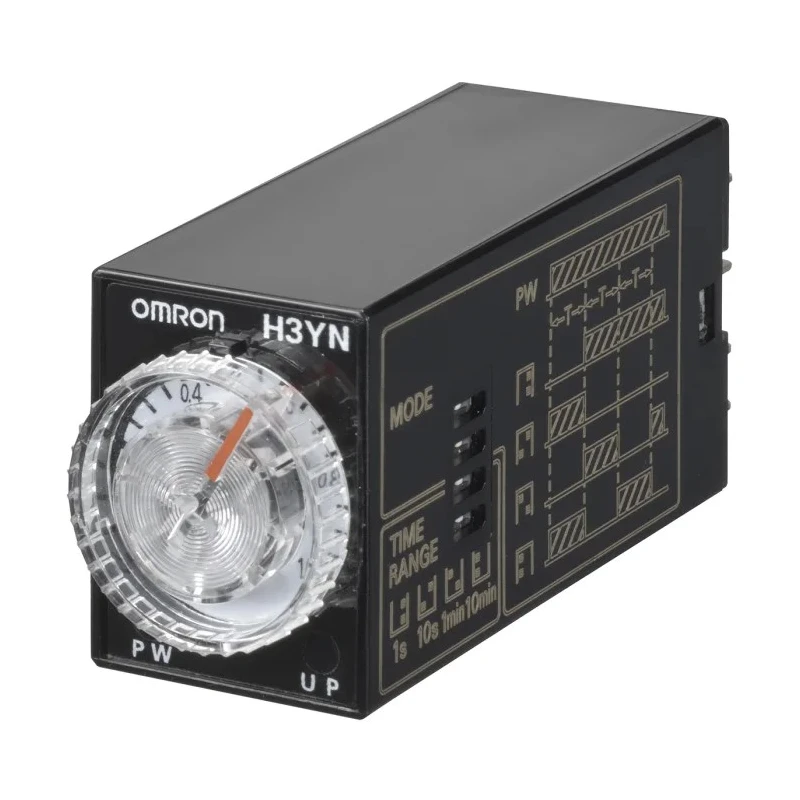

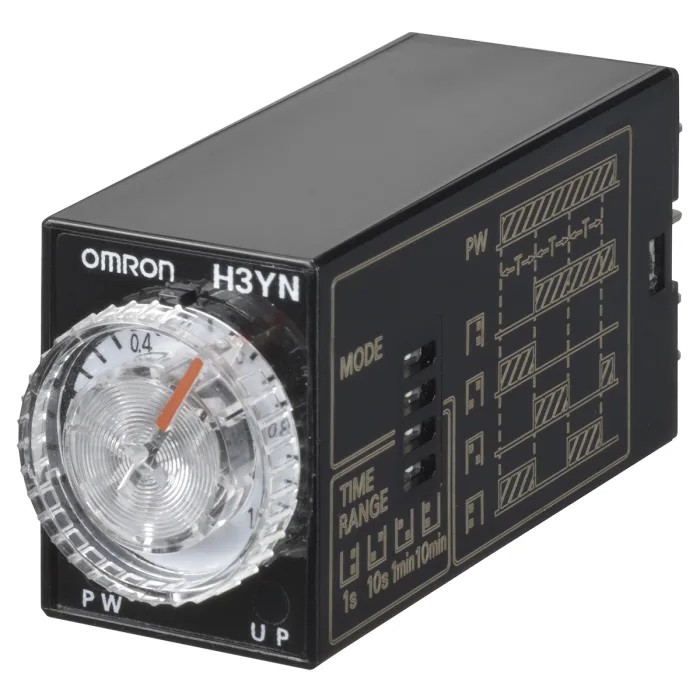

Omron Multifunction Solid State Timer Relay with DPDT 4-Contact, 125 V dc, 24V ac Supply, 0.1 s to 10 min Timing Range H3YN

Name: Omron Multifunction Solid State Timer Relay with DPDT 4-Contact, 125 V dc, 24V ac Supply, 0.1 s to 10 min Timing Range H3YN
Brand: Omron
SKU: 183439
Price: 81.77 USD
Availability: InStock



Category Timer Relays Brand Omron Condition New

Specifications

Country of Origin	China
Brand	Omron
Height	28mm
Function	Timer
Length	21.5mm
Model	H3YN
IP Rating	IP40
Mode	Multifunction
Width	56.6mm
Mount Type	DIN Track
Series	H3YN
Maximum Operating Temperature	55°C
Contact Configuration	DPDT
Minimum Operating Temperature	-10°C
Time Range	0.1 s to 10 min
Terminal type	Push-in
Number of Contacts	4
Number of Timer Functions	Multifunction
Switching Voltage	250V ac
Contact Current	5A
Supply DC Voltage	125 V dc
Supply AC Voltage	24V ac

Key Features

Compact DIN track mounting provides easy installation and replacement.
Operates with 125 V DC and 24 V AC supply voltages for versatile control.
Multifunction timer supports multiple timing functions for diverse applications.
Contact current rating up to 5 A allows switching of moderate AC and DC loads.
Push-in terminals ensure secure and quick wiring connections.
Operating temperature range from -10°C to 55°C suits typical industrial environments.
IP40 rated enclosure protects against solid objects, ensuring reliable performance.
Complies with IEC 60664-1, CCC, CSA C22.2 No. 14, Lloyds, EN 61812-1, CE, and UL 508 standards.

Product Description

The Omron H3YN-2-B AC24 is a high-quality multifunction solid state timer relay designed for industrial automation and control panel applications. It features a compact design that clips onto a standard DIN rail, facilitating quick installation and maintenance. With a timing range from 0.1 second to 10 minutes, it offers precise control for various timed operations.

This timer supports both 125 V DC and 24 V AC supply voltages, providing flexibility for different control systems. The device is equipped with DPDT (Double Pole Double Throw) contacts rated for 5 A current and can switch voltages up to 250 V AC, making it suitable for controlling moderate AC and DC loads typically found in industrial equipment.

Its IP40-rated enclosure safeguards against solid object ingress, ensuring dependable operation within factory and indoor environments. The push-in terminal design allows for reduced wiring time and enhanced connection security, improving overall installation efficiency.

The timer relay meets strict international safety and performance standards including IEC 60664-1, CCC, CSA C22.2 No. 14, Lloyds Register approvals, EN 61812-1, CE marking, and UL 508 certification. It is built to operate reliably within an ambient temperature range of -10°C to 55°C, making it ideal for standard industrial settings.

Common applications include sequencing pneumatic valve actuation, timing control of conveyor start and stop operations, delay functions in motor control and interlocks, and time-based signalling or lighting in industrial facilities. This timer relay is an essential component for automation, manufacturing, and control panel setups requiring dependable timed switching.

Compact DIN rail mounting for easy integration. Multifunction timing from 0.1 s to 10 min. DPDT 4-contact configuration rated for 5 A current. Push-in terminal connections for fast wiring. Wide operating temperature range of -10°C to 55°C.

IP40 protection class enclosure. Supports 125 V DC and 24 V AC supply voltages. Switching capability up to 250 V AC. Complies with multiple international standards and safety approvals. Explore the comprehensive range of Omron Timer Relays and industrial automation components on EnvMart for reliable control solutions.
