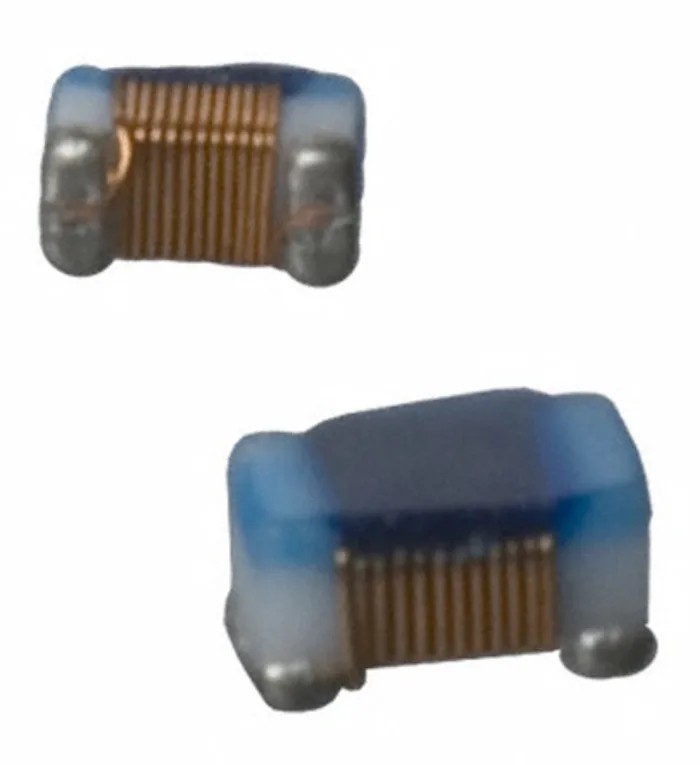

Murata Wirewound Surface Mount Inductor with Ferrite Core 0.16 μH ±5% 1 A DC Current 1608 Case LQW18CNR16J00D

Free Delivery in India | Lowest Global Shipping Charges

Murata Wirewound Surface Mount Inductor with Ferrite Core 0.16 μH ±5% 1 A DC Current 1608 Case LQW18CNR16J00D

Name: Murata Wirewound Surface Mount Inductor with Ferrite Core 0.16 μH ±5% 1 A DC Current 1608 Case LQW18CNR16J00D
Brand: Murata
SKU: 183319
Price: 0.15 USD
Availability: InStock



Category Surface Mount Inductors Brand Murata Condition New

Specifications

Country of Origin	Japan
Brand	Murata
Height	0.8mm
Length	1.6mm
Model	LQW18CNR16J00D
Depth	0.8mm
Packaging	Paper Tape
Series	LQW
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Core Material	Ferrite
Inductance	0.16μH
Standards/Approvals	RoHS
Package/Case	1608
Maximum DC Current	1A
Pin Count	2
Maximum DC Resistance	100mΩ
Inductance Tolerance	±5 %
Termination Style	Solder
Inductor Construction	Wirewound

Key Features

Features a compact 1608 case size measuring 1.6mm × 0.8mm × 0.8mm.
Constructed with a wirewound inductor design providing low DC resistance of 100mΩ.
Operates reliably within a temperature range from -40°C to 85°C.
Termination style is solder compatible for surface mount PCB assembly.
Complies with RoHS environmental standards for safe electronic use.
Core material is high-quality ferrite ensuring high Q value and stable performance.
Packaged in paper tape suitable for automated pick-and-place manufacturing.
Ideal for RF matching and choke coil applications supporting high current levels.

Product Description

Murata LQW18CNR16J00D is a wirewound surface mount inductor featuring a ferrite core designed for advanced electronic applications. This SMD chip inductor provides an inductance of 0.16 μH with a tolerance of ±5%, supporting a maximum DC current of 1 A. The compact 1608 package measures 1.6mm in length, 0.8mm in depth, and 0.8mm in height, making it suitable for high-density PCB assemblies.

Constructed with a wirewound technique, this inductor offers low DC resistance of 100mΩ, contributing to minimal power losses and enhanced circuit efficiency. It operates efficiently in industrial temperature ranges from -40°C to 85°C, ensuring reliability in harsh environments.

The termination style uses solder, compatible with standard surface mount assembly processes, and the components are supplied on paper tape packaging optimized for automated manufacturing. Complying with RoHS standards, the inductor meets important environmental directives for reduced hazardous substances.

The ferrite core provides a high Q value allowing excellent attenuation within filter pass bands. These inductors are commonly used in RF antenna matching circuits to maintain transmission and reception sensitivity, and they function well as choke coils under high current conditions.

Compact 1608 SMD package with precise mechanical dimensions. Strong attenuation characteristics from high Q value wirewound construction. Stable operation across wide temperature and current ranges. Solder termination for reliable surface mount assembly.

RoHS compliant ensuring eco-friendly electronic manufacturing. Ferrite core guarantees consistent inductance and low resistance. Suitable for RF matching and choke coil applications. Paper tape packaging supports automated board assembly processes.

This inductor is a robust component for electronic manufacturing, laboratory equipment, telecommunications, and automotive electronics. Discover the full range of Surface Mount Inductors by Murata at EnvMart to enhance your projects and production capabilities.
