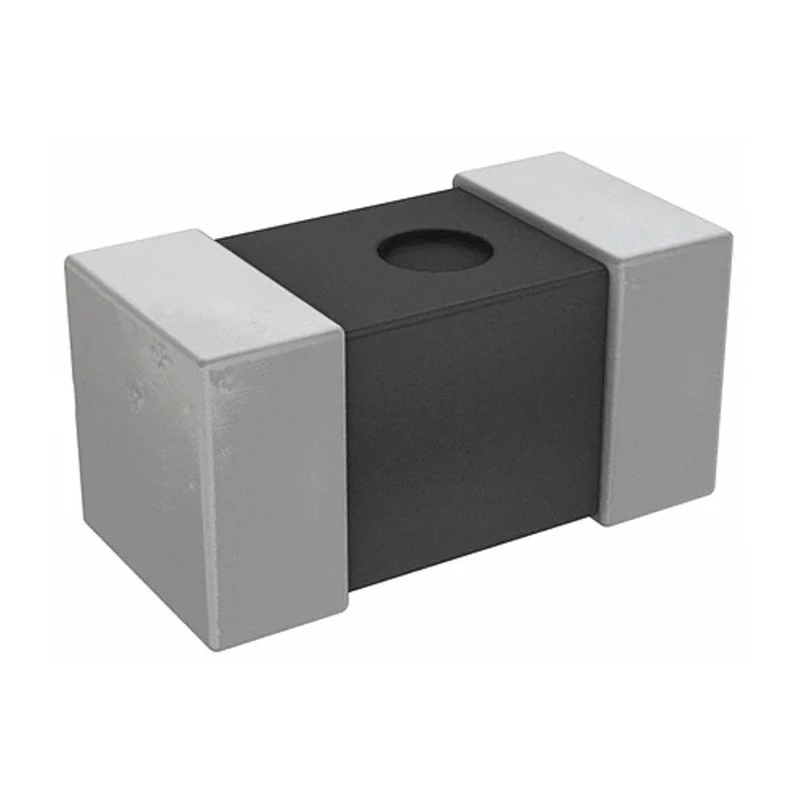

Murata 0201 Shielded Surface Mount Inductor Non-Magnetic Core 3.3 nH Film ±0.1 nH 450 mA Idc Q:14 LQP03TN3N3B02D

Murata LQP03TN3N3B02D is a precision 0201 shielded surface mount inductor with a non-magnetic core designed for advanced electronic applications requiring miniature form factor and high-frequency stability. Offering an inductance of 3.3 nH with a tight tolerance of ±0.1 nH, this film-type inductor features low DC resistance of 250 mΩ and a maximum rated DC current of 450 mA, making it ideal for sensitive signal applications.

Its compact dimensions of 0.6 mm length, 0.3 mm width, and 0.3 mm height facilitate use in densely packed circuits on PCBs. The device supports a maximum self-resonant frequency of 8 GHz and a minimum quality factor of 14, providing low loss and efficient signal integrity for RF circuits commonly found in mobile phones, Bluetooth modules, power amplifiers (PA), antennas (ANT), surface acoustic wave (SAW) filters, and voltage-controlled oscillators (VCOs).

The LQP series utilizes a film inductor construction with a non-magnetic core to maintain performance consistency under varying electrical and environmental conditions. It is molded for durability, RoHS compliant for environmental safety, and uses solder termination suitable for automated PCB assembly. Operating temperature ranges from -55°C to 125°C, enabling the inductor's use in demanding automotive and industrial electronics environments.

Supplied in paper tape packaging ready for reel-based manufacturing, this inductor enhances production efficiency without compromising quality. Compact 0201 footprint enables high-density PCB layouts. Non-magnetic core ensures high stability and low losses.

Rated for 450 mA DC current to support moderate load requirements. High quality factor promotes signal integrity at RF frequencies. Low DC resistance minimizes energy dissipation. Broad operating temperature range for versatile applications.

Compliant with RoHS standards for eco-friendly manufacturing. Ideal for mobile and wireless communication devices. Supports automated assembly with solder terminations.

This surface mount inductor series from Murata leverages advanced film technology to meet the strict requirements of modern miniaturized electronics design. Integration in mobile phones and general high frequency circuits is seamless, making the LQP03TN3N3B02D a preferred choice in demanding electrical environments.
