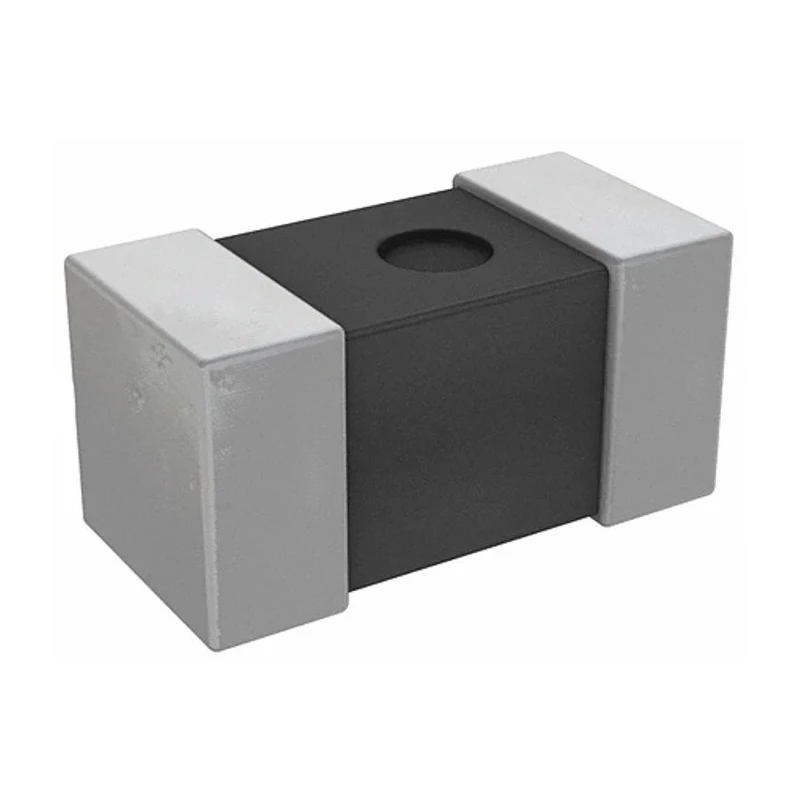

Murata 0201 Shielded Surface Mount Inductor Non-Magnetic Core 3.3nH Film ±0.1nH 450mA Idc Q:14 LQP03TN3N3B02D

Murata LQP03TN3N3B02D is a high-performance 0201 Shielded Surface Mount Inductor featuring a non-magnetic core and film inductor construction. It delivers an inductance of 3.3 nanohenries with a narrow tolerance of ±0.1 nH, ensuring precise signal conditioning in electronic circuits.

The inductor supports a maximum DC current rating of 450 milliamperes and maintains a minimum quality factor of 14, making it suitable for applications where efficiency and compactness are critical. This device operates reliably across a broad temperature range from -55°C to 125°C and exhibits a maximum DC resistance of 250 milliohms, reducing power losses and heat generation.

Encased in a compact 0201 package, dimensions are 0.6 mm in length, 0.3 mm in width, and 0.3 mm in height. Its solder termination style allows for efficient surface mounting on printed circuit boards, ideal for mass production environments.

The shielded design minimizes electromagnetic interference, allowing the inductor to perform optimally in sensitive high-frequency circuits such as those found in mobile phones, Bluetooth technology, and other RF applications including PA, ANT, SAW, and VCO circuits. The maximum self-resonant frequency of 8 GHz further ensures high-frequency reliability.

Murata’s LQP series inductors combine ultra-miniature size with outstanding electrical characteristics, making this product a preferred choice for designers requiring miniature, high-Q inductors for mobile and communication devices.

The inductor features a film construction and shielded design for enhanced performance. It has a compact 0201 package size with small dimensions of 0.6mm length and 0.3mm depth. Operating temperature range is from -55°C to 125°C for a wide range of applications.

Maximum DC resistance of 250mΩ for efficiency. RoHS compliant and manufactured in Japan. Suitable for mobile phone and Bluetooth high-frequency circuits. Solder termination style enables easy PCB mounting. Maximum self-resonant frequency of 8 GHz supports RF applications.

This product is ideal for industrial, communication, and consumer electronics applications that require reliable high-frequency induction components. Explore the Murata range and other Surface Mount Inductors at EnvMart for advanced electronic component solutions.
