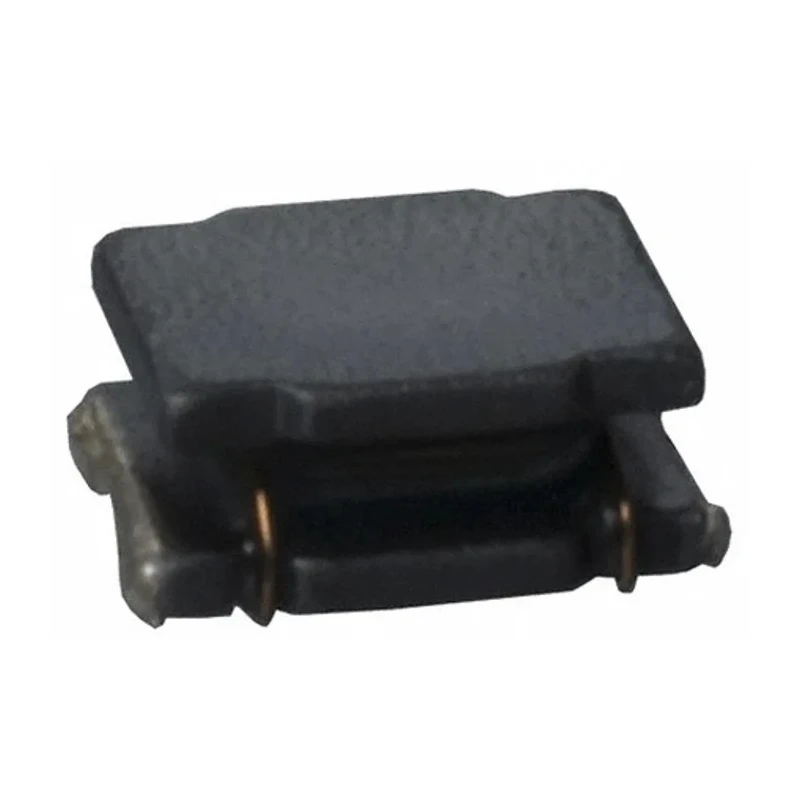

Murata 4532 Shielded Wirewound Surface Mount Inductor Ferrite Core 100μH ±20% 320mA LQH43PN101M26L
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Murata |
| Height | 2.6mm |
| Length | 4.5mm |
| Model | LQH43PN101M26L |
| Depth | 3.2mm |
| Packaging | Embossed Tape |
| Series | LQH |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 100μH |
| Standards/Approvals | RoHS |
| Package/Case | 4532 |
| Maximum DC Current | 320mA |
| Maximum DC Resistance | 1538mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 4MHz |
| Inductor Construction | Wirewound |
Key Features
- Constructed with a wire wound on a ferrite core for high inductance values.
- Rated for maximum DC current of 320mA to ensure stable performance.
- Compact 4532 package size with dimensions 4.5mm length, 3.2mm depth, and 2.6mm height.
- Shielded design reduces electromagnetic interference for better signal integrity.
- Surface mount termination style for easy PCB assembly.
- Flat operating temperature range from -40°C to 85°C suitable for various environments.
- RoHS compliant and moulded construction enhances durability.
- Suitable for power supply booster circuits and general electronic applications.
Product Description
Murata LQH43PN101M26L is a 4532 size shielded wirewound surface mount inductor featuring a ferrite core. It offers an inductance of 100μH with a ±20% tolerance, designed for handling up to 320mA maximum DC current. This inductor is enclosed in a compact, shielded package measuring 4.5mm in length, 3.2mm depth, and 2.6mm height, making it ideal for space-constrained electronic circuit boards.
The wire wound construction around the ferrite core provides stable inductance with low DC resistance of 1538mΩ and a maximum self-resonant frequency of 4MHz. Its shielded design significantly reduces electromagnetic interference, protecting sensitive circuitry and enhancing signal integrity. Termination is surface mount style for automated PCB mounting processes.
Operating reliably across a temperature range of -40°C to 85°C, this inductor is RoHS compliant and moulded for increased mechanical strength. The product is well-suited for use in power supply booster circuits, digital cameras, mobile phones, TVs, and gaming machines, offering high performance in compact electronics.
Constructed with a wire wound ferrite core for high inductance. Designed to handle a maximum DC current of 320mA. Shielded 4532 package dimensions: 4.5mm x 3.2mm x 2.6mm. Surface mount termination for easy mounting on PCBs.
Wide operating temperature range from -40°C to 85°C. RoHS compliant ensuring environmental standards compliance. Low maximum DC resistance of 1538mΩ for efficiency. Moulded body increases durability and mechanical strength.
Manufactured in Japan guaranteeing quality manufacturing standards.
This inductor is commonly used in industrial, electronic, communication, and consumer applications requiring efficient power supply modulation and EMI reduction. Environmentally compliant and robustly designed, it fits well within advanced electronic assemblies across multiple sectors.
Explore the Electronics & Electricals category on EnvMart for more high-quality inductors and components from Murata and other industry-leading brands.
Explore more products in our Surface Mount Inductors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 100μH with a tolerance of ±20%.
It is rated for a maximum DC current of 320mA, ensuring stable performance in applications.
The dimensions of the 4532 package are 4.5mm in length, 3.2mm in depth, and 2.6mm in height.
The maximum self-resonant frequency is 4MHz, allowing for efficient operation in high-frequency applications.
It features a surface mount termination style, facilitating easy automated PCB assembly.
This inductor operates reliably across a temperature range of -40°C to 85°C.
The maximum DC resistance is 1538mΩ, which contributes to its efficiency.
Yes, it is RoHS compliant, ensuring it meets environmental standards.
The inductor is constructed with a ferrite core, which aids in achieving high inductance values.
It is suitable for power supply booster circuits and various electronic applications such as digital cameras and mobile phones.
This model is manufactured in Japan, ensuring adherence to quality manufacturing standards.
It features a wirewound construction, which enhances its inductance performance.
