4D Systems 5.0 in LCD Display Starter Kit for Raspberry Pi with Diablo16 Controller SK-gen4-50D-PI

Free Delivery in India | Lowest Global Shipping Charges

4D Systems 5.0 in LCD Display Starter Kit for Raspberry Pi with Diablo16 Controller SK-gen4-50D-PI

Name: 4D Systems 5.0 in LCD Display Starter Kit for Raspberry Pi with Diablo16 Controller SK-gen4-50D-PI
Brand: 4D Systems
SKU: 183219
Price: 238.75 USD
Availability: InStock



Category LCD Colour Displays Brand 4D Systems Condition New

Specifications

Country of Origin	China
Brand	4D Systems
Storage Temperature	-30°C to +70°C
Display Size	5.0
Model	SK-gen4-50D-PI
Connector	30 way FPC
Display Resolution	800 x 480
Controller	Diablo16
Display Technology	LCD
Operating Ambient Temperature	-15°C to +65°C
Diagonal Display Size	5in
Module Dimensions (mm)	142.8 x 77.9 x 7.8 mm
Gen4 Integrated Display Module	gen4-uLCD-50D Display (non-touch version)
Gen4 Interface Module	gen4-IB
Display Brightness	∼460 nits
Display Viewing Area (mm)	110.88 x 62.83 mm
Gen4 Programming adapter	gen4-PA
150 mm FFC Cable	5-way female-to-female ribbon cable with male-to-male adapter
Backlight LEDs	2 x 7
Touch	Non-Touch

Key Features

The kit includes a 5-inch LCD display module with 800 x 480 resolution.
Features approximately 460 nits brightness with 2 x 7 backlight LEDs.
Module dimensions are 142.8 x 77.9 x 7.8 mm with a viewing area of 110.88 x 62.83 mm.
Operates between -15°C to +65°C ambient temperature and stores safely from -30°C to +70°C.
Comes with Gen4 Interface and Programming adapters along with a 4 GB micro SD card and 150 mm FFC cable.

Product Description

4D Systems SK-gen4-50D-PI is a 5.0 inch LCD Display Starter Kit designed for Raspberry Pi applications featuring the Diablo16 controller. The display module is a non-touch LCD with 800 x 480 pixels resolution and a brightness of approximately 460 nits enabled by 2 sets of 7 backlight LEDs. Measuring 142.8 x 77.9 x 7.8 mm, the module offers a viewing area of 110.88 x 62.83 mm.

This starter kit allows users to explore 4D Workshop4 programming environments including Designer, ViSi, ViSi-Genie, and Serial, facilitating image, video, and sound display, data logging, and firmware updates. Programming and expansions are supported via included Gen4 programming cable, USB accessories, and micro SD card storage.

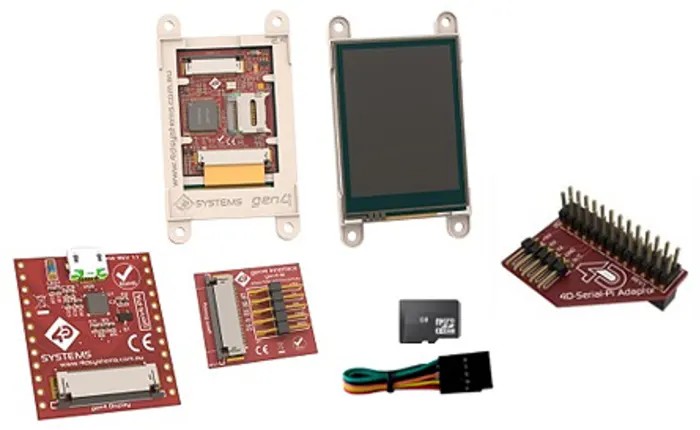

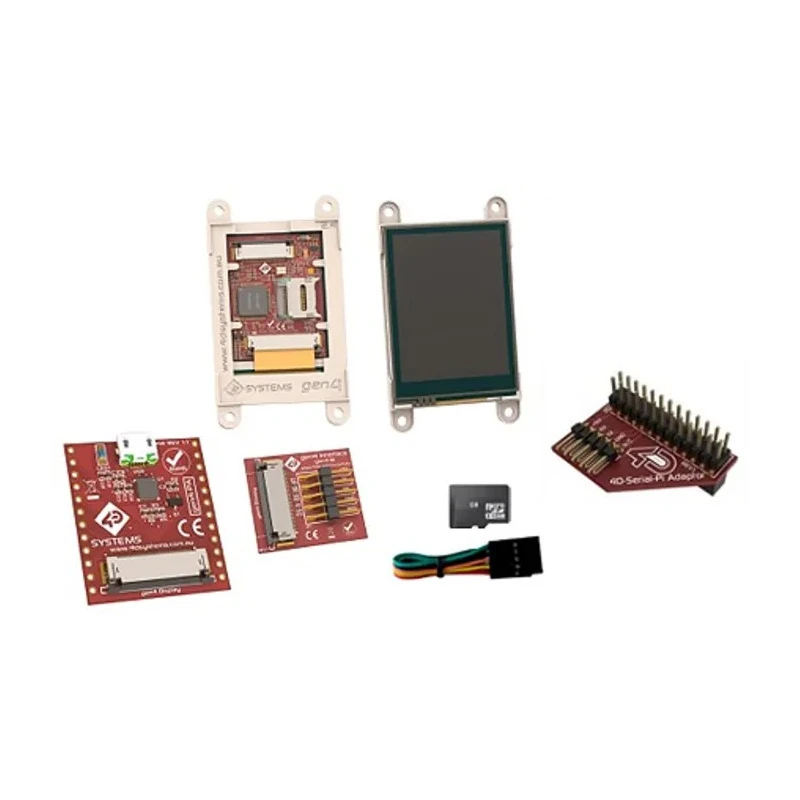

Operational ambient temperature ranges from -15°C to +65°C while storage conditions are safe between -30°C and +70°C, ensuring durability for industrial, educational, and development settings. The kit includes the gen4-uLCD-50D Display module non-touch version, Gen4 Serial Pi adapter, Gen4 Interface Module (gen4-IB), Gen4 Programming adapter (gen4-PA), a 4 GB micro SD card, and a 150 mm 5-way female-to-female ribbon cable with male-to-male adapter.

This display module is well-suited for embedded system development, Raspberry Pi projects, and STEM education requiring integrated visual output with flexible programming environments. It supports a 30-way FPC connector providing robust hardware interface options.

5 inch non-touch LCD display with Diablo16 controller for Raspberry Pi. 800 x 480 display resolution and high brightness of approximately 460 nits. Includes all necessary adapters and cables for programming and connectivity.

Wide operating ambient and storage temperature ranges. Supports multiple programming environments with micro SD card data storage. Explore 4D Systems products and Raspberry Pi display solutions at EnvMart for advanced electronic component needs.
