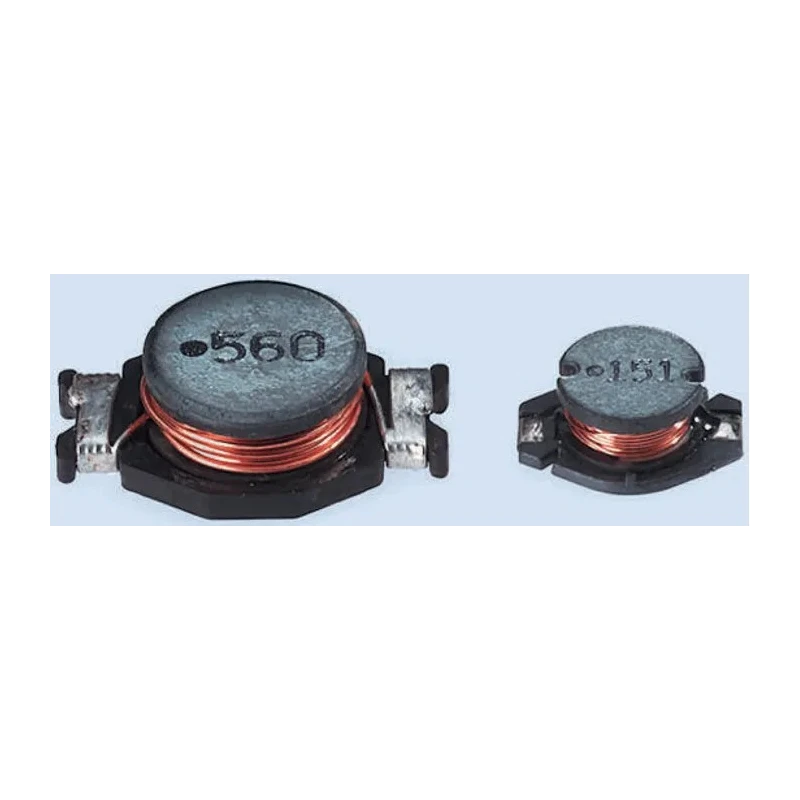

Wurth Elektronik WE-PD4 Unshielded Wirewound Surface Mount Inductor with Ferrite Core 15 μH ±20% 2.9 A 74456115
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 7.6mm |
| Brand | Wurth Elektronik |
| Height | 5mm |
| Length | 12.7mm |
| Model | 74456115 |
| Depth | 10mm |
| Packaging | Tape & Reel |
| Series | WE-PD4 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 15μH |
| Standards/Approvals | JEDEC JS709B, REACH, RoHS |
| Maximum DC Current | 2.9A |
| Maximum DC Resistance | 60mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 17MHz |
| Inductor Construction | Wirewound |
Key Features
- The inductor features a ferrite core for efficient power management.
- It supports an operating temperature range from -40°C to 125°C for industrial reliability.
- Designed for surface mount with tape and reel packaging for automated assembly.
- Its wirewound construction provides low DC resistance of 60mΩ, ensuring minimal power loss.
- The component is moulded and unshielded, suitable for frequency use up to 17 MHz.
- Compact dimensions include length 12.7mm, diameter 7.6mm, height 5mm, and depth 10mm.
- Complies with JEDEC JS709B, REACH, and RoHS standards for quality and environmental safety.
Product Description
Wurth Elektronik model 74456115 is an unshielded wirewound Surface Mount Inductor designed with a ferrite core, offering 15 μH inductance with ±20% tolerance and a maximum DC current of 2.9 A. Its compact footprint with a length of 12.7 mm, diameter of 7.6 mm, height of 5 mm, and depth of 10 mm makes it suitable for high-density circuit boards.
The inductor features molded construction and is packaged on tape and reel, facilitating automated pick-and-place manufacturing processes. Its low DC resistance of 60 milliohms contributes to efficient power use with minimal energy loss, important in high-performance power supply designs.
Operation across a wide temperature range from -40°C to +125°C makes this component reliable for industrial and electronic applications requiring durability in harsh environments. It supports frequencies up to 17 MHz, making it ideal for high-frequency switching power supplies and interference suppression.
The WE-PD4 series inductors by Wurth Elektronik are recognized for their compact, low-loss ferrite cores and robust wire wound construction. These inductors are commonly used in switch mode power supplies (SMPSUs), automotive electronics, and industrial circuits requiring high efficiency and stable inductance.
The inductor features a ferrite core for efficient power management. Suitable for operating temperatures from -40°C to 125°C, ensuring durability. Compact dimensions enable flexible PCB layout designs. Low DC resistance (60mΩ) reduces internal power loss.
Compliant with JEDEC JS709B, REACH, and RoHS standards. Wirewound construction provides stable inductance characteristics. Surface mount termination style for ease of assembly.
This Wurth Elektronik WE-PD4 inductor is manufactured in China and supplied new. It is fit for use in industrial, telecommunications, consumer electronics, and automotive electronic systems, facilitating power and signal conditioning with reliability.
Explore the extensive range of Wurth Elektronik components on EnvMart for enhanced electronic designs and manufacturing efficiency.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 15 μH with a tolerance of ±20%.
The maximum DC current rating for this unit is 2.9 A.
The inductor has a length of 12.7 mm, a diameter of 7.6 mm, a height of 5 mm, and a depth of 10 mm.
It can operate within a temperature range of -40°C to 125°C.
The maximum self-resonant frequency supported by this model is 17 MHz.
This inductor features a wirewound construction, which provides stable inductance characteristics.
The inductor has a low DC resistance of 60 mΩ, contributing to minimal power loss.
It is packaged on tape and reel, facilitating automated assembly processes.
It complies with JEDEC JS709B, REACH, and RoHS standards for quality and environmental safety.
The core material of this inductor is ferrite, which aids in efficient power management.
This model is suitable for use in switch mode power supplies, automotive electronics, and industrial circuits requiring high efficiency.
The termination style of this inductor is surface mount, making it suitable for high-density circuit boards.
