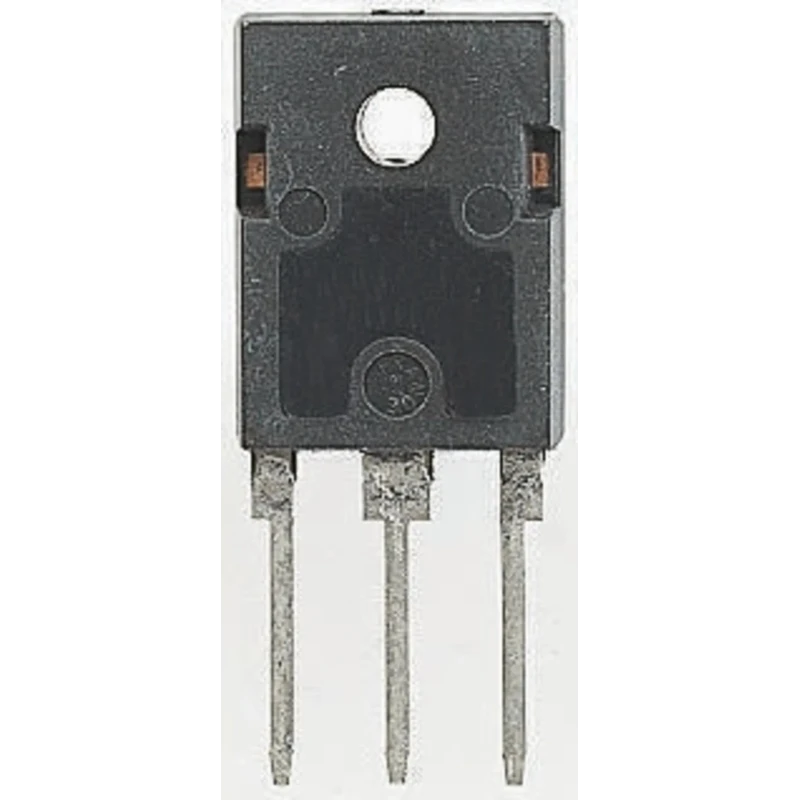

STMicroelectronics 1200 V 30 A Switching Diode 2-Pin DO-247 STTH3012W
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 3.55mm |
| Brand | STMicroelectronics |
| Height | 20.15mm |
| Length | 15.75mm |
| Model | STTH3012W |
| Width | 5.15mm |
| Mount Type | Through Hole |
| Series | STTH3012 |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-247 |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 30A |
| Peak Reverse Repetitive Voltage Vrrm | 1200V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 20μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 210A |
| Maximum Forward Voltage Vf | 2.25V |
| Peak Reverse Recovery Time trr | 115ns |
Key Features
- The diode has a maximum continuous forward current of 30A.
- It features a peak reverse repetitive voltage rating of 1200 V.
- The device has a maximum forward voltage of 2.25 V to ensure efficient conduction.
- Peak reverse recovery time is 115 ns, suitable for switching applications.
- Operating temperature ranges from -65°C to 175°C, enabling use in harsh environments.
- The switching diode includes a peak non-repetitive forward surge current of 210 A.
- Compact DO-247 package dimensions allow easy integration into electronic circuits.
- RoHS compliant, ensuring environmental standards compliance.
Product Description
STMicroelectronics STTH3012W is a high-performance switching diode designed for demanding power electronic applications requiring 1200 V voltage tolerance and 30 A current capacity. Housed in a compact 2-pin DO-247 through-hole package, this diode provides reliability and efficiency for industrial and commercial semiconductor uses.
The device features a maximum continuous forward current of 30A and peak repetitive reverse voltage rating of 1200 V, ensuring robust operation under heavy electrical loads. With a forward voltage of only 2.25 V, it supports efficient power conduction.
The diode has a peak reverse recovery time of 115 ns, making it highly suitable for fast switching circuits, including power supply rectification and inverter circuits. Operating temperature range from -65°C up to 175°C allows it to function reliably in environments with extreme temperature variations.
The package dimensions, including 20.15 mm height, 15.75 mm length, 5.15 mm width, and 3.55 mm diameter pins, make the component easy to mount on standard through-hole printed circuit boards (PCBs). RoHS compliance ensures the diode meets environmental regulations for hazardous substances.
This switching diode is ideal for applications in industrial automation, power management systems, and semiconductor-based switching circuits in laboratory and manufacturing settings.
The diode has a maximum continuous forward current of 30A. Peak reverse repetitive voltage rating of 1200 V ensures durability. Low peak reverse current of 20 μA reduces leakage currents. Fast reverse recovery time of 115 ns supports high-frequency switching.
Wide operating temperature range from -65°C to 175°C enhances reliability. Peak non-repetitive forward surge current of 210 A ensures transient robustness. Compact DO-247 package supports standard through-hole mounting. RoHS compliant for environmental safety.
Pin count of 2 simplifies circuit integration. Explore more semiconductor components and high-quality Switching Diodes on EnvMart, your trusted source for industrial and electronic parts.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this diode is 30A.
It has a peak reverse repetitive voltage rating of 1200 V.
The maximum forward voltage drop is 2.25 V, which supports efficient conduction.
The peak reverse recovery time is 115 ns, making it suitable for fast switching applications.
The operating temperature range is from -65°C to 175°C, allowing for use in harsh environments.
The package dimensions are 20.15 mm in height, 15.75 mm in length, and 5.15 mm in width.
This diode has a pin count of 2, simplifying circuit integration.
The peak non-repetitive forward surge current is rated at 210 A.
Yes, this diode is RoHS compliant, ensuring it meets environmental standards for hazardous substances.
It supports through-hole mounting, making it easy to integrate into standard printed circuit boards (PCBs).
This model features a single diode configuration, suitable for various applications.
This switching diode is ideal for applications in industrial automation, power management systems, and semiconductor-based switching circuits.
