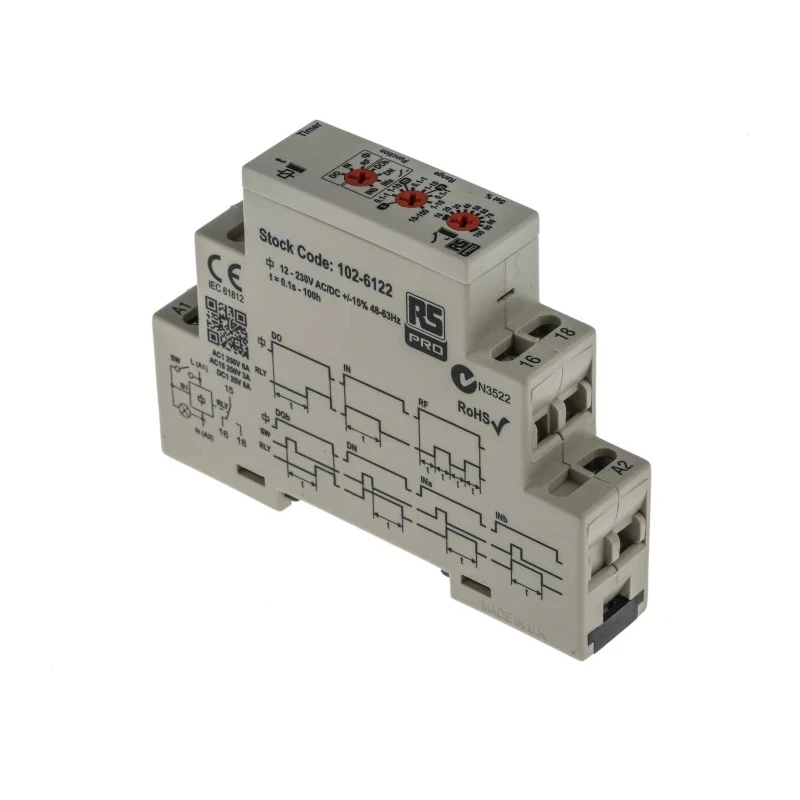

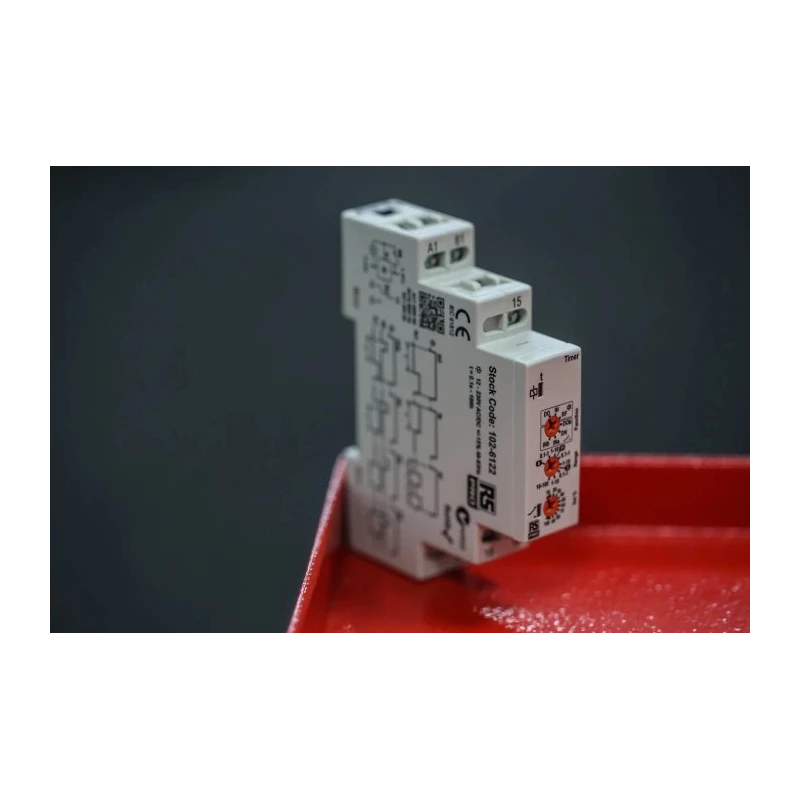

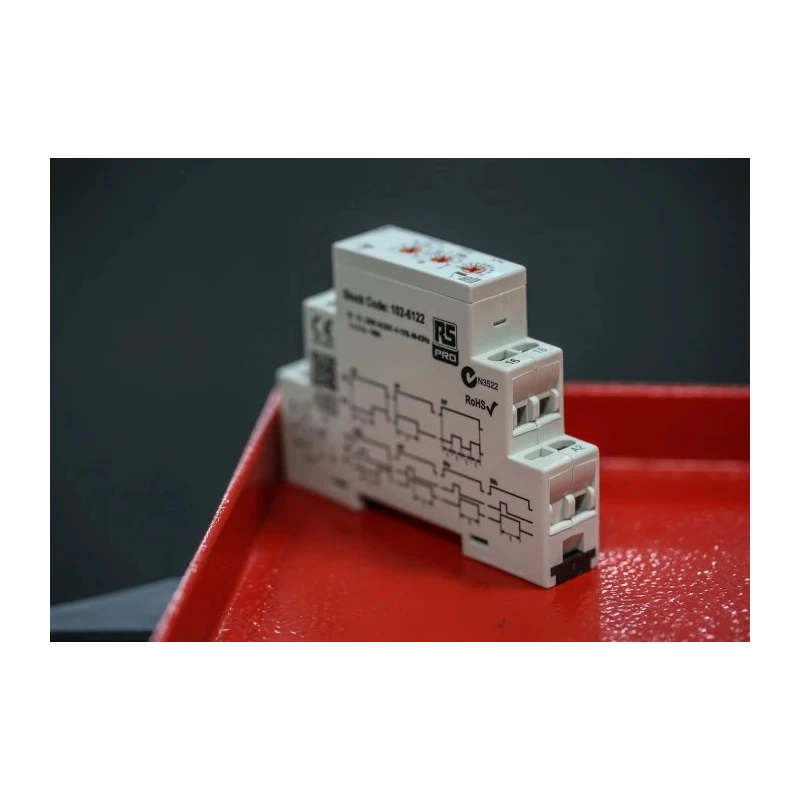

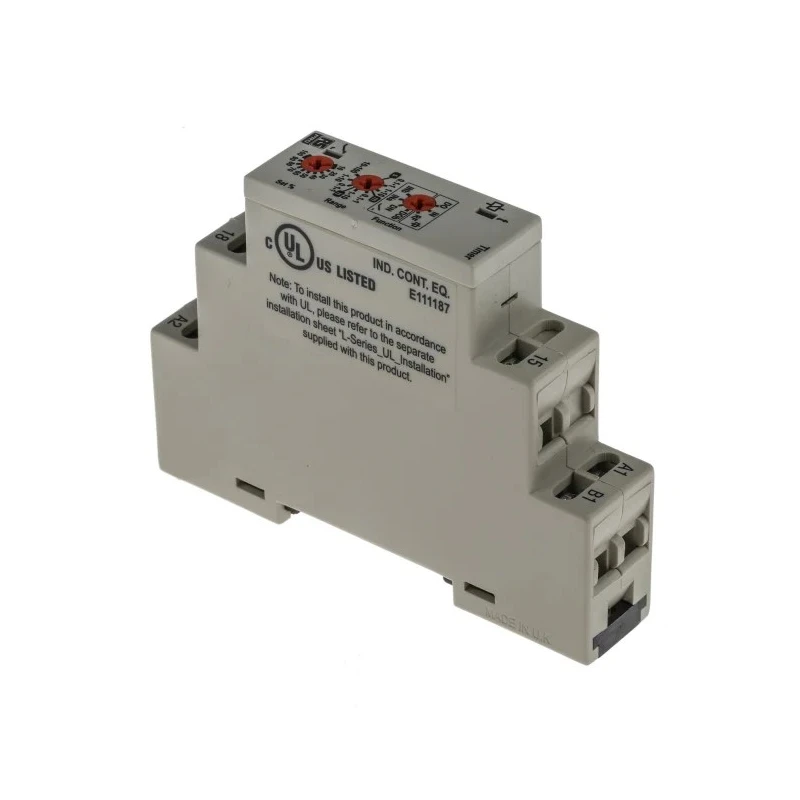

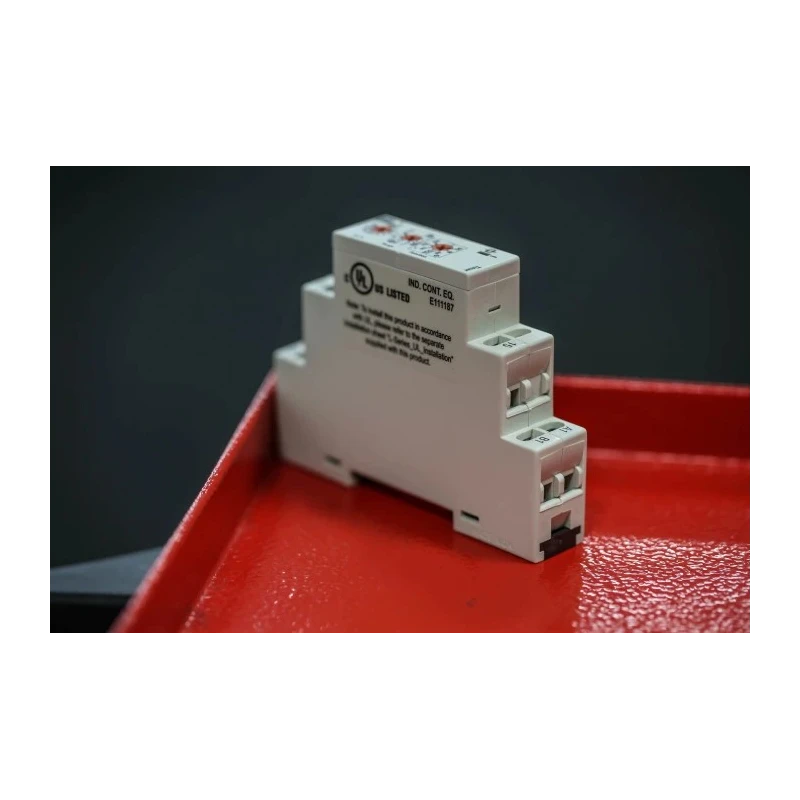

Broyce Control RS PRO DIN Rail Timer Relay 1-Contact SPDT 230 V dc/ac 24 V ac 0.1 s to 100 h Multifunction RS PRO 102-6122

Broyce Control 102-6122 RS PRO DIN Rail Timer Relay is a multifunction timer relay designed for reliable and precise timing control in industrial applications. Supporting a wide supply voltage range including 230 V dc, 230 V ac, and 24 V ac, it delivers timing functions between 0.1 seconds and 100 hours with high accuracy suitable for diverse setups.

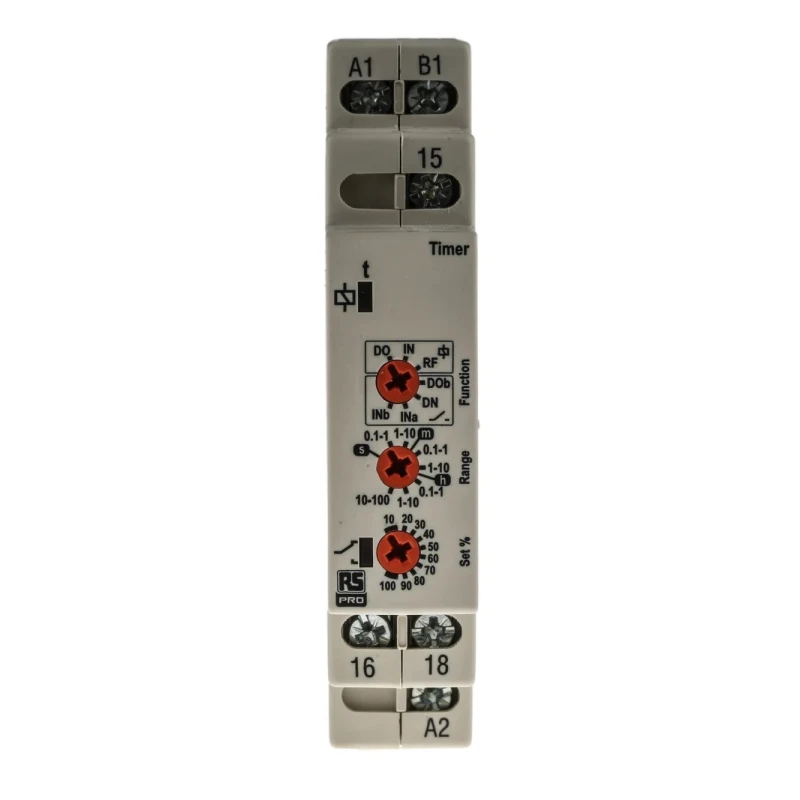

The relay features a SPDT (Single Pole Double Throw) contact rated for 8 A, enabling switching in various control circuits. Timing adjustment is conveniently made with a screwdriver slot allowing fine tuning within selectable time ranges. LED indicators provide clear visual status of power supply, timing operation, and relay activation, facilitating easy diagnostics.

Compact in size with a 17.5 mm width for efficient DIN rail mounting, this relay is robust and designed to meet CE, IEC 61812, and other international certifications ensuring its suitability in demanding industrial environments. It withstands operating temperatures from -20°C to 60°C, making it adaptable to harsh conditions found in textiles, chemical manufacturing, mining operations, irrigation controls, and food processing industries.

The relay supports seven selectable time ranges from 0.1 seconds up to 100 hours and includes supply initiated and switch initiated timing functions. These include On delay, Interval, Symmetrical On/Off Flasher, and other multifunctional timer possibilities which are retriggerable for complex automation systems.

Installation is straightforward on DIN rail with secure screw terminals that assure reliable electrical connection. The product is CE and C-tick certified and complies with IEC 61812 ensuring conformity with industry standards.

Operates on AC/DC voltage range of 12 V to 230 V. Provides 1 contact with SPDT configuration rated at 8 A. Offers multifunction timing with 7 selectable ranges from 0.1 s to 100 h. LED indicators provide status feedback for supply, timing, and relay output.

Designed for industrial use including textiles, mining, chemical, irrigation, and food processing. Broyce Control RS PRO products are recognized for their reliability and are widely used in automation, control panels, and industrial automation systems.
