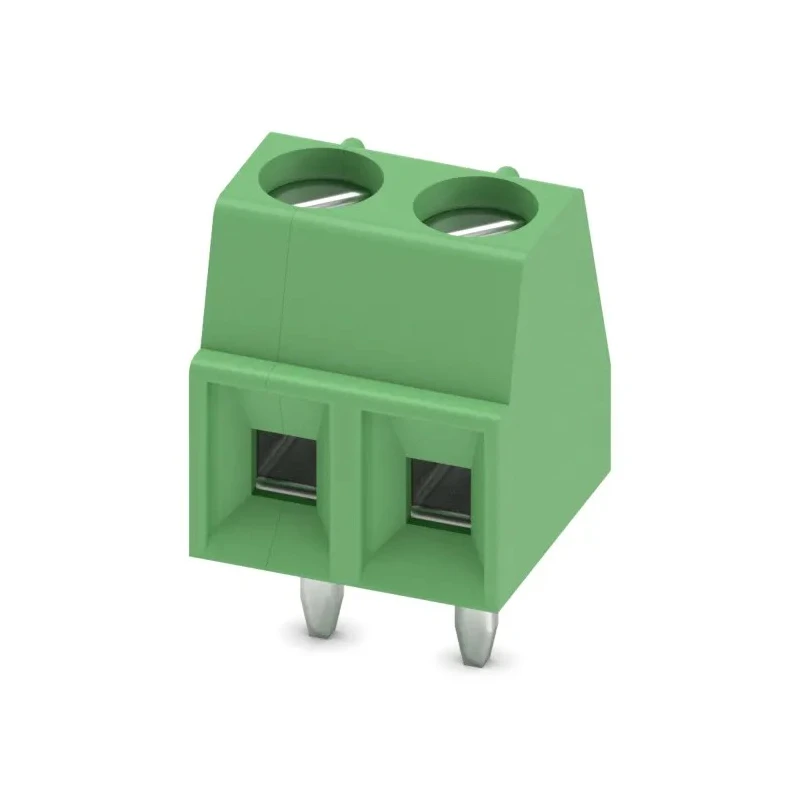

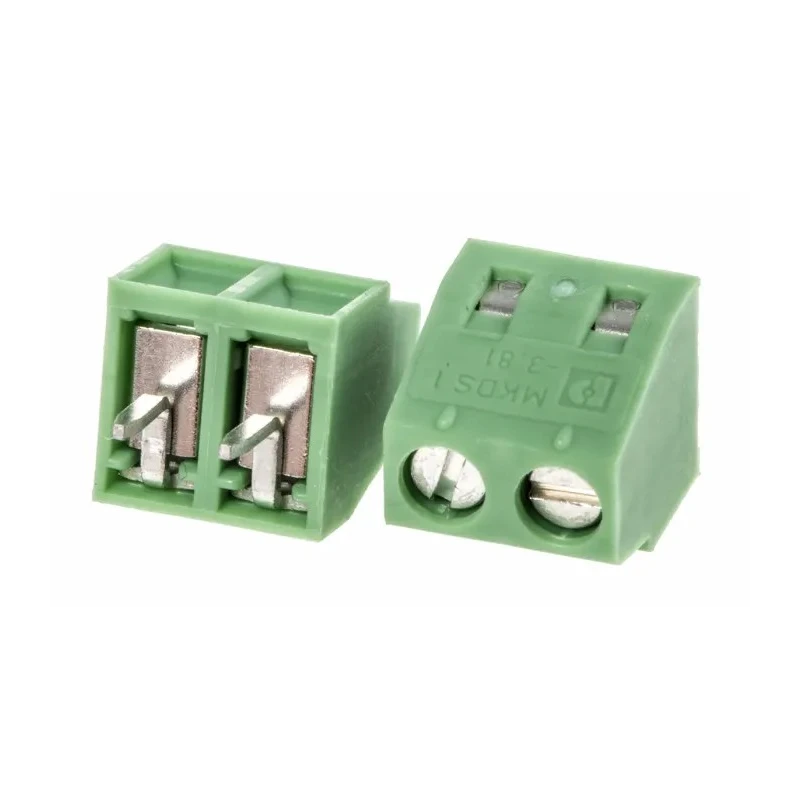

Phoenix Contact MKDS 1/2-3.81 Series Straight Wave Soldering Mount PCB Terminal Block, 2 Contact, 3.81 mm Pitch 1727010
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 200V |
| Brand | Phoenix Contact |
| Orientation | Straight |
| Current | 13.5A |
| Model | 1727010 |
| Mount Type | Wave Soldering Mount |
| Series | MKDS 1/2-3.81 |
| Number of Rows | 2 |
| Pitch | 3.81mm |
| Standards/Approvals | CSA, cULus, EU RoHS |
| Number of Contacts | 2 |
Key Features
- The terminal block features a straight orientation and wave soldering mount type for secure PCB connection.
- Designed to support a current rating of 13.5A and voltage of 200V for reliable performance.
- Constructed with nylon housing to provide electrical insulation and mechanical strength.

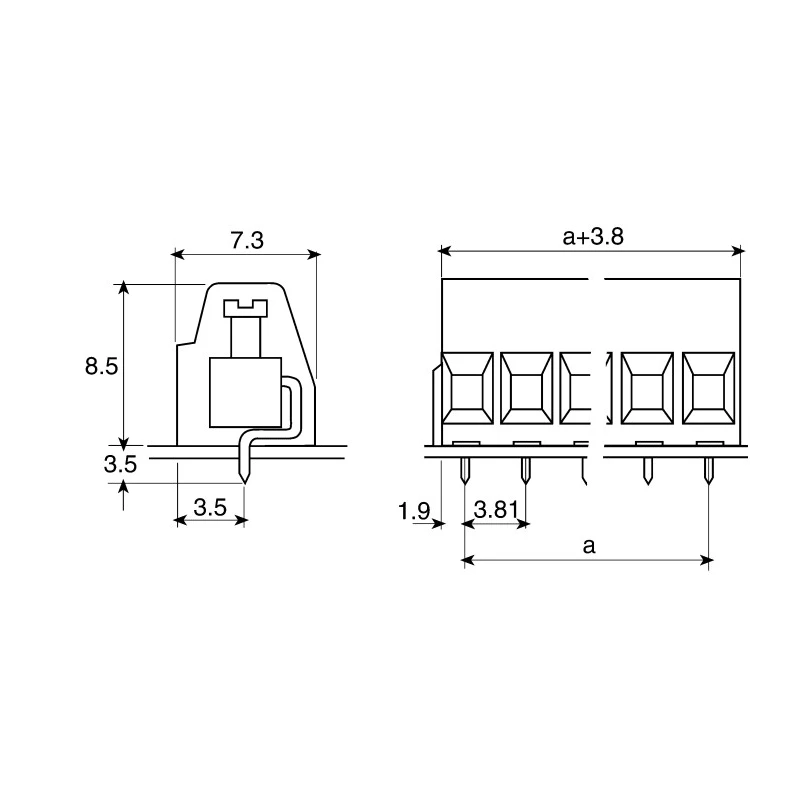

- Compact size with dimensions approximately 7.3 mm (L) x 7.61 mm (W) x 12 mm (H) and lightweight at 1g to minimize PCB load.
- Suitable for wiring connections using wires ranging from 30 AWG to 16 AWG.
- Complies with CSA, cULus, and EU RoHS standards for safety and environmental compliance.
- Wave soldering mounting ensures robust connection durability and solder termination offers reliable strain relief.
Product Description
Phoenix Contact 1727010 MKDS 1/2-3.81 Series Straight Wave Soldering Mount PCB Terminal Block is designed for efficient and durable PCB wiring applications. Featuring two contacts and a 3.81 mm pitch, this terminal block ensures reliable and space-saving electrical connections with a current rating of 13.5A and voltage capacity of 200V.
The housing is made from durable nylon that provides excellent electrical insulation, mechanical strength, and high temperature resistance. Measuring approximately 7.3 mm in length, 7.61 mm in width, and 12 mm in height, and weighing only 1 gram, it places minimal physical stress on printed circuit boards.
The product supports a wide wire size range from 30 AWG to 16 AWG and utilizes the moving cage connection principle, making it compatible with various wiring configurations. This terminal block uses wave soldering mount type, ensuring a secure and enduring solder connection to the PCB.
This terminal block complies with CSA, cULus, and EU RoHS standards, guaranteeing safety and environmental regulatory compliance. The high contact force minimizes temperature rise during operation, reducing the risk of component damage due to heat dissipation.
Straight orientation with wave soldering mount type for robust PCB installation. Supports current ratings up to 13.5A and voltage up to 200V. Nylon housing ensures electrical insulation and mechanical durability. Compact and lightweight design reduces PCB loading and saves space.
Compatible with wires from 30 AWG to 16 AWG. Complies with CSA, cULus, and EU RoHS standards. High contact force reduces heat generation and ensures reliable connections.
This terminal block is suitable for use in electronic manufacturing, industrial automation, instrumentation, control panels, and other PCB wiring applications where reliable and compliant electrical connections are essential. It is ideal for designers and engineers who demand compact and durable PCB mounting terminal blocks.
Explore a broad range of PCB Terminal Blocks and electronic components for your industrial and laboratory needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal block supports a current rating of 13.5A and a voltage rating of 200V.
The pitch size of this terminal block is 3.81 mm.
It is compatible with wire sizes ranging from 30 AWG to 16 AWG.
This model utilizes a wave soldering mount type for secure PCB installation.
The dimensions are approximately 7.3 mm (L) x 7.61 mm (W) x 12 mm (H), and it weighs 1 gram.
It complies with CSA, cULus, and EU RoHS standards for safety and environmental compliance.
This terminal block features 2 contacts.
The orientation of this terminal block is straight.
The country of origin for this terminal block is Germany.
The housing is constructed from nylon, providing electrical insulation and mechanical strength.
It is suitable for use in electronic manufacturing, industrial automation, instrumentation, and control panels.
The high contact force minimizes temperature rise during operation, reducing the risk of component damage due to heat dissipation.
