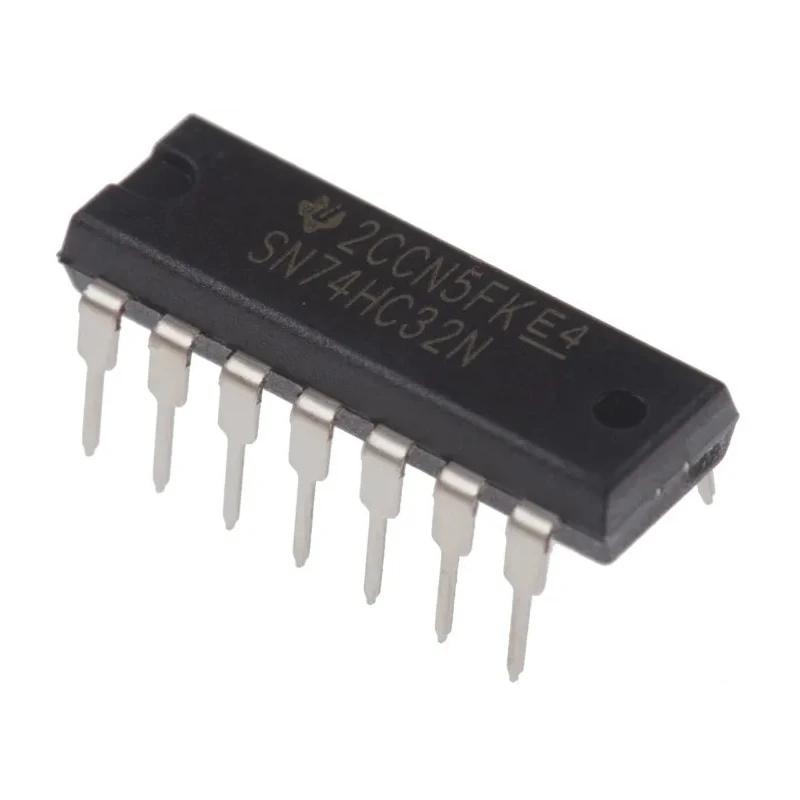

Texas Instruments 4 2-Input OR Logic Gate CMOS, PDIP 14-Pin SN74HC32N

Free Delivery in India | Lowest Global Shipping Charges

Texas Instruments 4 2-Input OR Logic Gate CMOS, PDIP 14-Pin SN74HC32N

Name: Texas Instruments 4 2-Input OR Logic Gate CMOS, PDIP 14-Pin SN74HC32N
Brand: Texas Instruments
SKU: 181954
Price: 1.04 USD
Availability: InStock



Category Logic Gate Brand Texas Instruments Condition New

Specifications

Country of Origin	India
Brand	Texas Instruments
Height	4.57mm
Length	19.3mm
Model	SN74HC32N
Mount Type	Through Hole
Compatibility	Input CMOS, Output CMOS
Output type	Push Pull
Series	SN74
Input Type	CMOS
Maximum Operating Temperature	85°C
Package Type	PDIP
Minimum Operating Temperature	-40°C
Operating Voltage	2 to 6 V
Pin Count	14
Number of Elements	4
Maximum Supply Voltage	6V
Logic Family	HC
Logic Function	OR
Minimum Supply Voltage	2V
Maximum High Level Output Current	-5.2mA
Maximum Propagation Delay Time @ CL	21ns
Maximum Low Level Output Current	5.2mA
Number of Inputs per Gate	2

Key Features

Contains four independent 2-input OR gates with CMOS input type.
Operates at a voltage range of 2 to 6 volts for efficient power consumption.
PDIP 14-pin through-hole mount package ensures easy integration and secure placement on PCB boards.
Maximum propagation delay of 21ns enables fast switching for digital signal processing.
Wide operating temperature range from -40°C to 85°C supports robust industrial and commercial use.
Output type push-pull with maximum output currents of ±5.2mA ensures reliable logic signal levels.
Compatible with CMOS inputs and outputs, suitable for diverse electronic applications.

Product Description

Texas Instruments SN74HC32N is a high-speed CMOS 4 2-input OR logic gate IC housed in a 14-pin PDIP package for through-hole mounting. Operating at a voltage range of 2 to 6 volts, this device is designed for efficient digital signal logic implementation with low power consumption and high performance.

The package includes four independent OR gates, each with two inputs, supporting versatile configurations within digital circuits. Featuring a maximum propagation delay of 21 nanoseconds, the SN74HC32N enables rapid switching and reliable performance in applications such as industrial control systems, automation, and laboratory instrumentation.

This logic IC is manufactured using silicon gate CMOS technology, delivering low power consumption compared to traditional TTL families, with input and output compatibility for CMOS logic levels. The push-pull output stage supports maximum output currents of ±5.2 milliamps, ensuring stable and clear logic level outputs.

The device is rated for an operating temperature range of -40°C to +85°C, making it suitable for demanding environments in electronics manufacturing, industrial automation, and embedded system designs. It is ideal for use in general-purpose logic applications within electronic components architectures.

Contains four 2-input OR gates for flexible logic circuit design. Operating voltage from 2 to 6 volts supports low power consumption. Through-hole PDIP 14-pin package facilitates easy soldering and mounting. Maximum propagation delay time of 21ns supports fast switching operations.

Wide temperature range (-40°C to +85°C) enables durable performance in varied environments. Push-pull output type delivers stable logic signals with a current capability of ±5.2mA. CMOS input compatibility ensures ease of interfacing with other logic families.

This Texas Instruments Logic Gate is widely used across industrial, commercial, and laboratory applications due to its reliability and broad industrial-grade specifications. Select the SN74HC32N for your digital logic circuitry to achieve high performance and stable operations.

Explore our comprehensive electronics and semiconductor catalog for more products from Texas Instruments and other leading brands on EnvMart.
