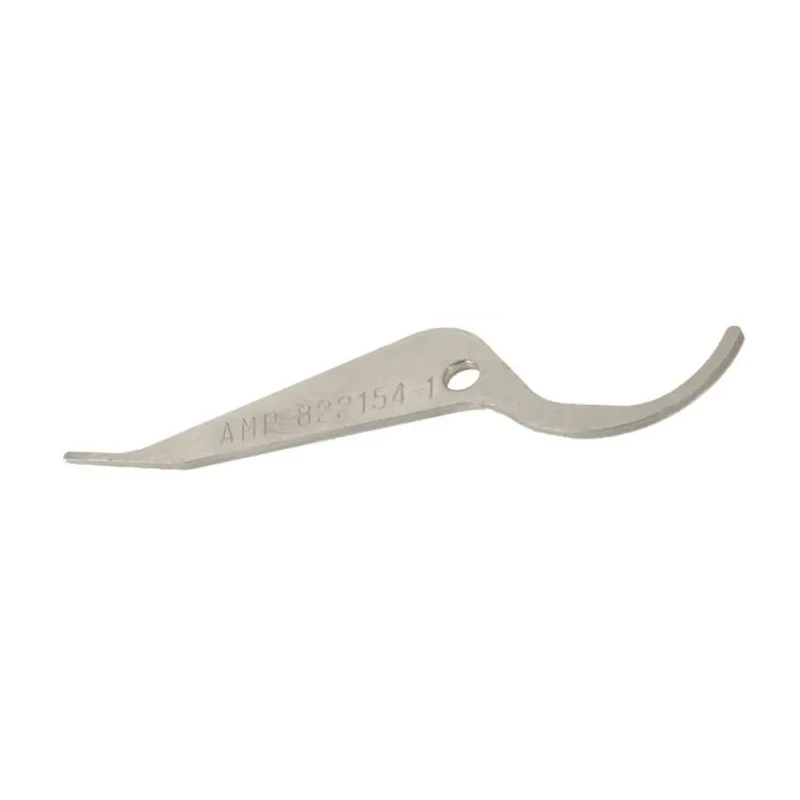

TE Connectivity Crimp Extraction Tool AMP Series for Chip Carrier Electronics 822154-1

TE Connectivity 822154-1 Crimp Extraction Tool AMP Series is a precision tool designed for the effective extraction of crimp contacts specifically from AMP series chip carrier connectors. Manufactured in the United States, this extraction tool meets demanding industrial and manufacturing standards, ensuring reliable performance in electronics assembly and maintenance.

The tool supports operations with economy, through-hole, PLCC sockets featuring tin-plated phosphor bronze contacts arranged on a 0.1 inch grid to match JEDEC patterns. It delivers excellent insulation resistance of 1000 MΩ initially, which remains robust at 500 MΩ following exposure to humidity and thermal shock conditions.

Engineered with safety in mind, it holds a UL94 V-0 flammability rating and withstands temperature variations ranging from -55 to +170 degrees Celsius, making it suitable for applications in harsh industrial, electronics manufacturing, and repair environments.

The typical operational life of this extraction tool is about 30 cycles, ensuring durability and consistent quality during repetitive use. Its ergonomic and efficient design optimizes production pack handling and supports efficient insertion and extraction workflows in cable, connector, and crimping tool settings.

Engineered for reliable extraction of crimp contacts from chip carriers. Compatible with economy through-hole PLCC sockets. Constructed to withstand typical life of 30 cycles for durable usage. Supports a temperature range from -55 to +170°C suitable for demanding industrial environments.

Manufactured in the United States ensuring high quality standards. Insulation resistance meets 1000 MΩ initially and retains 500 MΩ after humidity and thermal shock tests. Flammability rating UL94 V-0 for safety compliance in electrical applications.

Packaged individually for production efficiency and ease of use.

This product is ideal for industrial, electronics manufacturing, maintenance, and repair operations where precision extraction of crimp contacts is required. The AMP Series extraction tool enhances productivity and reliability in handling chip carrier connectors.
