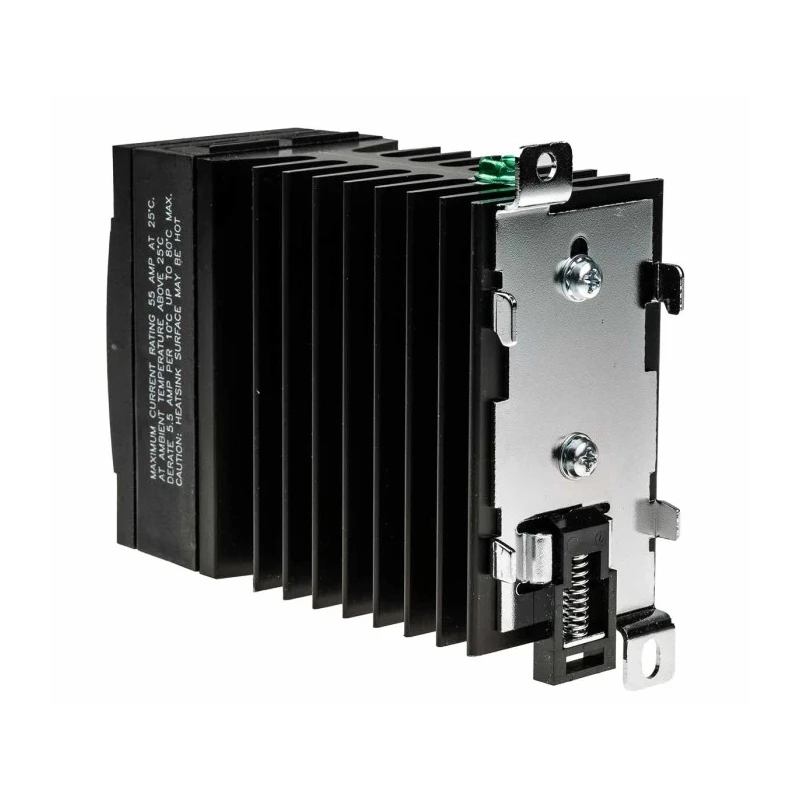

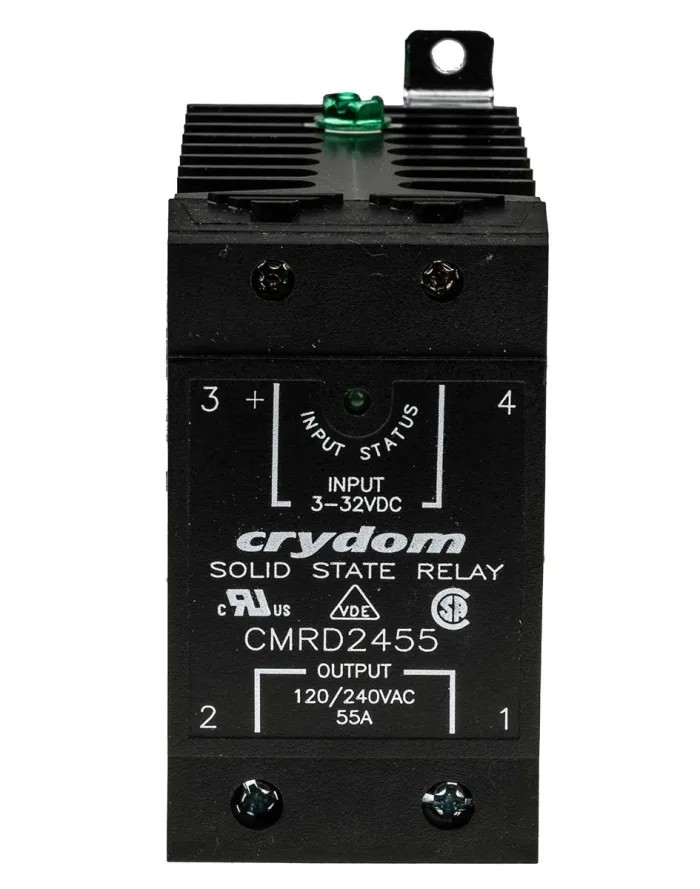

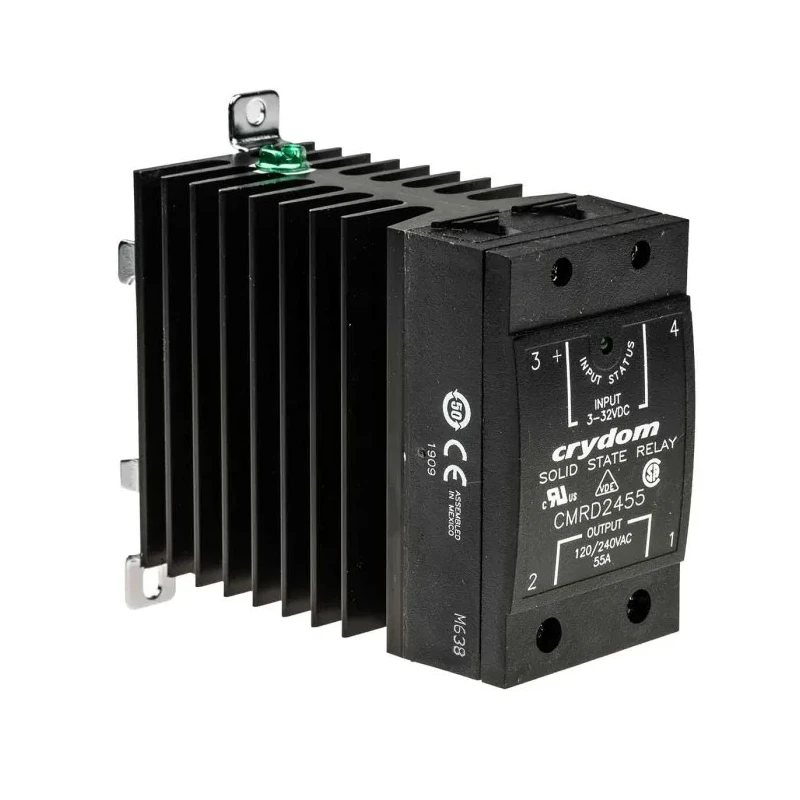

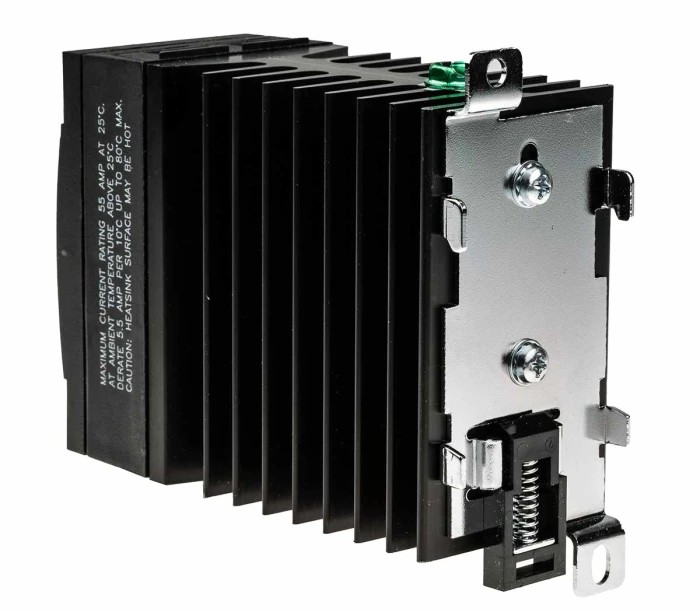

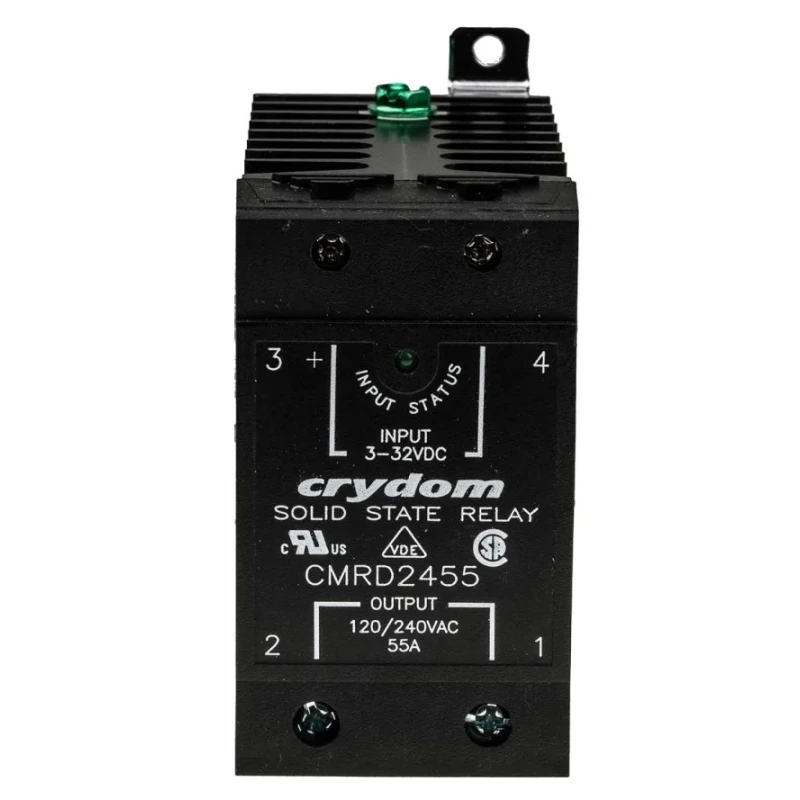

Crydom Solid State Relay 55 A Load, DIN Rail Mount, 280 V Load, 32V Control CMRD2455
Specifications
| Country of Origin | India |
|---|---|
| Brand | Crydom |
| Dimensions | H109.2 x W44.5 x D76.2mm |
| Height | 76.2mm |
| Length | 109mm |
| Model | CMRD2455 |
| IP Rating | IP20 |
| Width | 44.5mm |
| Mount Type | DIN Rail |
| Output type | SCR |
| Series | CMR |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | SPST |
| Capacitance | 8pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Switching Function | Zero Cross |
| Maximum Load Current | 55A |
| Standards/Approvals | RoHS |
| Maximum Load Voltage | 280V |
| Minimum Load Voltage | 24V ac |
| Minimum Control Voltage | 3V dc |
| Maximum Control Voltage | 32V |
| Off State Leakage Current | 10mArms |
| Omron Solid State Relay, 40 A Load, Chassis Mount, 264 V Load, 30 V ControlBrand | Omron |
Key Features
- Supports maximum load current of 55 amps for high-power applications.
- Designed for DIN rail mounting for secure and easy installation.
- Operates with maximum load voltage of 280 volts ensuring versatile use.
- Features a control voltage range from 3V DC minimum to 32V maximum.
- Includes integrated heatsink and finger-safe safety cover for reliability and protection.
- Equipped with LED status indicator for easy operational monitoring.
- Constructed with screw terminal type and IP20 ingress protection rating.
- Operates efficiently within temperature range from -40°C to 80°C.
Product Description
Crydom CMRD2455 Solid State Relay is designed for industrial and commercial automation to control high-current loads up to 55 amps with a maximum load voltage of 280 volts. It mounts on standard DIN rails for ease of integration into control panels.
This relay operates with a control voltage between 3V DC minimum to 32V DC maximum, making it suitable for diverse control systems. The device features a zero-cross switching function to minimize electrical noise and stress on the load.
The CMRD2455 includes an integral heatsink and a finger-safe, safety cover to provide secure operation and compliance with safety standards. The solid state relay uses SCR output technology and a single pole single throw contact configuration for reliable switching.
The product is rated IP20 for protection against solid objects and has a temperature operating range from -40°C to 80°C. It has screw-type terminals for secure wiring and comes with an LED status indicator for easy monitoring during operation.
Supports maximum load current of 55 amps for high-power applications. Designed for DIN rail mounting for secure and easy installation. Operates with maximum load voltage of 280 volts ensuring versatile use. Features a control voltage range from 3V DC minimum to 32V maximum.
Includes integrated heatsink and finger-safe safety cover for reliability and protection. Equipped with LED status indicator for easy operational monitoring. Constructed with screw terminal type and IP20 ingress protection rating.
Operates efficiently within temperature range from -40°C to 80°C. Contains low off-state leakage current of 10mArms and minimal input-output capacitance of 8pF. Contact configuration is single pole single throw (SPST) with SCR output type.
This solid state relay is ideal for industrial automation, HVAC systems, manufacturing equipment, and process control applications where reliable, noise-free switching is critical. Its DIN rail mount design facilitates simple panel integration in electrical cabinets.
Explore more Solid State Relays and automation components on EnvMart for advanced industrial and electrical automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This solid state relay supports a maximum load current of 55 amps, making it suitable for high-power applications.
The control voltage range for this model is from 3V DC minimum to 32V DC maximum, allowing compatibility with various control systems.
It operates with a maximum load voltage of 280 volts, ensuring versatile use in different applications.
This relay is designed for DIN rail mounting, facilitating secure and easy installation in control panels.
The relay has an IP20 ingress protection rating, which protects against solid objects but not against water.
It operates efficiently within a temperature range from -40°C to 80°C, suitable for various environmental conditions.
The CMRD2455 features screw-type terminals for secure wiring connections.
This model has a single pole single throw (SPST) contact configuration, which is typical for solid state relays.
Yes, it includes an integrated heatsink and a finger-safe safety cover for enhanced reliability and protection during operation.
It utilizes a zero-cross switching function, which minimizes electrical noise and stress on the load during operation.
The off-state leakage current is rated at 10mArms, contributing to its efficiency in operation.
This solid state relay complies with RoHS standards, ensuring it meets environmental regulations.
