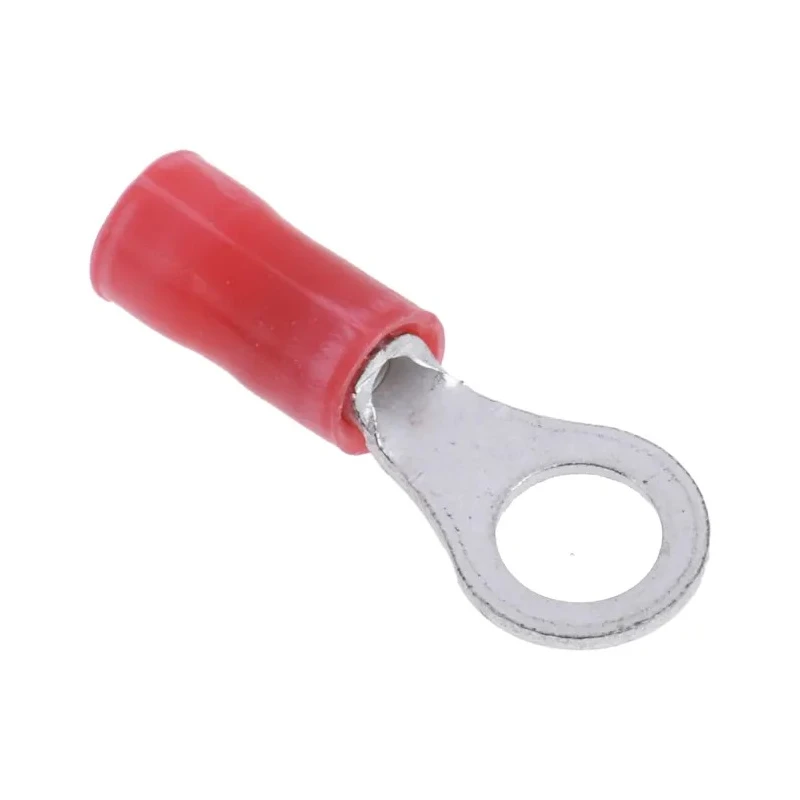

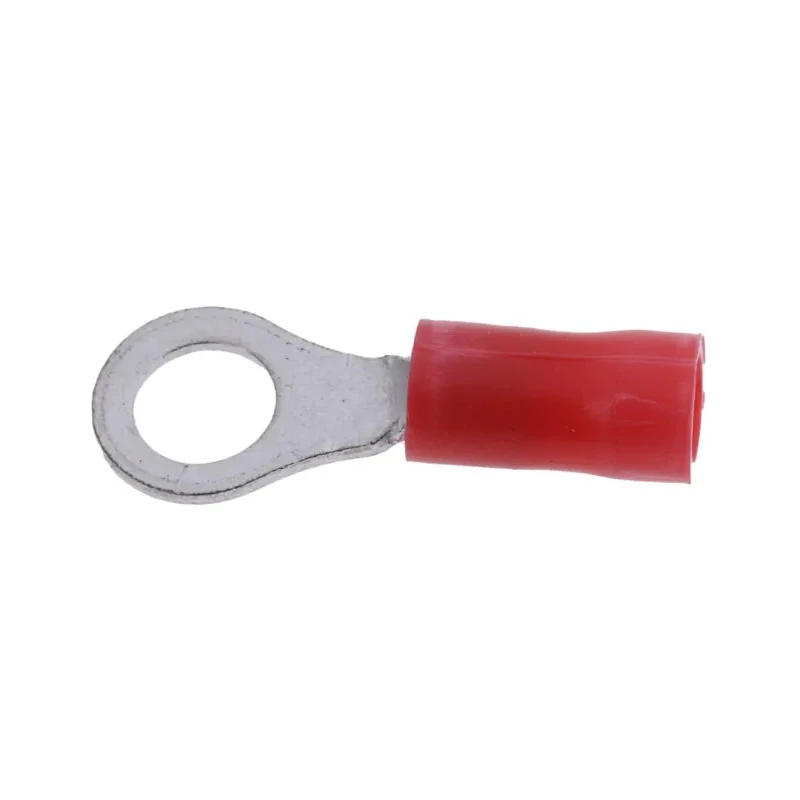

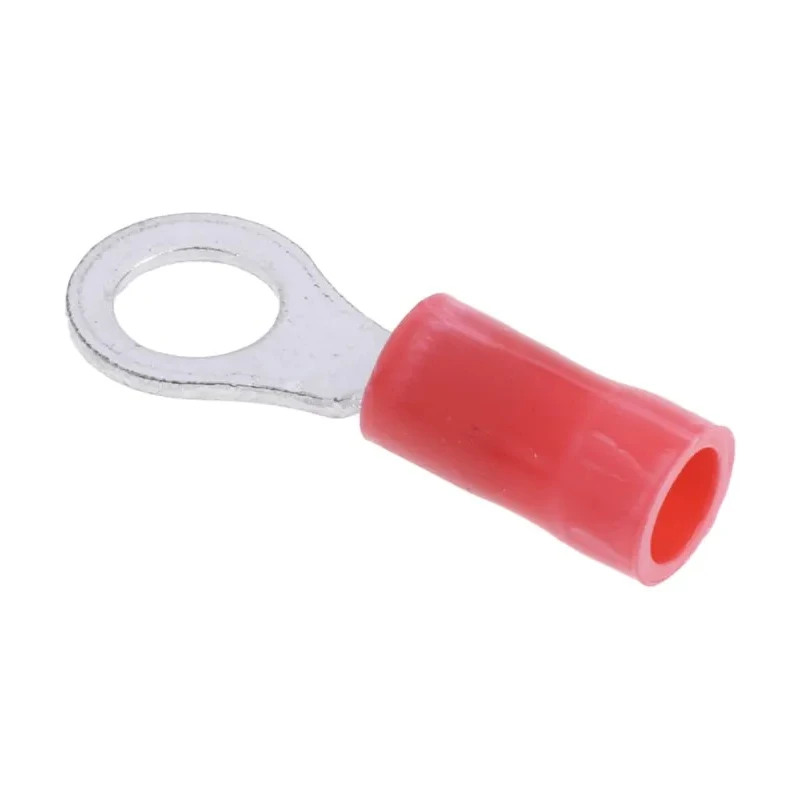

TE Connectivity PLASTI-GRIP Insulated Crimp Ring Terminal M5 Stud Size 22 AWG 16 AWG Wire Size Red 34149

TE Connectivity 34149 PLASTI-GRIP Insulated Crimp Ring Terminal is a high-quality electrical connector designed specifically for use with M5 stud sizes and wire gauges ranging from 22 AWG to 16 AWG. The product features a vinyl insulation sleeve with a 94V-0 flammability rating, ensuring high dielectric strength and excellent protection during electrical operation.

The ring terminal is made from high conductivity copper with a tin plating to enhance corrosion resistance and electrical conductivity. The closed barrel design includes inner serrations that maximize electrical contact and tensile strength after crimping, ensuring a secure and reliable connection in various industrial and electrical applications.

With an outer ring diameter of 7.92 mm and an inner ring diameter tailored to the M5 stud (5 mm), the terminal ensures precise fitting and stable attachment. The overall length of the terminal is 21.74 mm, providing ease of use during installation in complex wiring systems.

The vinyl insulation is color-coded red to signify wire sizes from 0.26 mm² (22 AWG) to 1.65 mm² (16 AWG), facilitating easy identification and compliance with wiring standards. The terminal supports a maximum operating temperature of 105°C, making it suitable for applications in industrial machinery, electrical panels, automotive wiring, and other environments demanding reliable electrical connections.

Constructed from tin-plated copper for enhanced conductivity and corrosion resistance. High dielectric strength 94V-0 rated vinyl insulation sleeve for electrical safety. Serrated inner barrel ensures superior tensile strength and electrical contact.

Dimensioned for M5 stud with precise inner and outer ring diameters. Wire size range: 22 AWG to 16 AWG (0.26 mm² to 1.65 mm²). Overall length: 21.74 mm for easy installation. Maximum operating temperature of 105°C supports high-demand applications.

Color-coded for quick wire gauge identification with red insulation.

This crimp Ring Terminal is ideal for use in electronics manufacturing, electrical maintenance and repair, automotive wiring and controls, and various industrial sectors requiring dependable wire termination and connection components.
