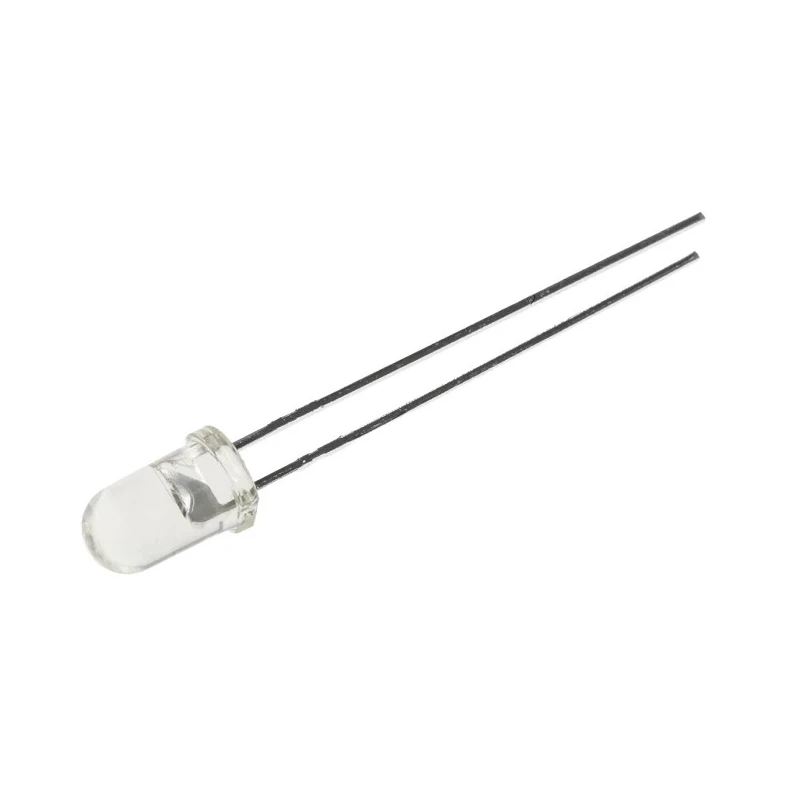

Broadcom 2.1 V Yellow LED 5 mm (T-1 3/4) Through Hole HLMP HLMP-C315

Broadcom HLMP-C315 is a yellow 5 mm (T-1 3/4) through hole LED with a forward voltage of 2.1 V and a maximum forward current of 30mA. This high-intensity LED utilizes a clear round lens measuring 5 x 8.71 mm, designed to deliver bright and focused illumination with viewing angles of 15° and 25°.

Part of Broadcom's HLMP series, this LED is engineered to provide uniform brightness and smooth radiation suitable for various electronic lighting applications such as backlighting front panels, indicator lights, switches, and signage both indoor and outdoor.

The LED achieves a luminous intensity of 147 mcd and emits light at a dominant wavelength of 585 nm, producing a vivid yellow color. Its through-hole mounting and standard T-1 3/4 package ensure easy integration into electronic assemblies.

HLMP-C315 LEDs are RoHS compliant, ensuring environmentally responsible manufacturing standards. This product stands out for its reliability, consistent color, and uniform light output.

This LED features a clear round lens with dimensions of 5 x 8.71 mm. It operates at a maximum forward current of 30mA for efficient performance. It has a viewing angle of 25° and 15° providing focused light emission. The LED delivers a luminous intensity of 147 mcd and a dominant wavelength of 585 nm.

Designed in a standard T-1 3/4 (5 mm) through hole package for easy mounting. This LED complies with RoHS standards and is part of the HLMP series from Broadcom. Ideal for applications like backlighting front panels, lighting switches, indoor and outdoor signage.

This LED is widely used in industrial, manufacturing, commercial electronic products, and signage applications requiring stable yellow light emission and long service life. The through-hole design supports both prototype and mass production soldering processes.
