| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 1.1mm |
| Length | 2.2mm |
| Model | 74LVC1G125GW,125 |
| Width | 1.35mm |
| Mount Type | Surface |
| Compatibility | Input LVTTL/TTL, Output LVCMOS |
| Output type | 3 State |
| Series | 74LVC1G125 |
| Input Type | Single Ended |
| Maximum Operating Temperature | 125°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Polarity | Non-Inverting |
| IC Type | Buffer & Line Driver IC |
| Number Of Channels | 1 |
| Operating Voltage | 1.65 to 5.5 V |
| Standards/Approvals | RoHS |
| Pin Count | 5 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | LVC |
| Logic Function | Buffer & Line Driver |
| Minimum Supply Voltage | 1.65V |
| Maximum High Level Output Current | -32mA |
| Maximum Propagation Delay Time @ CL | 5.5ns |
| Supply Current | 4μA |
| Maximum Low Level Output Current | 32mA |

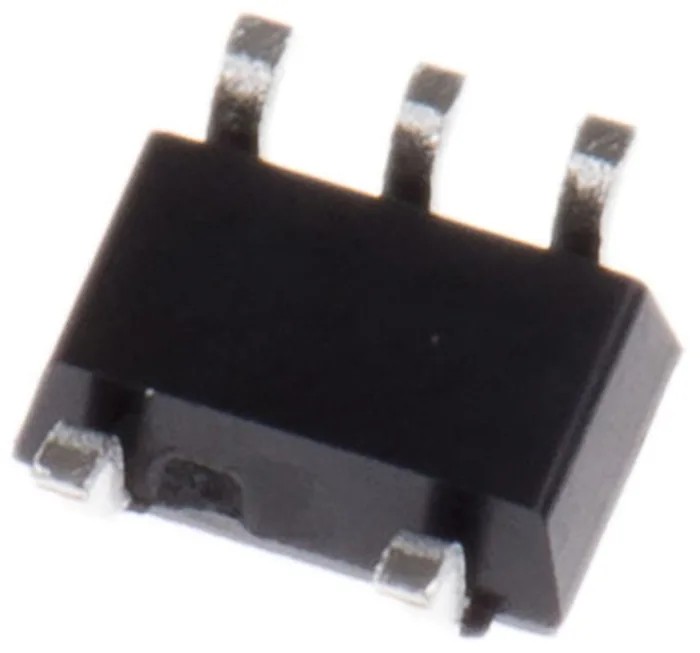

Nexperia 74LVC1G125GW,125 Buffer & Line Driver IC is a low-voltage CMOS logic device designed for interface and signal buffering applications. It features a single channel with 3-state non-inverting output, packaged in a compact 5-pin TSSOP surface mount form factor. This IC operates within a voltage range of 1.65 to 5.5 V, making it suitable for a wide variety of low voltage electronic designs.
The device supports single-ended input signals and provides 3-state outputs, allowing effective control over signal transmission and bus systems. With a maximum propagation delay of 5.5 ns, it enables high-speed data handling, essential for modern electronic devices.
Its rugged operating temperature range from -40°C to 125°C ensures reliable performance in industrial, automotive, and other demanding environments. The low supply current of 4 μA enhances power efficiency, reducing overall power consumption in embedded systems.
Designed for compatibility with LVTTL/TTL inputs and LVCMOS outputs, the 74LVC1G125GW,125 is ideal for use in interface circuits, line driving, and buffering tasks in electronics manufacturing, industrial control systems, and communication devices. Its RoHS compliance attests to its adherence to environmental regulations.
This IC is designed for buffer and line driver applications in electronic circuits. Supports single-ended input and 3-state output for flexible signal control. Operating voltage range extends from 1.65 V to 5.5 V, suitable for low-voltage applications.
Surface mount package (TSSOP) with a compact 5-pin layout for efficient PCB design. Non-inverting logic functionality ensures signal integrity in transmission. Maximum propagation delay time of 5.5 ns allows for fast signal processing.
Wide operating temperature range from -40°C to 125°C for industrial environments. Low supply current of 4 μA contributes to energy efficiency in circuits. Compatible with input LVTTL/TTL and output LVCMOS logic levels. RoHS compliant ensuring environmental safety for manufacturing and disposal.
