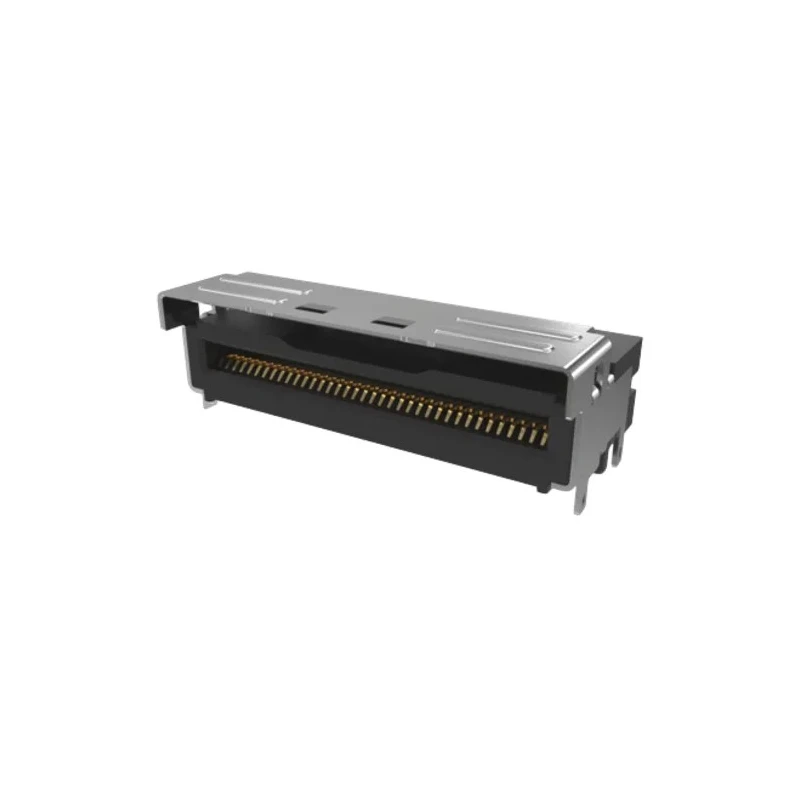

Amphenol Communications Solutions Mini Cool Edge IO Series Right Angle Edge Connector, Panel Mount, 74-Contacts G97R22312HR

Amphenol Communications Solutions G97R22312HR Mini Cool Edge IO Series right angle Edge Connector is engineered for high-performance data transmission and flexible system design in industrial and electronic applications. This panel mount connector features 74 contacts with a 0.6 mm pitch to enable compact and high-density interconnections.

Constructed with copper alloy contacts and gold over nickel plating, it ensures reliable electrical conductivity and durability. The thermoplastic housing provides robust protection while maintaining lightweight characteristics suitable for dense electronic assemblies.

Operating temperature ranges from -55°C to 85°C, this connector supports voltage ratings up to 300V and complies with stringent RoHS and UL standard certifications, ensuring safety and environmental compliance.

The Mini Cool Edge IO series supports PCIe card types, enabling high-speed data transmission up to 56Gb/s PAM4, compatible with PCIe Gen 4 and Gen 5 standards over 1.0 meter transmission distances. Its right angle orientation and panel mount design make it ideal for space-constrained electronic devices in data centers, telecommunications, and industrial computing equipment.

This connector supports both cable and card edge applications with a single, identical connector design, providing system design flexibility, scalability, and ease of maintenance. Its modular structure ensures cost-effectiveness and easy repair, particularly suited for compact data center systems requiring high signal integrity and performance.

Right angle orientation designed for panel mounting applications. Features 74 copper alloy contacts plated with gold over nickel for excellent conductivity. Compact 0.6 mm pitch supports high-density PCB layouts. Operates reliably between -55°C and 85°C ambient temperatures.

Voltage rating up to 300V compliant with RoHS and UL standards. Housing constructed from durable thermoplastic material. Supports PCIe card type connections in high-speed data systems. Designed and manufactured to support signal integrity for up to 56Gb/s PAM4 data transmission.

Compatible for cable and card edge applications within data center environments. Offers a modular, scalable design that simplifies system repair and configuration.

This product is suitable for electronics manufacturing, data centers, telecommunications infrastructure, and high-speed computing system assembly. For more connectors and electronic components, explore the Electronics & Electricals section at EnvMart.
