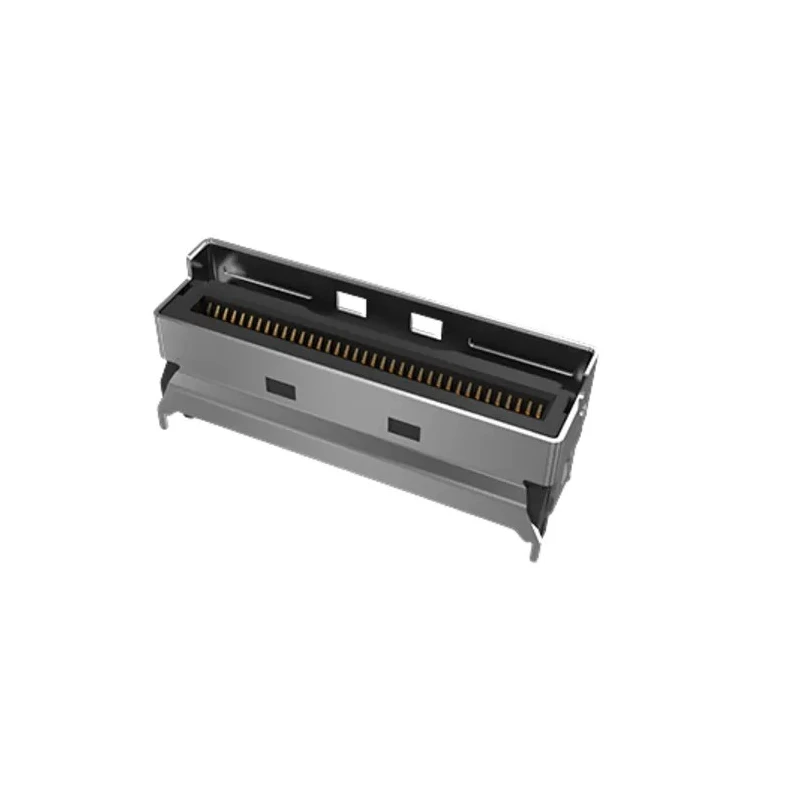

Amphenol Communications Solutions Mini Cool Edge IO Series Vertical Edge Connector Panel 74-Contacts 0.6 mm Pitch G42V12312HR
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 300V |
| Brand | Amphenol Communications Solutions |
| Orientation | Vertical |
| Model | G42V12312HR |
| Mount Type | Panel |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | Mini Cool Edge IO |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 0.6mm |
| Standards/Approvals | RoHS, UL |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 74 |
| Card Type | PCIe |
Key Features
- Features 74 gold-over-nickel plated copper alloy contacts for reliable connectivity.
- Designed for vertical panel mounting with a slim form factor for compact systems.
- Operates within a temperature range of -55°C to 85°C suitable for harsh environments.
- Supports 300V voltage rating ensuring safe and efficient operation.
- Compatible with PCIe card type and supports modular, scalable system designs.
- Housing made of thermoplastic for durability and insulation.
- Supports high-speed data transmission up to 56 Gb/s PAM4 over distances exceeding 1 meter.
Product Description
Amphenol Communications Solutions G42V12312HR Mini Cool Edge IO Series Vertical Edge Connector is engineered for high-performance electronic applications requiring reliable and compact edge connectors. Featuring 74 contacts with a fine 0.6 mm pitch, this panel-mount connector facilitates secure electrical connections in data center systems, industrial automation, and communications equipment.
The connector uses copper alloy for contact base metal with gold over nickel plating ensuring excellent conductivity and corrosion resistance. The thermoplastic housing material provides mechanical stability and electrical insulation under demanding environmental conditions.
Operating over a temperature range from -55°C to 85°C, it supports a voltage rating of 300V. Its vertical orientation and compact form factor enhance modularity and scalability in design, supporting both cable and card edge connection configurations.
This Mini Cool Edge IO connector series supports data transmission rates up to 56 Gb/s PAM4, making it compatible with PCIe Gen 4 and Gen 5 technologies, suitable for modern high-speed computing and networking applications.
Originating from China, this connector complies with RoHS and UL standards, assuring quality and safety. Its design enables cost-effective, easy repair, and maintenance, enhancing system reliability.
Features 74 gold-over-nickel plated copper alloy contacts for reliable connectivity. Designed for vertical panel mounting with a slim form factor for compact systems. Operates within a temperature range of -55°C to 85°C suitable for harsh environments.
Supports 300V voltage rating ensuring safe and efficient operation. Compatible with PCIe card type and supports modular, scalable system designs. Housing made of thermoplastic for durability and insulation. Supports high-speed data transmission up to 56 Gb/s PAM4 over distances exceeding 1 meter.
This product is ideal for industrial automation, communications, data centers, and electronic manufacturing applications requiring dependable edge connectors designed for high-speed and high-density environments.
Explore the comprehensive range of Edge Connectors and related electronics components available at EnvMart for your precise industrial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports high-speed data transmission rates up to 56 Gb/s PAM4 over distances exceeding 1 meter.
This model operates within a temperature range of -55°C to 85°C, making it suitable for harsh environments.
The connector features 74 contacts with a 0.6 mm pitch, designed for reliable connectivity.
It has a voltage rating of 300V, ensuring safe and efficient operation.
It is compatible with PCIe card types, supporting modular and scalable system designs.
The housing is made of thermoplastic, providing durability and electrical insulation.
The contacts are made of copper alloy, plated with gold over nickel for excellent conductivity and corrosion resistance.
It complies with RoHS and UL standards, assuring quality and safety.
This connector is designed for vertical panel mounting, which enhances its compact form factor.
It is ideal for industrial automation, communications, data centers, and electronic manufacturing applications requiring high-speed connections.
The pitch size of the contacts is 0.6 mm, facilitating compact and efficient connections.
The G42V12312HR model originates from China.
